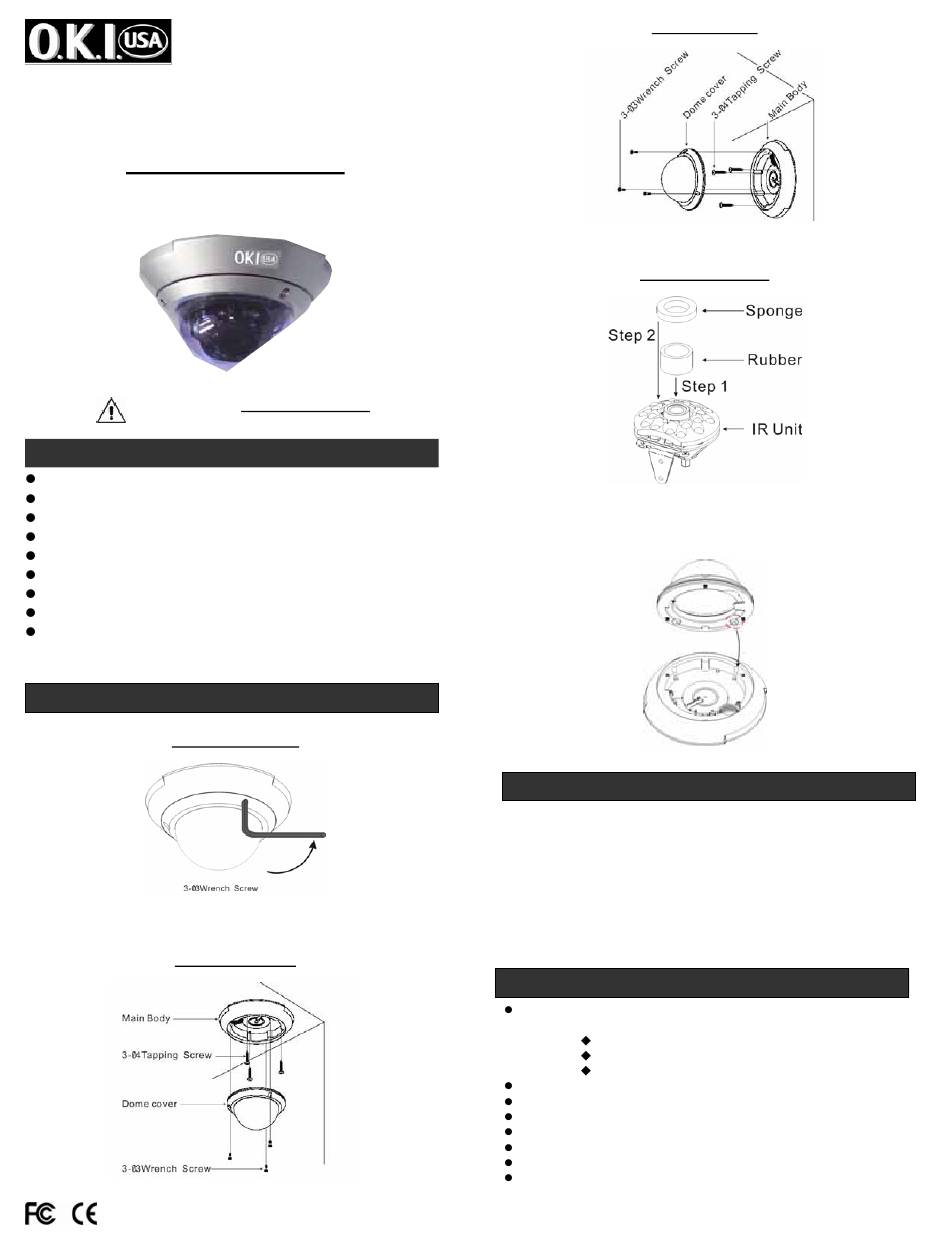

O.K.I. usa SIVD18-24843 Operational Manual

Operational Manual
Vandal Proof 3-AXIS IR Color Dome
Please read the Operational Manual
before attempting to use this product.

FEATURES

1/3" Hi-Res. CCD
480 TV Lines
18 IR LED / 850nm
4.3mm or 6.0mm Aspherical Lens
0.5 Lux @ F2.0 (0 Lux @ IR "on")
IR Distance up to 65ft / 20m
IP66 Rating
3-AXIS design for any angle
Dual Power 12V DC / 24V AC

INSTALLATION

Unremovable Screw
Ceiling Installation
SIVD18-24843
SIVD18-24860
SIVD18-24843P
SIVD18-24860P
Wall Installation
Fabricate IR Sponge
Caution: Please align the top cover boss into the holes of the camera
base as shown below.

OPERATIONS

Step 1: Connect the power cable and video signal line.
Step 2: Make sure the power is 12V DC / 24V AC and the monitor is on
the status of 75ohm.
Step 3: Turn on the power and you will see video display on the monitor.
* The top cover is designed with water proof protection, therefore when
opening it, it will be tight. You should use a screwdriver or other
appropriate tools to cross through the wiring duct and then push the top
cover up.

LIST OF COMPONENTS

One (1) SIVD18-24843/SIVD18-24843P or
SIVD18-24860/SIVD18-24860P Camera with power/video cable
One (1) Main Body
One (1) Dome Cover
One (1) IR Unit
One (1) 1/2" Soft-Flex Adaptor
One (1) Bare Lead Adaptor
Three (3) Tapping Screws
Three (3) Wall Anchors
Three (3) O Rings
One (1) Sponge
One (1) Operational Manual
SIVD18-24843_SIVD18-24860_rev03102008
