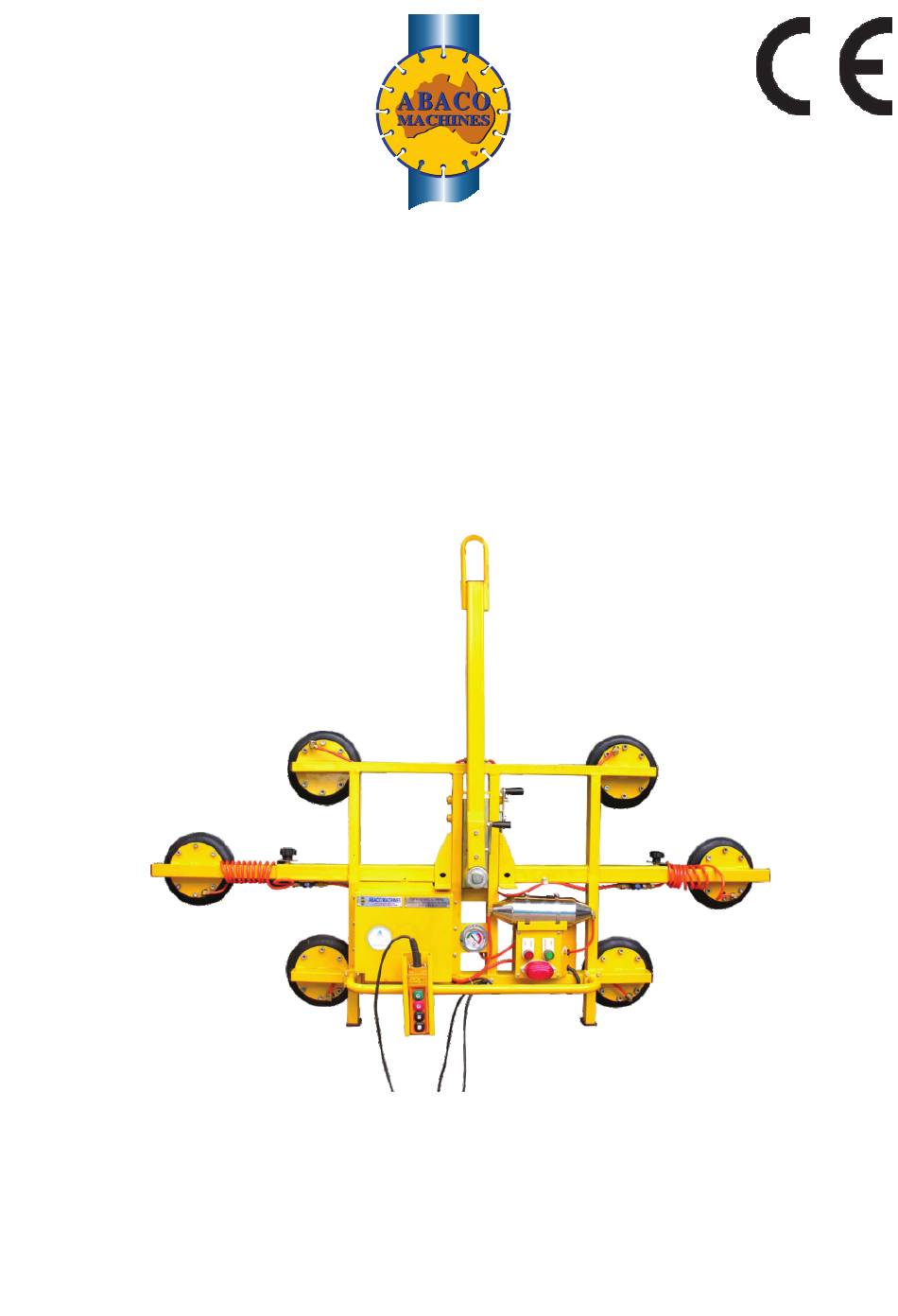

- Page 1 ABACO MACHINES OPERATION MANUAL ABACO GLASS VACUUM LIFTER (DVL480) ABACO MACHINES (USA) 14508 S. Garfield Ave., Paramount, CA 90723, USA Tel : 310-532-0366 Fax : 310-532-0499 Email : sales@abacomachines.com Website : www.abacomachines.com...
-
Page 2: Specification
INSTRUCTION MANUAL I.GENERAL: - Abaco Glass Vacuum Lifter is the equipment that is designed to use for lifting and moving large size glass. - This item has ability to rotate up to 90 degree vertically and horizontally. - There are two ways of suction cups positioning which fit well with various size of glass. - Page 3 INSTRUCTION MANUAL III. MAIN LIST:...
- Page 4 INSTRUCTION MANUAL POS. CODE DESCRIPTION QTY. DVL480-01 Weld base DVL480-02 Pulling handle DVL480-03 Swivel arm DVL480-04 Pin lock DVL480-05 Left bar DVL480-06 Right bar DVL480-07 Box electric DVL480-08 Lock DVL480-09 Clamp DVL480-10 Gas cylinder DVL480-11 Cover DVL480-12 Pad pin 1...
- Page 5 INSTRUCTION MANUAL POS. CODE DESCRIPTION QTY. DVL480-24 Left pad DVL480-25 Line shaft 2 DVL480-26 Stopper DVL480-27 Screw M5x10 DVL480-28 Extension spring DVL480-29 Hose clamp DVL480-30 Allen cap bolt M6x12 DVL480-31 Turn-knob DVL480-32 External circlip Ø14 DVL480-33 Allen cap screw M5x16 DVL480-34 Washer Ø20...
- Page 6 IV. INSTRUCTION FOR USE: 1. Before Operations: Caution: - Make sure the battery is fully charged before using the lifter. - Check the suction cups are free from damage. If it was damaged, make sure to replace it with a new suction cup. - Check there is no leakage of vacuum pressure.
- Page 7 INSTRUCTION MANUAL 4. Device Usage: A. UPRIGHT Glass Lifting Usage: Step1: Move the lifter next to the glass: CAUTION: -Adjust the suction cups to fit to the glass. (Refer to V.3. Adjust the suction cups position/page 17). -Make sure the lifter is at the gravity center of the glass.
- Page 8 INSTRUCTION MANUAL Step2: Move the lifer close to the glass surface. CAUTION: Make sure all of the suction cups touch the glass surface at the same time with even spacing. Step3: Press VACUUM (green light) button to suction the glass:...
- Page 9 INSTRUCTION MANUAL CAUTION: - After pressing the VACUUM button, the gauge indicator shall turn to the left, showing the vacuum pressure is generating. Make sure the gauge indicator shows between -0.8 bar to -1 bar. Step 4: Rotate the glass: - During proper suctioning the glass can be rotated 90 degrees (Refer to V.2.
- Page 10 INSTRUCTION MANUAL Step 5: Move the glass to the desired location: CAUTION: - When lowering down the glass, handle it carefully and slowly with best cares. - Do not unlock the lock lever to adjust the angle when suctioning the glass. Step 6: Press RELEASE button (for about 5 seconds) and move the lifter away from the glass: Caution: Make sure the two gauge indicators take back to 0 before...
- Page 11 INSTRUCTION MANUAL B. HORIZONTAL Glass Lifting Usage: -Before suctioning the glass, adjust the suction cups in position downward in order to suction the glass horizontally. (Refer to V.1. Adjust the suction cups from Upright to Horizontal/page 15). Step1: Move the lifter near to the glass. Caution: - Adjust the suction cups to fit to the glass.
- Page 12 INSTRUCTION MANUAL Step2: Move the lifter close to the glass surface: Caution: Make sure all of the suction cups touch the glass surface at the same time with even spacing. Step3: Press VACUUM (green light) button to suction the glass:...
- Page 13 INSTRUCTION MANUAL CAUTION: - After pressing the VACUUM button, the gauge indicator shall turn to the left, showing the vacuum pressure is generating. Make sure the gauge indicator shows between -0.8 bar to -1 Bar. Step 4: Move the glass: - During proper suctioning, the glass can be rotated horizontally 90 degrees (Refer to V.2.
- Page 14 INSTRUCTION MANUAL Step 5: Move the glass to the desired location: CAUTION: - When lowering down the glass, handle it carefully and slowly with best cares. - Do not unlock the lock lever to adjust the angle when suctioning the glass.
- Page 15 INSTRUCTION MANUAL Step 6: Press RELEASE button (for about 5 seconds) and move the lifter away from the glass: Note: Make sure the two gauge indicators take back to 0 before shut the lifter out.
- Page 16 INSTRUCTION MANUAL V. Appendix: V.1. Adjust the suction cups from Upright to Horizontal: - Pull down the lock lever to release, then carefully incline the cups to horizontal position and adjust the angle as the picture below.
- Page 17 INSTRUCTION MANUAL V.2. Rotate Suction Cups - Pull the handgrip lock (as shown in the picture) - Next, rotate the glass vacuum lifter follow to your requirement. Note: Pin-clock automatically install into hole position for angle adjustment.
- Page 18 INSTRUCTION MANUAL - Loosen turn-knob (anticlockwise direction). - Move suction cup follow to requirement place, tighten turn-knob (clockwise direction)
-
Page 19: Maintenance And Inspection
- Always reserve replacement parts for maintenance. VII. WARRANTY: At the time of delivery, it is necessary to inspect the Abaco Glass Vacuum Lifter to make sure that it has not been damaged during shipment. Any claims must be submitted within 8 days from the date of delivery.
