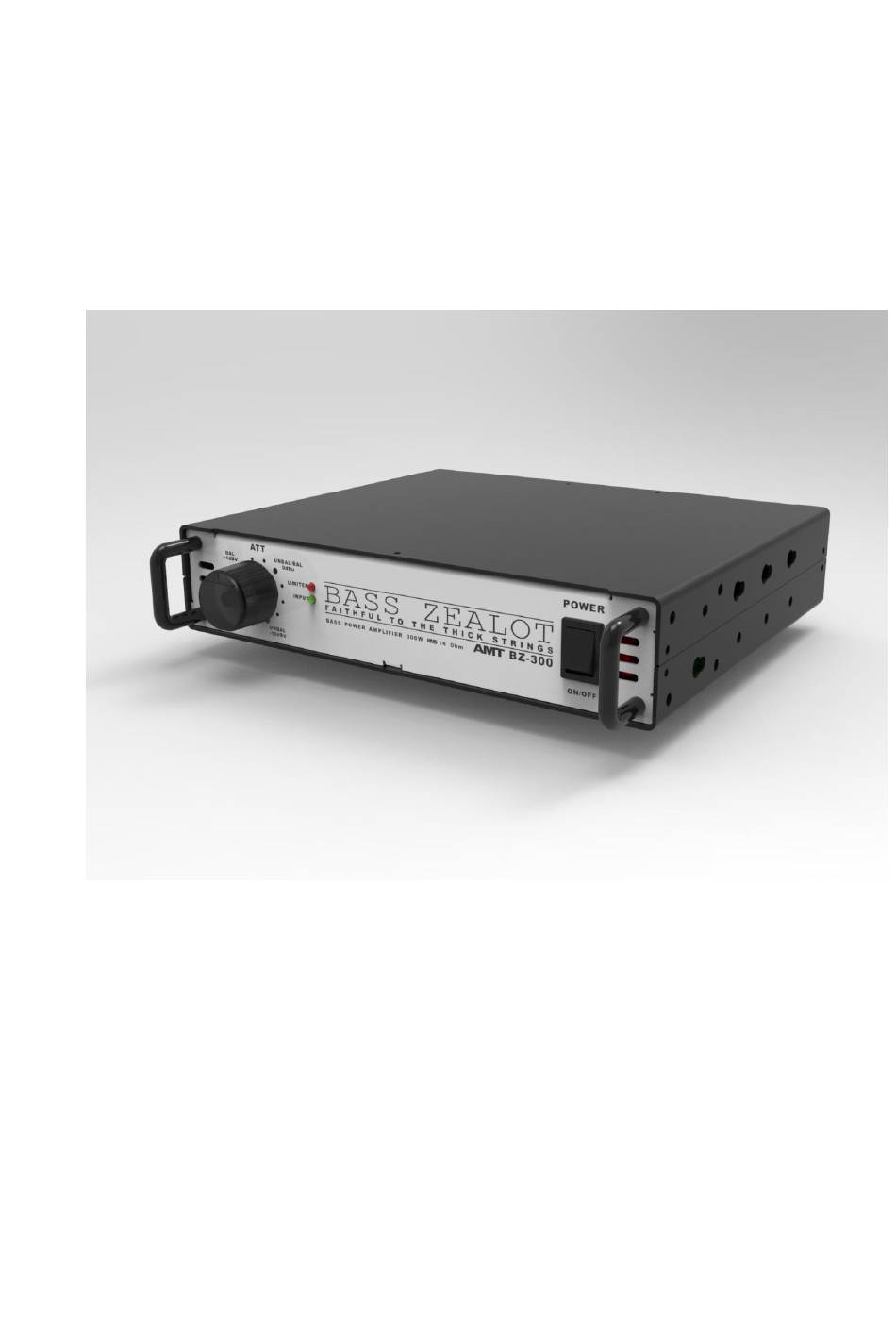

- Page 1 AMT Bass ZEALOT BZ-300 Bass Power Amplifier USER'S MANUAL Preliminary...
-
Page 2: Safety Instructions
This a compact D-class audio amplifier with the output power up to 300 Watts, a switching power supply with a wide range of AC mains voltage. The power amplifier is a good companion to the AMT Bass Preamps (AMT BC-1, AMT A-Bass, O-Bass ) or to the preamps of other respected producers. -
Page 3: The Front Panel
2. The Front Panel 1. INPUT SENSITIVITY - an attenuator of the input signal. It is the 12 positions switch. The standard voltage values and MUTE are shown, the division price is approximately 2dB. 2. INPUT SIGNAL - a dynamic LED indicator of the input signal. 3. - Page 4 10. FAN. Make sure that the fan is not obscured in any way. 11. LINK. The output XLR male connector to send a signal to other devices (other AMT BG- 300, mixer, sound card etc). The output signal level on this connector is the same as on the INPUT connector (13), the output signal is just a buffered replica of the input signal.
- Page 5 DIMENSIONS (HxWxD): 44,4 (мм) x 220 (мм) x 166 (мм) NOTE: with special locks, two AMT BZ-300 can be combined in one construction that fits 1U rack Weight: 1,3 kg without package (approximately) https://amtelectronics.com/ https://amt-sales.com...
