Summary of Contents for Old Hickory VPO-54

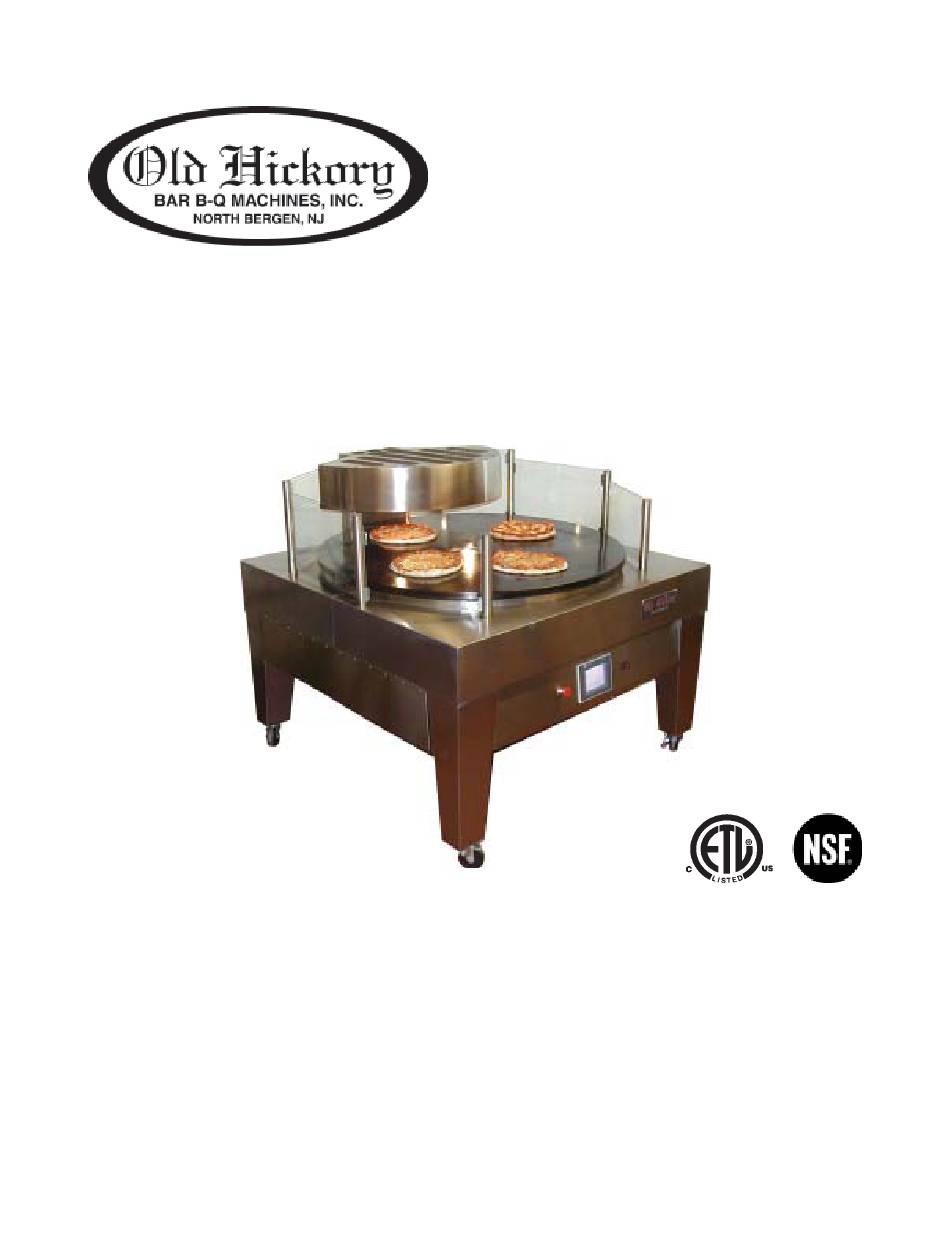

- Page 1 Models VPO-54 VPO-42 Installation and Operating Instructions RETAIN THIS MANUAL FOR FUTURE REFERENCE Visual Pizza Oven Hickory Industries, Inc. 4900 Westside Avenue, North Bergen, NJ 07047 Tel: 201-223-0050 Fax: 201-223-0950 Website: www.hickorybbq.com 1 of 14...
- Page 2 Please copy, cutout and place in a prominent location. What To Do If You Smell A Gas Odor Natural gas is lighter than air, and it has a very high ignition temperature. For your protection, The Gas Company adds a distinctive odor to natural gas, so leaks are easily detected.
- Page 3 INTENDED FOR OTHER THAN HOUSEHOLD USE OVEN MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES IMPOR IMPORT T T T T ANT INSTR IMPOR ANT INSTR ANT INSTR ANT INSTRUCTIONS UCTIONS UCTIONS UCTIONS IMPOR IMPOR ANT INSTR UCTIONS After the gas supply has been connected to your unit, it is extremely important to check piping for possible leaks.
-
Page 4: Electrical Installation
NOTICE: In order to be able to service this appliance, it must be installed with the casters supplied, a connector complying with ANSI 22 7 .69 CSA 6.7 6 and a quick-disconnect device complying with ANSI 227.47 CSA 6.9. It must also be installed with restraining means to guard against transmission of strain to the connector as specified in the appliance manufacturer’s instructions. -
Page 5: Installation Instructions
Index Installation Instructions Cleaning & Maintenance Receiving Stainless Steel Surfaces Clearances Deck Maintenance Setup Lights Gas and Electrical Connections Ignitors Pizza Deck Care Glass Burner Lighting Procedure Parts Breakdown Aeration Adjustments Operating Instructions For North America: 120V, 1 Phase, 60 Hz. Unit comes with a NEMA 5-15 Plug Burner Lighting Procedure Type of Gas... -
Page 6: Gas And Electrical Connections
Drawing of right side and back of the oven Six Foot Cord & Plug 3/4” Gas Connection SETUP: The oven must be installed in a well-ventilated area. Your oven is packed standing on its casters. The skid may be left under the oven for convenience in further handling. Unpack carefully to avoid damage to the oven. -
Page 7: Burner Lighting
Use a pipe joint compound that is resistant to the action of Natural and liquefied petroleum gases when making gas connections. For Propane gas, use a least ½. pipe or tubing with a 5/8 inside diameter. For Natural gas, use ¾. pipe. The appliance must be isolated from the gas supply piping system by closing its manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than ½. -
Page 8: Breaking-In
Operating Instructions If gas odor is detected at any time, immediately shut off the top button on the oven and shut off the gas supply valve to the oven. Do not permit any open flames in the area of the oven. -
Page 9: Alarm Screen
Home Screen: This screen is your HOME screen. This allows you to start preheating your oven, check for any alarms and adjust your cooking parameters. Pressing stop on this screen will do nothing. Pre-Heat: Pressing the “Pre-Heat” button will allow you to Pre-Heat the oven using your previously entered cooking parameters. -
Page 10: Adjust Screen
Adjust Screen: Pressing the “Adjust” button will guide you to the adjustment screen. This will allow you to set the following: Pre-Heat Temperature, Top Burners intensity settings (Low Medium and High). Temperature offset should remain at 75. Top burner intensities can me modulated. High can be 100% or 85% These intensities will vary on your dough, sauce, cheese and toppings. -
Page 11: Cleaning And Maintenance
Cleaning & Maintenance Stainless Steel Surfaces All stainless steel surfaces should be cleaned and polished on a daily basis. If spillage occurs, ensure that the spill is cleaned immeadiately otherwise the spill can bake on the stainless steel surfaces. Deck Maintenance The steel deck is 5/16”... - Page 12 Parts Breakdown P007 & P008 P001 P002 P003 P009 P006 P016 P0011 & P012 P0017 & P018 12 of 14...
- Page 13 Electrical Diagram 13 of 14...
-
Page 14: Gas Conversion
Gas Conversion WARNING This conversion shall be performed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, an explosion or production of carbon monoxide may result causing property damage, personal injury or LOSS of life.
