Summary of Contents for Chefwave Swap Pot CW-AFPC01

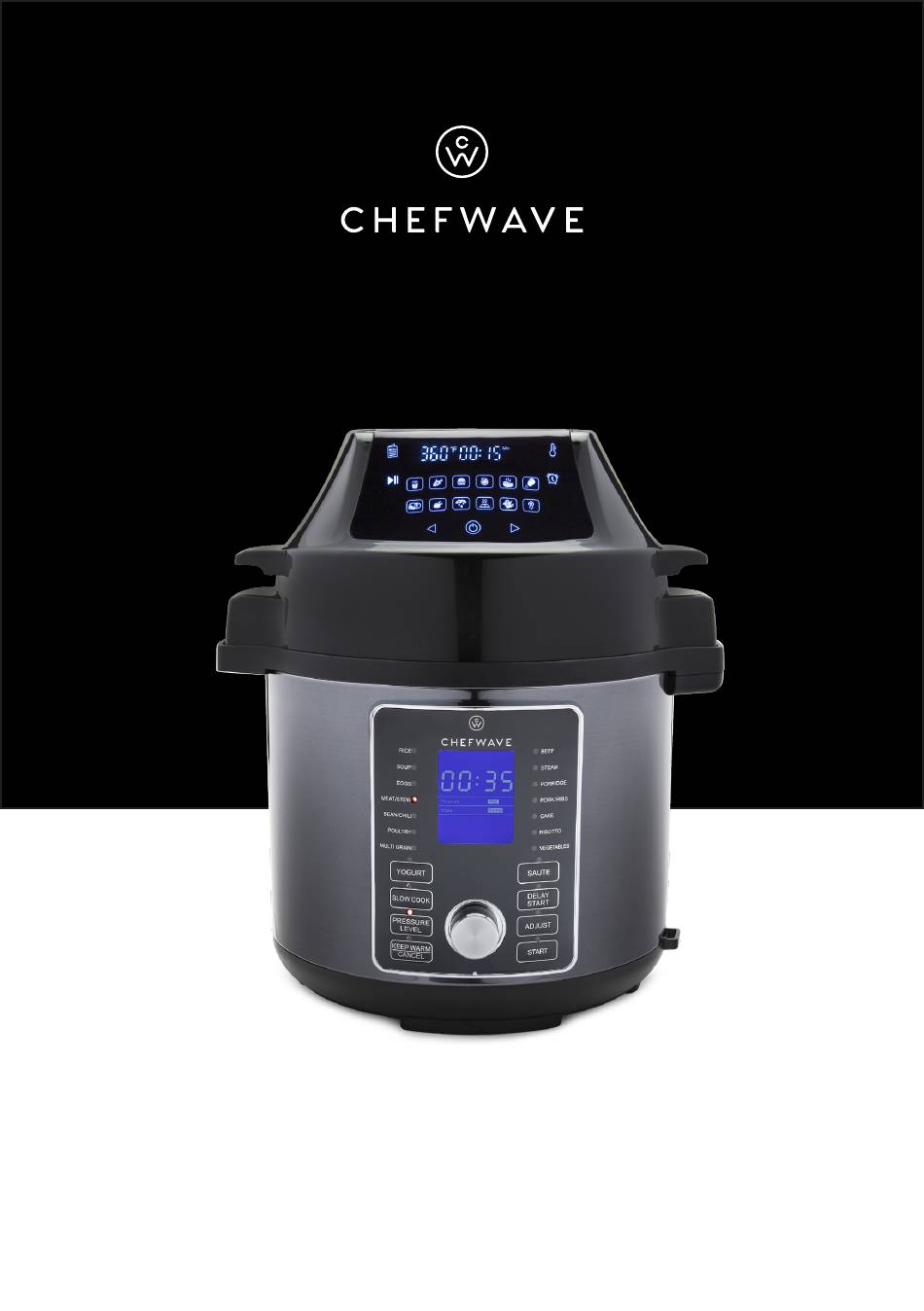

- Page 1 SWAP POT AIR FRYER PRESSURE COOKER MODEL CW-AFPC01 Please read this manual carefully before using the air fryer pressure cooker. Save these instructions.
- Page 2 We hope you enjoy your new ChefWave™ Swap Pot Air Fryer Pressure Cooker. Sincerely, The ChefWave™ Team...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Instructions Parts & Accessories Using the Accessories Air Fryer Digital Control Panel Pressure Cooker Digital Control Panel Before First Use Cooking Tips Instructions for Air Fryer Cooking Instructions for Pressure Cooking Pressure Cooking Settings Pressure Release Instructions for Non-Pressure Cooking Settings Function Settings for Pressure Cooker Function Settings for Air Fryer... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be observed. Please read and follow these warnings and instructions: • This appliance is intended for household countertop use only. Do not use this appliance for commercial purposes. Do not use it outdoors. Using it for unintended purposes will invalidate the warranty. - Page 5 • The appliance should always remain unplugged from the outlet when not in use. After using the appliance, turn off the power and gently unplug it from the outlet. Do not jerk or pull the power cord. Unplug the unit and let it cool down for 30 minutes before cleaning or storing it.
-
Page 6: Parts & Accessories
PARTS & ACCESSORIES Main Unit 2. Air Fryer Unit 3. Pressure Lid 4. Fry Basket 5. Roast Rack 6. 6-Quart Removable Cooking Pot Spoon 8. Measuring Cup 9. Condensation Collector 10. Power Cable... -
Page 7: Using The Accessories
USING THE ACCESSORIES The Swap Pot comes with two lids: the pressure lid and the air fryer unit. Attach the lid you wish to use to the main unit. AIR FRYER UNIT PRESSURE LID MAIN UNIT PRESSURE COOKER AIR FRYER... - Page 8 The fry basket (left) and roast rack (right) can be inserted into the 6-quart pot to roast and fry foods using the air fryer unit. When the air fryer unit is attached, the pressure cooker functionality will be disabled. When the pressure cooker lid is attached, the front LCD control panel will light up, indicating that the pressure cooking functions are enabled.
-
Page 9: Air Fryer Digital Control Panel
AIR FRYER DIGITAL CONTROL PANEL • The air fryer control panel features 12 presets: Chips, Fish, Hamburger, Pizza, Beef Steak, Chicken Leg, Bake, Chicken, Dehydrate, Broil, Corn, and Defrost. • When the air fryer lid is attached, the blue lights of the LCD panel will flash. Then, the On/Off button at the bottom of the panel will continue flashing. -
Page 10: Pressure Cooker Digital Control Panel
PRESSURE COOKER DIGITAL CONTROL PANEL 1-17. Cooking functions 18. Delay Start button 19. Pressure Level button 20. Adjust button 21. Keep Warm/Cancel button 22. Start button 23. Function knob 24. LCD display When the pressure cooker lid is attached, the Swap Pot will default to Standby Mode. - Page 11 Control Panel LCD Display The LCD display uses icons, words, and numbers to depict time, pressure levels, modes, cooking progress, and messages. Preheating Icon Less, Normal, or More (Preheating, Cooking, or Keep Warm) LCD Display Messages The cooker is plugged in, but no programs are selected. Ready to use, and you can choose a program.
-
Page 12: Before First Use
BEFORE FIRST USE Read all warning labels on the packaging and all safety instructions before use. 2. Unpack the appliance and remove all packaging materials, including any materials found between the inner pot and the heating plate. Before Using the Pressure Cooker Open the lid by holding down the red button on the handle and turning the handle counterclockwise until the arrow icon on the lid is aligned with the unlock icon on the exterior. -
Page 13: Cooking Tips
COOKING TIPS Air Fryer Safety Precautions • Be careful when removing the air fryer unit after cooking. It will be hot. • Do not overfill the air fryer unit; doing so can interfere with the fan. Pressure Cooker Safety Precautions •... -
Page 14: Instructions For Air Fryer Cooking
INSTRUCTIONS FOR AIR FRYER COOKING The Swap Pot lets you swap lids between the air fryer lid and the pressure cooking lid. Use the pressure cooker function to tenderize your food before using the air fryer lid to crisp your meal. NOTE: If you wish to use the pressure cooker function after air frying, you must wait at least 10 minutes for the Swap Pot to cool. -
Page 15: Instructions For Pressure Cooking
The unit will beep when cooking is complete. INSTRUCTIONS FOR PRESSURE COOKING You can pressure cook with the following programs: Meat/Stew, Bean/Chili, Soup, Rice, Poultry, Pork/Ribs, Multigrain, Porridge, Steam, Eggs, Cake, Risotto, and Vegetables. The other programs offered by the pressure cooker do not use pressure. - Page 16 The optional Delay Start function allows you to start cooking at a designated time in the future rather than immediately. You can delay the start time up to 24 hours, and the time can be adjusted in 10-minute increments. To use this function, press the Delay Start button and use the Function knob to set the desired delay time.
-
Page 17: Pressure Cooking Settings
PRESSURE COOKING SETTINGS The following settings can be adjusted after you have selected a cooking function. Note that some settings cannot be adjusted once cooking has begun. Press Keep Warm/Cancel if you need to start over. Less, Normal, More Press the Adjust button and turn the Function knob to cycle through the selections for “less,”... -
Page 18: Pressure Release
PRESSURE RELEASE There are two pressure-release methods: quick release and natural release. The method that you should use depends on your recipe. Most recipes will indicate which method to use. Quick-Release Method This method releases pressure quickly in the form of steam. When cooking is complete, turn the steam release handle to the venting position to release the pressure. -
Page 19: Instructions For Non-Pressure Cooking Settings
INSTRUCTIONS FOR NON-PRESSURE COOKING SETTINGS Use the following programs to cook without pressure: Slow Cook, Sauté, Keep Warm, and Yogurt. The Pressure Level button is disabled for non-pressure cooking functions. Using the Sauté Function You can sauté or simmer food inside the inner pot using the Sauté function. Leave the lid off when you are sautéing, and do not leave the appliance unattended. - Page 20 4. Press the Slow Cook button. To change the time, use the Adjust button and the Function knob to cycle through the selections for “less,” “normal,” and “more.” The default cooking time is 4 hours, though you can use the Function knob to adjust the cooking time from 30 minutes to 20 hours.
-
Page 21: Function Settings For Pressure Cooker
Using the Keep Warm Function The Keep Warm function is turned on by default and engages automatically when cooking has finished. You can press the Keep Warm/Cancel button to turn it off if desired. You can also use this function independently to warm up food by pressing the Keep Warm/Cancel button. - Page 22 Less 4 min. Eggs 1 to 99 minutes Normal 5 min. More 6 min. Less 20 min. 1 minute to 4 Meat/Stew Normal 35 min. hours More 45 min. Less 25 min. 1 minute to 4 Bean/Chili Normal 30 min. hours More 40 min.
- Page 23 MANUAL DEFAULT FUNCTION TIME MODE SETTING RANGE Less 8 min. Beef 1 to 99 minutes Normal 15 min. More 18 min. Less 12 min. 1 minute to 6 Steam Normal 30 min. hours More 35 min. Less 4 min. Porridge/Oats 1 to 99 minutes Normal 5 min.
- Page 24 Less 8 min. Vegetables 1 to 99 minutes Normal 15 min. More 18 min. Less 12 min. 1 minute to 6 Yogurt Normal 30 min. hours More 35 min. Less 4 min. Slow Cook 1 to 99 minutes Normal 5 min. More 6 min.
-
Page 25: Function Settings For Air Fryer
FUNCTION SETTINGS FOR AIR FRYER The cooking times specified in this chart do not include the amount of time it takes for the cooker to reach the optimal temperature and pressure, nor the amount of time that it takes for pressure to release after cooking is complete. DEFAULT MANUAL TIME DEFAULT... -
Page 26: Cooking Chart
COOKING CHART WEIGHT MEAL (MIN- TIME TEMPERATURE COMMENTS MAX) Thin Frozen 15 to 16 1 ¼ - 3 cups 400°F Fries minutes Thick Frozen 15 to 20 1 ¼ - 3 cups 400°F Fries minutes Homemade 1 ¼ - 3 ¼ 10 to 16 400°F Add ½... - Page 27 Chicken 10 to 15 ¼ - 1.1 lb. 360°F Breast minutes 15 to 20 Spring Rolls ¼ - ¾ lb. 400°F minutes Frozen 10 to 15 Chicken ¼ - 1.1 lb. 400°F minutes Nuggets Frozen Fish 6 to 10 ¼ - 1.1 lb. 400°F Sticks minutes...
-
Page 28: Cleaning The Cooker
CLEANING THE COOKER Always unplug the appliance and allow it to cool completely before cleaning the appliance and its parts. Never use harsh chemicals or abrasive sponges on the appliance or its parts. Make sure everything is dried completely before use. Inner Pot, Pressure Lid, and Sealing Ring: The inner pot and sealing ring are dishwasher safe, though hand washing is recommended. -
Page 29: Error Codes
ERROR CODES ERROR CODE CAUSE SOLUTION Unplug the power cord and replug after Temperature sensor 10 minutes. If the error open circuit code remains, contact the manufacturer for a replacement part. Unplug the power cord and replug after Temperature sensor 10 minutes. -
Page 30: Troubleshooting
TROUBLESHOOTING ISSUE CAUSE SOLUTION Turn the steam-release Steam release handle is handle to the sealing Steam continuously in the venting position position escapes from the steam-release valve Contact customer Pressure control failure service Reposition and lock the pressure cooker lid or air fryer unit. - Page 31 Release pressure using Cooker contains the quick-release Lid will not open pressure method or natural- release method Sealing ring is not Remove and reinsert properly installed the sealing ring Sealing ring has damage Replace the sealing ring Lid is leaking steam from its sides Sealing ring has food Wash the sealing ring...
-
Page 32: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL CW-AFPC01 POWER AC 120V SUPPLY 60 HZ Air Fryer: 1500W POWER RATING Pressure Cooker: 1000W Air Fryer: 120°F-400°F OPERATING TEMPERATURE Pressure Cooker: 230°F-244°F DISPLAY LED Touchscreen INNER POT 6 qt. VOLUME INNER POT 6.2” x 9.4” CALIBER WEIGHT 13.2 lb. -
Page 33: Guarantee
CHEFWAVE™ GUARANTEE This appliance is guaranteed against defects in materials and workmanship for a period of 1 year from the date of purchase. Under this guarantee, the manufacturer will repair or replace any parts found to be defective, provided that the product is returned to one of the authorized service centers. This... - Page 34 NOTES...
- Page 35 NOTES...
