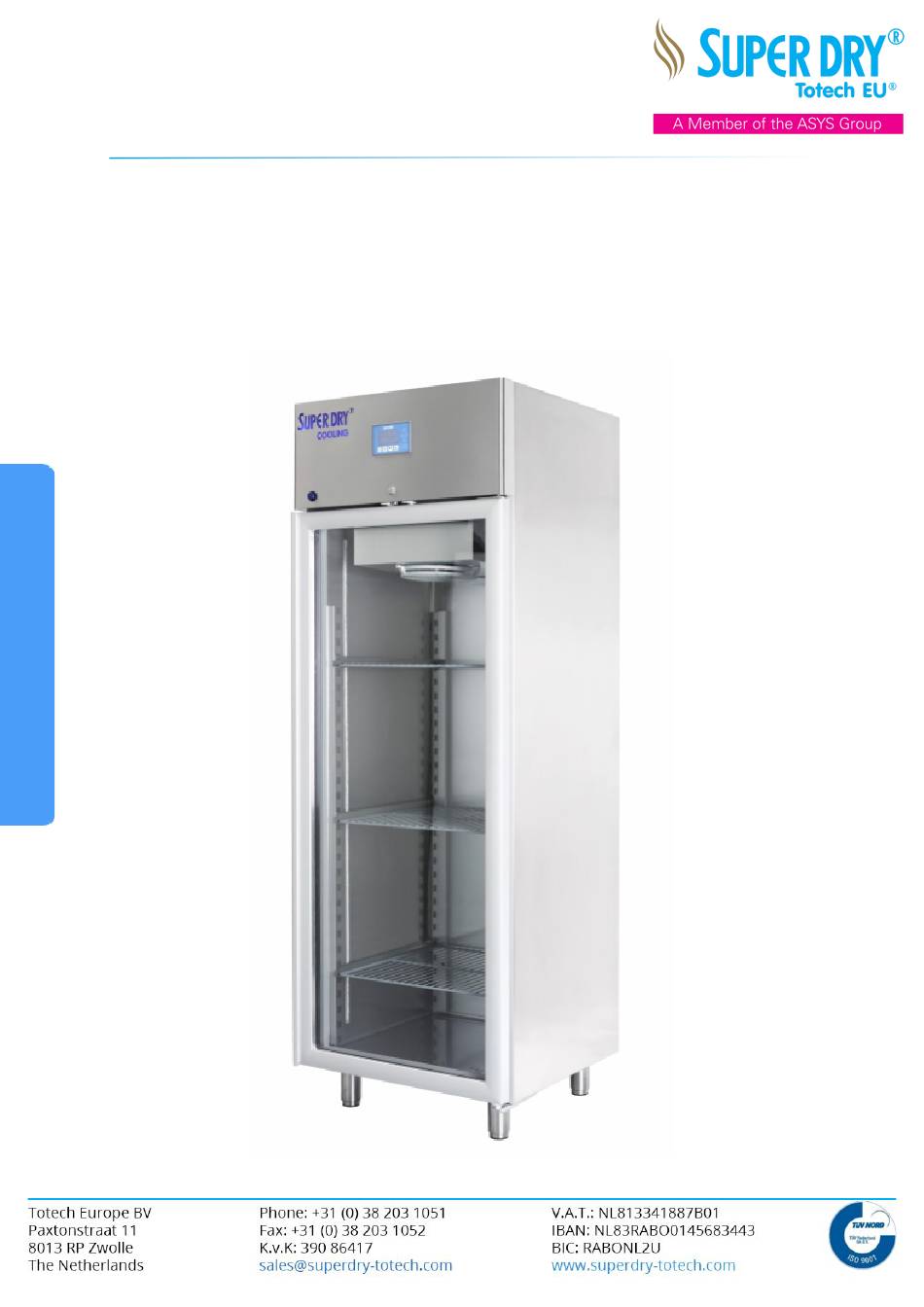

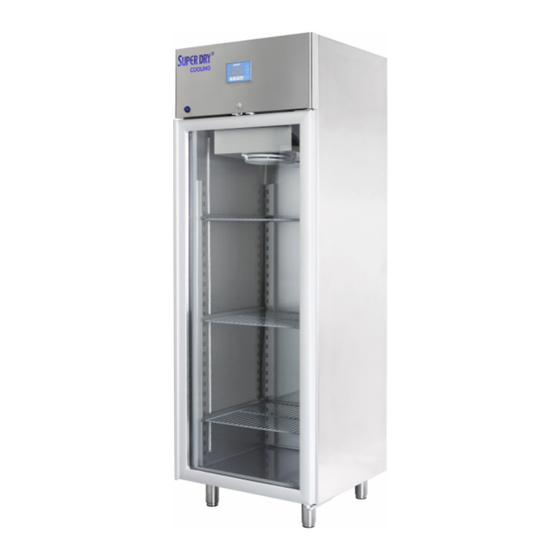

  • Page 1 XSDC 601-02 Operation manual XSDC 601-02...
  • Page 2: Table Of Contents

    XSDC 601-02 Contents 1. Safety Information 1.1 Adherence to information provided in the Operation Manual 1.2 Operator Obligations 1.3 Personnel Obligations 1.4 Organizational Measures 1.5 Information related safety precautions 1.6 Intended use 1.7 Hazards related to cabinet handling 1.8 Protective devices 1.9 Electrical hazards 1.10 Hazards arising from hot surfaces 1.11 Maintenance, Service and troubleshooting...
  • Page 3 XSDC 601-02 7. Calibration 8. Maintenance 9. Troubleshooting 9.1 For malfunction 9.2 Measuring faults 9.3 Communication error via Ethernet 9.4 Display indicates “BM no resp Press ESC” 9.5 No indication on Display 9.6 Logic module and extension module checking 9.8 Temperature too high 10.
  • Page 4: Safety Information

    XSDC 601-02 1. Safety Information 1.1 Adherence to information provided in the Operation Manual Being familiar with the basic safety information and regulations is essential for safe handling and failure-free operation of this device. ✓ This Operation Manual contains the most important information required in order to safely operate the device.
  • Page 5: Intended Use

    XSDC 601-02 1.6 Intended use The device is exclusively intended to cool atmospheric air. Any deviating or exceeding deployment is considered unintended use. Totech EU will not assume any liabilities for damage resulting therefrom. The device must not be mounted in and/or exposed to the intake of liquids (e.g. filled tanks or sumps, flooded areas etc.).
  • Page 6: Maintenance, Service And Troubleshooting

    XSDC 601-02 1.11 Maintenance, Service and troubleshooting ✓ The device is maintenance-free. ✓ Ensure to inform operators prior to the commencement of maintenance activities. ✓ For repair works, switch device to neutral and secure main switch against unexpected restart. ✓ Apply restart warning sign. ✓...
  • Page 7: Specification

    XSDC 601-02 2. Specification 2.1 Use Cooling cabinets with logging functionalities are deployed for cooling functions in process engineering, air-conditioning technology, and cooling in production and storage spaces, inside which products and installations require low temperatures. Cooling cabinet with integrated automatic defrosting mechanism has been specifically designed for being deployed in cooling storage cabinets, in which logging of history data of the temperature is of specific importance.
  • Page 8: Startup

    XSDC 601-02 3. Start-Up 3.1 Handling with hoisting gear Ensure to lift the device by means of fork lifts or with secured harnesses. Do not use pipe connections or other attachment parts as lifting points. 3.2 Installation With respect to the device's installation, please adhere to the following: ✓...
  • Page 9: Settings

    XSDC 601-02 4. Settings 4.1 Access to the menu Pressing the [SET]-button once will open the setup menu. It allows for defining respective setting by means of the buttons [+] and [-]. Briefly pressing the [SET]-button again will open the following reference input menus in sequence: ✓...
  • Page 10: Door Alarm

    XSDC 601-02 4.9 Door alarm The alarm delay for a door alarm has been preset to 90 seconds, and does not allow for modification. In the event doors are opened for longer periods, the alarm will activate an acoustic signal, the display backlight will change to blinking red, and switch on the signal lamp flashing red, if provided.
  • Page 11 XSDC 601-02 Procedure on how to change the IP address: For this procedure use only the arrow keys on the right side of the screen From the standard screen press: ✓ Arrow down ✓ ESC ✓ Arrow down ✓ Select ​ L ogo settings​ ⇒ ​ O K ✓...
  • Page 12: Setting The Time And Date

    XSDC 601-02 4.12 Setting the time and date From the standard screen press: ✓ Arrow down Check the current time and date in the display If it is not ok please follow the next steps: ✓ ESC ✓ Select ​ L OGO! settings ✓...
  • Page 13: Webserver

    XSDC 601-02 6. Webserver The device has an integrated web server which allows you to operate the drying unit from a conventional PC or a mobile device via the IP address of the LOGO! Device. With this method you can access the LOGO! Basic module using an internet-connected device (conventional PC, tablet or smartphone with web browser function).
  • Page 14: Display Logo! System Information

    XSDC 601-02 c) Click or tap the button. The LOGO! web server guides you to the welcome page. Note: Use the following credentials to logon to the web interface: Name: Web User Password: LOGO d) If necessary select the drop-down list for the desired language. e) To log into the web server, click or tap the [Log on] button.
  • Page 15: Calibration

    XSDC 601-02 7. Calibration Totech recommends annual calibration inspection or the system's calibration by sensor replacement, respectively. For the sensor’s calibration, we recommend the following two options: 1. Replacing the sensor by a factory-calibrated sensor. After detaching the screw-fastened retaining ring, the plug-in sensor can simply be unplugged. The replacement sensor is mounted in reverse order.
  • Page 16: Troubleshooting

    XSDC 601-02 9. Troubleshooting 9.1 For malfunction ✓ Disconnect device from power supply completely, and restart after 10 seconds. ✓ Check logic module and extension module as described under item 9.6. 9.2 Measuring faults ✓ Unplug the sensor and check plug connector. ✓...
  • Page 17: Warranty And Liability

    XSDC 601-02 10. Warranty and Liability 10.1 Warranty and liability Principally, we apply our "General Terms & Conditions", which the operator has been provided with upon contract conclusion at the latest. Warranty and liability claims in relation to personal injury and property damage shall be excluded if the same arise from one or more of the causes below: ✓...
  • Page 18: Third Year Warranty

    XSDC 601-02 10.4 Third year warranty Valid during the ​ t hird year​ after purchase of a new product Only U-5000 series & U-7000 series. Third year warranty: Each case will be evaluated by the technical support department, and the Part(s) will be provided under leniency circumstances.
  • Page 19: Serial Numbers

    XSDC 601-02 11. Serial numbers 11.1 Cabinet serial numbers Explanation how the serial number of the cabinet is identified: 12. CE Declaration With this writing, we: Totech Europe BV De Linge 28 8253 PJ Dronten confirm that the cooling cabinet described corresponds with the fundamental safety and health demands of the following EC instructions: EN55011: 1998+A1:1999+A2:2002 EN61000-6-2:2001...
