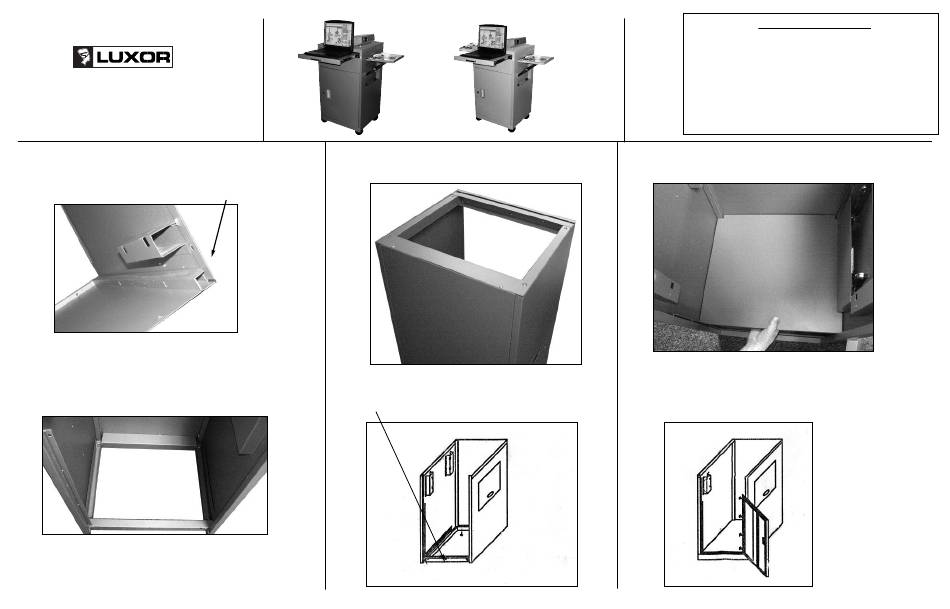

Instruction Sheet
Model LMC, LMC2
Customer Service Dept
2245 Delany Rd
Waukegan, IL 60087
Ph: 847/244-1800 • 800/323-4656
Fax: 847/244-1818 • 800/327-1698
Step 1
Assemble back and side panels by sliding locking tabs together.
Step 2
Lift back and side panels onto base frame making sure the tabs slide
over inside of base.
L L M M C C 2 2
L L M M C C
Step 3
Lay unit on back and install two self tapping screws through back
panel into base frame.
Step 4
Install lower cover beam using three cup head screws and washers.
Parts List
8- Self-tapping screws
1- Door
20- Cup head screws
1- Drawer
3- Long pan head phillips screws
1- Slide out shelf
23- Washers
1- Lower cover beam
1- Handle
2- Rubber stoppers
2- small screws for handle
4- runners
LMC2 Only:
4- Casters
1- Inner shelf
2- Side panels
4- Self supports
1- Back panel
1- Base
Tools Required
1- Bottom Shelf
1- screw driver
Step 5
Turn unit right side up and install bottom panel.
Step 6
Install door with 4 self tapping screws.
