Summary of Contents for Able Desk ADC-MA1-102

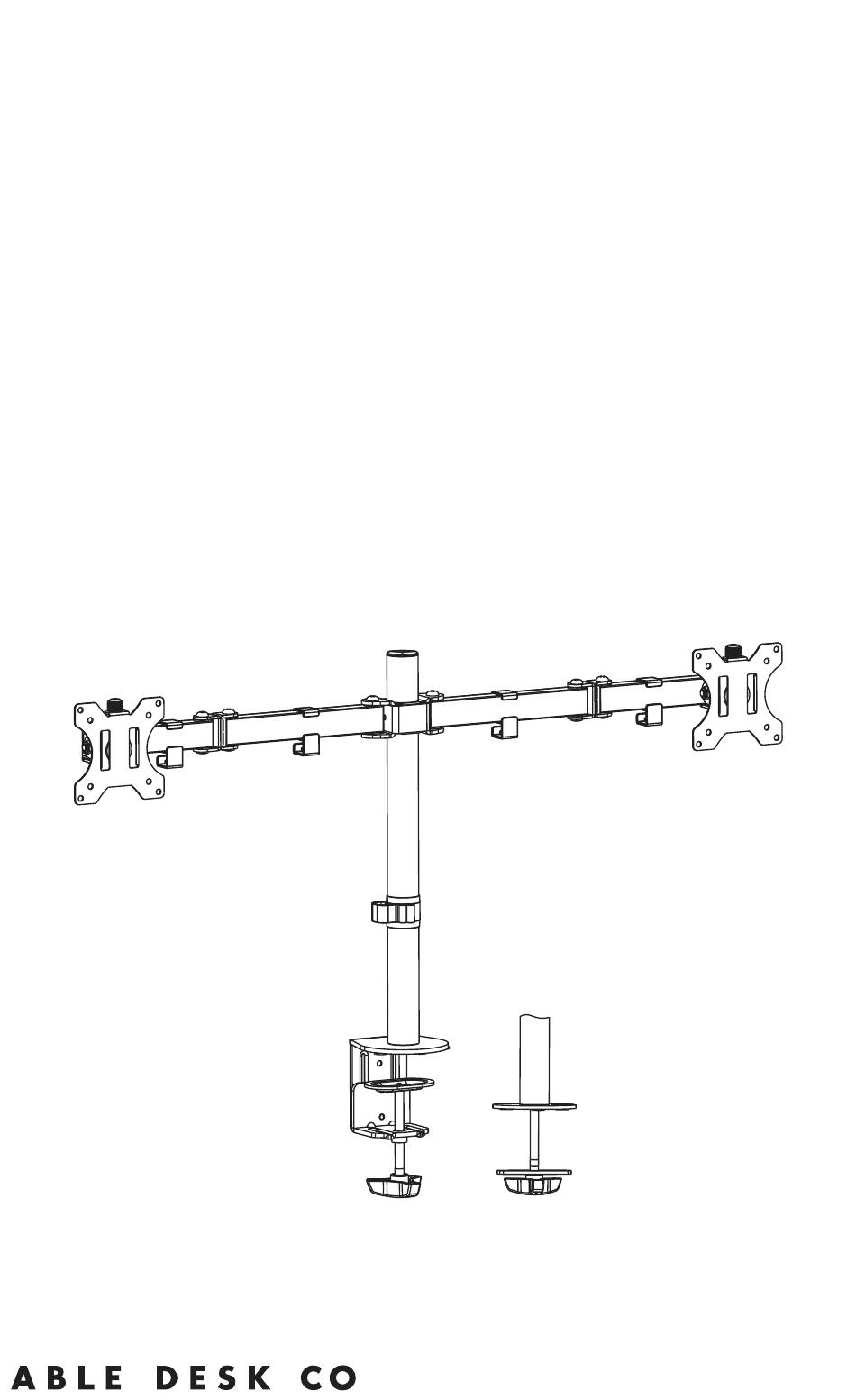

- Page 1 No. ADC – M A1 – 102 Dual monitor arm Assembly instructions...
- Page 2 Cautions and use Parts key Assembly Cable management Functions Specs...
- Page 3 This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. Important If any parts are missing or faulty, contact Able Desk Co for assistance. Atención Lea todo el manual de instrucciones antes de comenzar la instalación y ensamble de la unidad.
- Page 4 Part A (2x) Part F (1x) VESA plate Cable channel Part G (1x) Part B (1x) Grommet top plate Part C (1x) Part H (5x) Clamp mount Foam feet Part I (1x) Part D (1x) Grommet Center pole Bottom plate Part E (1x) Part J (3x) Pole cap...
- Page 5 Part K-A (2x) Part M-B (8x) Small round head M4x16 screw Part K-B (2x) Part M-C (8x) Screw cap M5x12 Part L (1x) Part M-D (8x) 4mm hex key M5x16 Part M (1x) Part R (8x) 6mm hex key Washer Part M-A (8x) Part S (8x) M4x12...
- Page 6 Step 1 : Insert cap to center pole Part E (1x) Part D (1x) Step 2 : Attach center pole to clamp mount Part C (1x) Part H (5x) Part J (3x) Part L (1x) If using a pre-drilled hole for monitor mount, refer to step 2 alternative for installation.
- Page 7 Step 2 alt : Attach center pole to grommet plates Part C (1x) Part G (1x) Part H (5x) Part I (1x)
- Page 8 Step 3 : Attach arm to center pole Part B (1x) Part F (1x) Part M (1x) Step 4 : Attach VESA plates to monitors 32" Part A (1x) Part M(A-D) (8x) Part R (8x) M(A-D) If screws are too long, use step 4 alternative to attach VESA plates to monitors with spacers...
- Page 9 Step 4 alt : Attach VESA plates to monitors with spacers Part A (1x) Part M(A-D) (8x) Part R (8x) Part S (8x) M(A-D) Step 5 : Attach monitors Part K-A (2x) Part K-B (2x) Part M (1x)
- Page 10 Step 5 : Cable management Functions +45° 360° -45° +45° 360° -45°...
- Page 11 Hex key storage Specs Dimensions 35.9” x 5.8” x 21.6” Weight 9.3 lbs Weight capacity 17.6 lbs (per arm) Suggested screen size 13” – 32” Tilt range 45° up and down Swivel range 180° Screen rotation 360° Full arm extension 18.1”...
- Page 12 For assistance, visit abledesk.co/help or email support@abledesk.co...
