Summary of Contents for SPERO SP1400

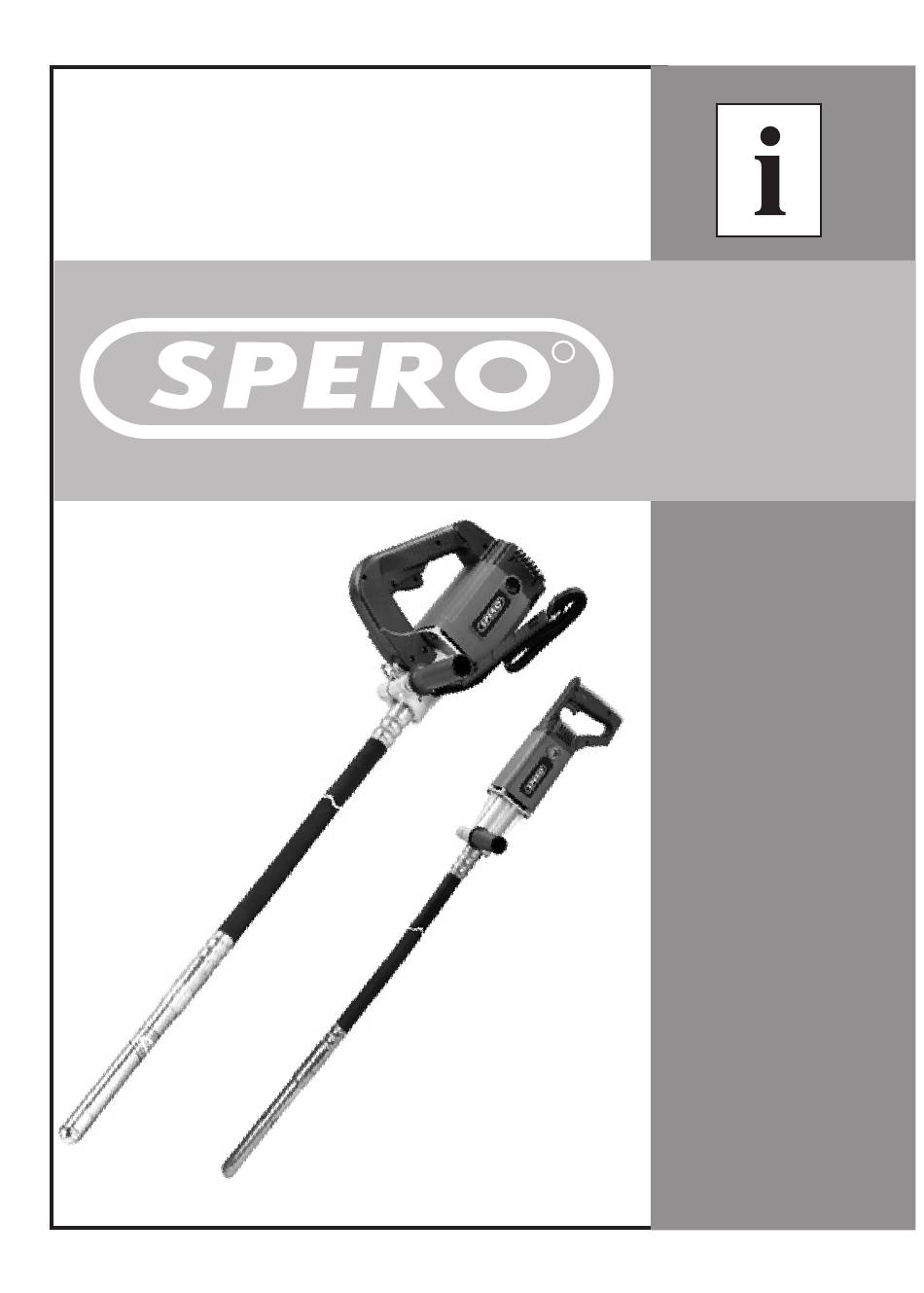

- Page 1 SP1400 SP600 Electric Concrete Vibrator...
-
Page 2: Specifications
SPECIFICATIONS Model SP1400 SP600 Power input 1400W 600W Voltage 115V / 60Hz, 230V /50Hz 115v/60HZ, 230V/ 50HZ No load speed 16,000/min 20,000/min Vibration rate 11,000 b/min 14,000 b/min Vibrator flex pipe 28mm x 178cm or 38mm x 178 cm 28mm x 100cm or 28mm x 160cm Net weight 4.3 kg... - Page 3 b) Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded. c) Don’t expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 4 Tool use and care a) Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed. b) Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 5: Specific Safety Rules
Symbols used in this manual V……..volts A……..amperes Hz……..hertz W……...watt ~……….alternating current ……...no load speed /min……revolutions or reciprocation per minute ……..class II tool SPECIFIC SAFETY RULES DO NOT let comfort or familiarity with the product (gained from repeated use) replace strict adherence to concrete vibrator safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury. -
Page 6: Carton Contents
UNPACKING Carefully remove the tool and all loose items from the shipping container. Retain all packing materials until after you have inspected and satisfactorily operated the machine. CARTON CONTENTS 1. Concrete Vibrator Motor Head Unit. 2. Support Strap. 3. Vibrator pipe (packaged separately). 4. - Page 7 SP1400, SP600 FUNCTIONAL DESCRIPTION Motor unit Switch Strap Handle Handle support handle Switch Vibrator shaft Motor unit support handle Vibrator shaft SP1400 SP600...
- Page 8 STARTING AND STOPPING TOOL Make sure that the power circuit voltage is the same as that shown on the specification plate of the machine and that switch is “OFF” before connecting the tool to the power circuit. Safety lock button Trigger switch To start the machine, first press the safety lock Fig.2...
- Page 9 Effective leveling and removal of air bubbles Removal of the air bubbles is complete after you have worked the tool throughout each effective range, the concrete stops shrinking, and the mortar has risen evenly to the surface, giving off a light appearance. Gently remove the operating tool to avoid leaving holes.
-
Page 10: Standard Accessories
See fig.4. fig.4-1. Brush cap Fig.4-1 STANDARD ACCESSORIES Support Strap (SP1400 only) If the replacement of the power supply cord is necessary, this has to be done by the manufacturer or their agent in order to avoid a safety hazard. - Page 12 SP1400 EXPLODED VIEW Fig.5...
- Page 13 SP1400 PARTS LIST Item No. Parts Name Q'TY VIBRATOR SHAFT COUPLING CAP SCREW M5 x 25 FLAT WASHER GEAR CASE HANGER HANGER PIVOT 6 x 3 x 16.5 BEARING 6202 2RS ARMATURE M10 x 1.5 BEARING 6200ZZ FAN SHROUD STATOR SCREW M5 x 60...
- Page 14 SP600 EXPLODED VIEW...
- Page 15 SP600 PARTS LIST Item No. Parts Name Q'TY VIBRATOR SHAFT COUPLING SCREW M5*25 FLAT WASHER GEAR CASE BEARING 609-2RS ARMATURE BEARING 608-2RS STATOR SCREW M5x60 SPRING WASHER STATOR 73x42 x45 MOTOR HOUSING BRUSH HOLDER 7x11 CARBON BRUSH 7x11 BRUSH CAP 7x11 HANDLE HALF-RIGHT SCREW...
- Page 16 EG-Confirmation declaration We, Van der Spek PowerTools BV, Declared in sole responsibility that the product: Type: SP1400, SP600 Referred to in this declaration conforms with the following standards and further normative documents. We declare under our sole responsibility that this product is in conformity with...
