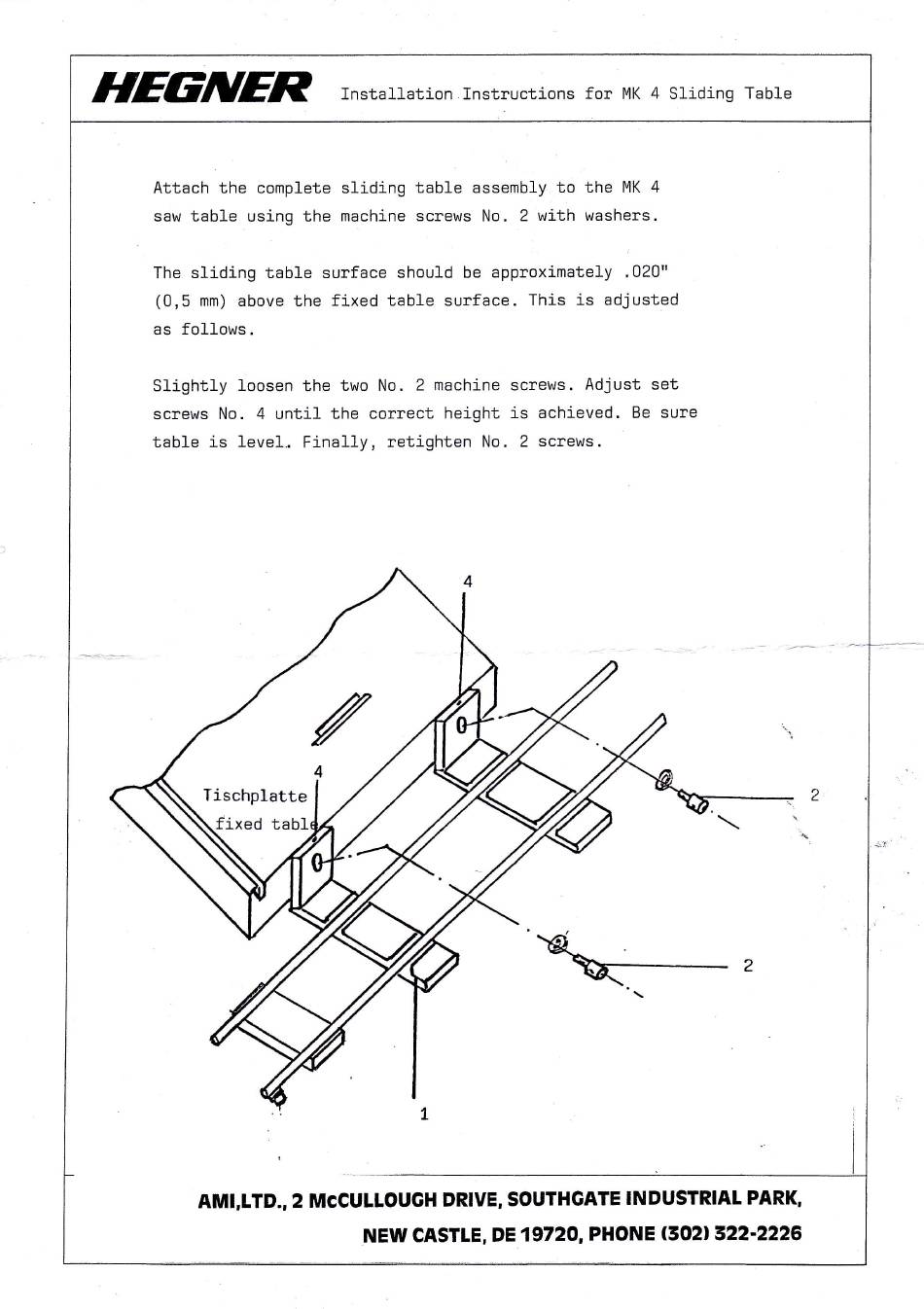

Hegner Mk 4 Installation Instructions

I{EENER
rnstall-ation rnstructions
for
MK
4
slidins
rabl-e
Attach
the
complete
sliding table
assembly
to
the
MK
4
saw
table
using
the
machine screws
No. 2
with
washers.
The
sliding table
surface should be approximately
.020"
(0,5
mm)
above
the fixed table
surface. This
is
adjusted
as fo}lows.
Slightly
loosen
the two No. 2
machine
screws.
Adjust set
screws No.
4
until
the correct
height
is
achieved.
Be sure
table
is
leve1..
Finally, retighten
No.
2
screws.
