Summary of Contents for NOVAtime NT8000
- Page 1 Time Clock - NT8000 – User's Manual Version 1.0...
-
Page 2: Preface
NT8000 User’s Manual Preface About This Manual Thank you for purchasing the product. This manual explains how to install, operate and maintain our product. No part of this publication may be reproduced or used in any form, or by any... - Page 3 NT8000 User’s Manual exposure requirements, avoid direct contact to the transmitting antenna during transmitting. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
- Page 4 NT8000 User’s Manual CE RF Exposure Compliance This device meets EU requirements (2014/53/EU) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. For body-worn operation, this device has been tested and meets the ICNIRP guidelines and the European Standard EN 62209-2, for use with dedicated accessories, SAR is measured with this device at a separation of 0.5 cm to the...
- Page 5 NT8000 User’s Manual Taiwan NCC Warning Statement 低功率電波輻射性電機管理辦法 第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者 均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有 干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機需忍受合法通信或工業、科學及醫療用電波輻射性電機設備 之干擾。 注意事項: 減少電磁波影響，請妥適使用。...
-
Page 6: Led Information
NT8000 User’s Manual LED Information The product contains LED indicator(s) or LED ring whose luminance is not harmful to human eyes during normal operation, user maintenance or prescribed service operations. *LED information only applies to the products with LED components. -
Page 7: Battery Notice
NT8000 User’s Manual Battery Notice To guarantee optimal performance, it is recommended that rechargeable batteries be replaced every year, or after 500 charging cycles are completed. It is normal for the battery to balloon or expand after one year or 500 cycles. Although it does not cause damage, it cannot be used again and must be disposed of according to the location's safe battery disposal procedures. - Page 8 NT8000 User’s Manual CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED INCORRECTLY. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. 如果更換不正確之電池行事會有爆炸的風險 請依製造商說明書處理用過之電池 如果更换不正确之电池行事会有爆炸的风险 请依制造商说明书处理用过之电池 Battery charge notice It is important to consider temperature when the battery pack is charging.
- Page 9 NT8000 User’s Manual Storage and safety notice Although charged batteries may be left unused for several months, their capacity may be depleted due to build up of internal resistance. If this happens, they will require recharging prior to use. Batteries may be stored at temperatures between -20°C to 60°C, however they may deplete more rapidly...
-
Page 10: Adapter Notice
Adapter Notice Please do not leave the power adapter in the socket when it is not connected to the product for charging. Please remove the power adapter when the battery is fully recharged. The bundled power adapter that comes with the product is not meant to be used outdoors. -
Page 11: Table Of Contents
Table of Contents Preface......................i About This Manual ..................i Regulatory Compliance Statements .............. i LED Information ................... v Battery Notice....................vi Adapter Notice..................... ix Chapter 1 - Overview................1 1.1 Package ....................1 1.2 Product Detail..................2 1.3 Main Board .....................4 1.4 Specifications ..................5 1.5 Getting Started ..................8 Chapter 2 –... -
Page 12: Chapter 1 - Overview
NT8000 User’s Manual Chapter 1 - Overview 1.1 Package Please make sure the following contents are in the NT8000 gift box. If something is missing or damaged, please contact your unitech representative. Package contents NT8000 Time Clock Power supply / Power cord ... -
Page 13: Product Detail

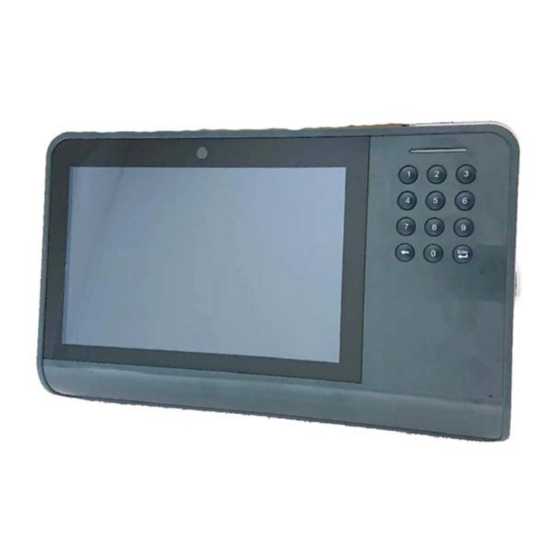

NT8000 User’s Manual 1.2 Product Detail Camera Keypads Touch Screen Keypads Finger Print RFID Touch Screen... - Page 14 NT8000 User’s Manual Reset Button Case Lock Speaker...
-
Page 15: Main Board
NT8000 User’s Manual 1.3 Main Board The Main board can be access via unlocking the right side lock of the NT8000 and removing the upper and bottom cases. Battery Pack DC IN input jack... -
Page 16: Specifications
NT8000 User’s Manual 1.4 Specifications Platform Qualcomm SDM450 Processor CPU: Octa-core A53 (64bit) 8*1.8GHz GPU: Adreno™ 506(64bit)/600MHZ DSP: Hexagon™ eMCP RAM: LPDDR3 32bit 3GByte ,933MHz(max.) Flash: eMMC 5.1 32GByte Android 7.1.2 Keyboard Full alpha numeric with backspace, ENTER, ESC ... - Page 17 NT8000 User’s Manual Touch Panel Capacitive type touch panel Support 5 point touch Indicators Red+Green+Blue LED * 3 LED will display only one color at one incident Keypad LED White LED * 12 (Illuminate Keypad ) Audio ...
- Page 18 NT8000 User’s Manual RFID/LF EM module Use UART connected to CPU Baud rate up to 19.2Kbps Support ISO-11784 ISO-11785 Minimum reading distance is 3cm Battery 7.4V/2750mAh support 2 hours operation Reserve battery capacity keeping RTC data 6 days...
-
Page 19: Getting Started
1.5.1 Connecting Power Connect power to the NT8000 through the following instruction: Plug the Power Adapter Cable into the NT8000’s DC input jack and then connect the other end of the Power Adapter into an electrical outlet. 1.5.2 Change the Battery Please see the photo below to change the battery pack. - Page 20 NT8000 User’s Manual 1.5.3 Turning on the terminal The NT8000 automatically powers on when the power adapter plugs into an external power source. The NT8000 welcome screen appears.
-
Page 21: Chapter 2 - Installation & Operation
Chapter 2 – Installation & Operation 2.1 Main Menu Here are the introductions on the main menu: Touch panel is only applicable on the main menu for each setting. Please use RFID card to excute NT8000. Select Language Date & Time Admin/... -
Page 22: Language Setting
NT8000 User’s Manual 2.2 Language setting To change the language, please tap the top right corner of the screen to choose the language. -
Page 23: Setting
NT8000 User’s Manual 2.3 Setting To enter the admin console, please tap the bottom left corner of the screen to enter the setting section. Reboot the system... -
Page 24: Hardware Reset
NT8000 User’s Manual 2.4 Hardware Reset To perform a hardware reset, press the Hardware Reset button with a stylus or a sharp object for about 5 seconds. Caution: If you perform the hardware reset, there is a possibility that the settings you...
