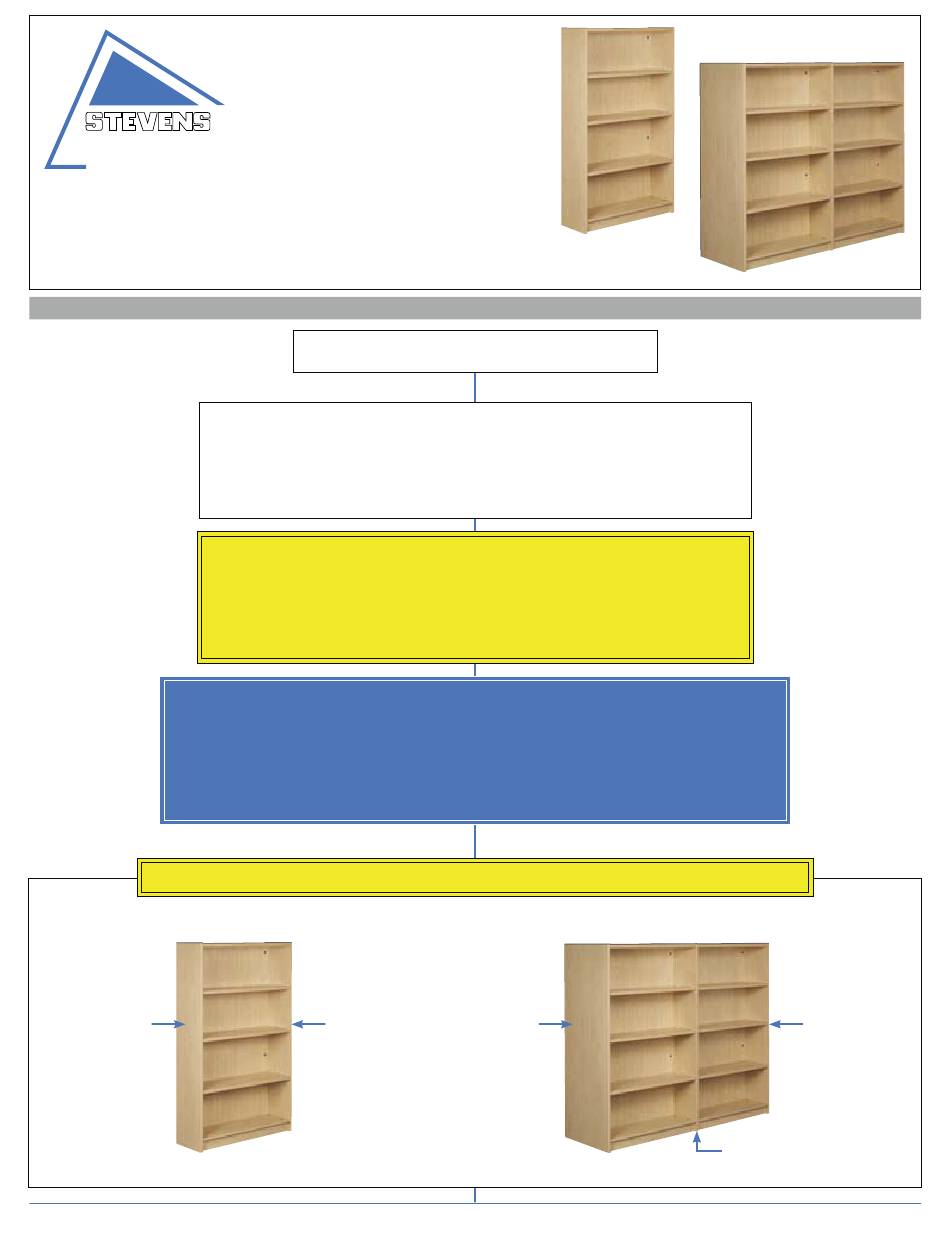

I.D.SYSTEMS
STARTER/ADDER SHELVING
Assembly instructions are included for both STARTER SHELVING
End Panel and Center Panel identification is critical for correct unit assembly!
STARTER SHELVING
1" Starter
End Panel
3249.IDS-STARTER/ADDER.1/4/12
Stevens I.D.SYSTEMS
800.350.3270
TM
www.IDSystemsStorage.com
STEP-BY-STEP INSTALLATION
Please unpack and assemble in an area away from children's activities. Remove all tools
and excess materials from work area after assembly of unit is complete. Dispose of pallet
and packaging materials in an environmentally friendly manner. If any parts are missing or
damaged, please call Stevens for immediate parts replacement (1-800-350-3270). When
ordering parts, give the Model Number and Color of the unit.
Single Face units must be attached to building structure by anchoring through the 3/4"
backs to walls with anchoring devices of appropriate type, size and quantity in accordance
with applicable codes and accepted installation practices. Fastening anchors (not provided)
to be of type suitable for wall structures such as block and concrete, wood stud walls and
metal stud walls. Do not attach directly to drywall, plaster or thin paneling. Always fasten
into hard areas of masonry walls, studs and internal wall blocking.
and for STARTER / ADDER COMBINATION SHELVING.
Both sets of instructions begin with Step #1 on Page 2.
1" Starter
End Panel
©2012 Stevens Industries, Inc. Due to continuing product development, Stevens reserves the right to change specifications without notice.
™
Available heights:
39", 47", 61", 74", 84"
ATTENTION
IMPORTANT
NOTE:
STARTER / ADDER COMBINATION SHELVING
1" Starter
End Panel
1" Starter
End Panel
3/4" Adder
Center Panel
#0964-2933
1
Advertisement
Table of Contents
Summary of Contents for Stevens I.D.SYSTEMS STARTER
- Page 1 Do not attach directly to drywall, plaster or thin paneling. Always fasten into hard areas of masonry walls, studs and internal wall blocking. NOTE: Assembly instructions are included for both STARTER SHELVING and for STARTER / ADDER COMBINATION SHELVING. Both sets of instructions begin with Step #1 on Page 2.
- Page 2 Determine if you are assembling a Single Sided Install the required number of Minifix Casings or Double Sided shelving unit. into the 15mm predrilled holes on the faces of the Starter Top, Back and Toe Kick Panels. NOTE: These instructions are illustrated as a 47" tall NOTE: unit.
- Page 3 1" Double Sided End Panel If assembling STARTER / ADDER COMBINATION SHELVING, set the other 1" Starter End Panel aside and go to Step #17 on Page 6. Back Install the required number of Minifix Studs into the predrilled holes in the Opposite End Panel.
- Page 4 STARTER SHELVING STEP-BY-STEP INSTALLATION I.D.SYSTEMS Align the Minifix Studs and holes in the Opposite Attach the Back Bracket to the unit Top and Back, End Panel with the predrilled holes and dowel using the 5/8" Phillips screws provided. pins in the edges of the Top, Back and Toe Kick Panels, then press the End Panel into place.
- Page 5 Clips (typ.) Minifix Studs Install four (4) Minifix Casings into the 15mm Securely attach Single Face Starter Shelving predrilled holes in the Bottom Fixed Shelf, with units to building structure, anchoring through the arrows pointing toward the End Panels. Rotate 3/4"...
- Page 6 COMBINATION SHELVING, holes on the outside face of the Adder Center continue with Step #17 below. Panel and into the Minifix Casings on the Starter (continued from Step #5 on page 3) Top, Back and Toe Kick Panels. When seated...
- Page 7 STARTER/ADDER COMBINATION SHELVING STEP-BY-STEP INSTALLATION I.D.SYSTEMS Stand the unit up and position in final location. Install the Adder Back Panel onto the exposed Double Ended Minifix Studs on the Adder Center Panel, tightening the Minifix Casings clockwise. Then, install the Adder Top and Toe Kick Panels onto the Studs on the Adder Center Panel, tightening the Minifix Casings clockwise.
- Page 8 Attach the Back Bracket to Top and Back of all Shelving or continuous run of multiple sections sections of the Starter/Adder Shelving unit, using is finished with the 1" Starter End Panel (drilled the 5/8" Phillips screws provided. on one side) that was set aside earlier. Install the required number of Minifix Studs into the...
