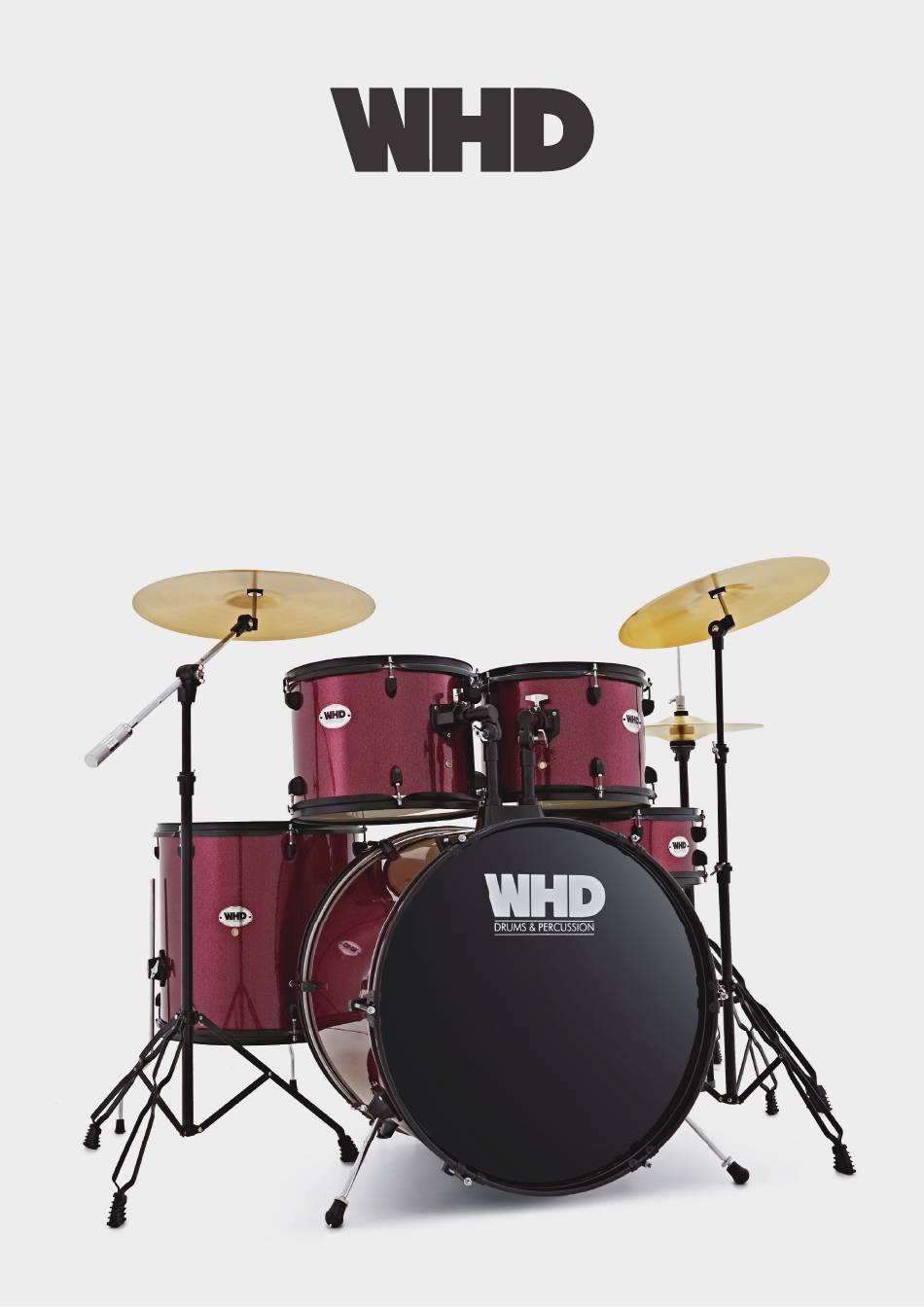

- Page 1 GENESIS COMPLETE DRUM KIT SETUP GUIDE...
- Page 2 FULL SIZE STARTER DRUM KIT...
-
Page 3: Contents Checklist
CONTENTS CHECKLIST DRUM HEADS: 1x Batter Head for 12” Tom Tom Drum Your kit will arrive in one box and should take (with Gear4music logo) around 30 minutes to fully assemble. 1x Resonant Head for 12” Tom Tom Drum Please check that all the items below are present (no logo) before assembly and follow the instructions carefully. - Page 4 YOUR DRUM KIT Crash Cymbal Crash Cymbal Stand 12” Tom Tom Ride Cymbal Hi-Hat Ride Cymbal Stand Hi-Hat Stand 13” Tom Tom Bass Drum Snare Drum 16” Floor Tom Snare Drum Stand Drum Stool Bass Drum Pedal Bass Drum Tension Rods, Claws and Washers Bass Drum Leg...
- Page 5 ASSEMBLY INSTRUCTIONS BASS DRUM ASSEMBLY Items Required: 12x Bass Drum Tension Rods, Claws and Washers 1x Bass Drum (22” x 16”) 2x Bass Drum Legs 1x Batter Head for 22” Bass Drum (no logo) 1x Drum Key 1x Resonant Head for 22” Bass Drum (with Gear4music logo) 1x Rubber Bass Drum Hoop Protector 1.
- Page 6 12” TOM TOM DRUM ASSEMBLY Items Required: 2x Tom Tom Hoops (12”, attached to drum) 1x Batter Head for 12” Tom Tom Drum 10x Tom Tension Rods and Washers (with Gear4music logo) (note – 2x already attached to the drum) 1x Resonant Head for 12”...
- Page 7 16” FLOOR TOM DRUM ASSEMBLY Items Required: 1x Batter Head for 16” Floor Tom Drum (with Gear4music logo) 1x Resonant Head for 16” Floor Tom Drum (no logo) 2x Floor Tom Hoops (16”, attached to drum) 10x Tom Tension Rods and Washers (note –...
- Page 8 HI-HAT ASSEMBLY Items Required: 1x Hi-Hat Stand (three parts) 1x Hi-Hat Cymbals (Pair, 14” – top and bottom) 1x Drum Key 1. Take the tripod base of the hi-hat stand and 5. Take the hi-hat clutch and unscrew the nut at spread the legs out by unscrewing the wingnut.
- Page 9 CRASH CYMBAL ASSEMBLY Items Required: 1x Crash Cymbal (16”) 1x Crash Cymbal Stand 1. The cymbal stand is already assembled and only requires height and leg adjustments. These can be made by undoing the wing nuts, splaying the legs, and then undoing both telescopic poles to set to the desired height.
- Page 10 FITTING TOM TOM DRUMS TO THE BASS DRUM Items Required: 1x Tom Tom Drum (12” x 10”) 1x Tom Tom Drum (13” x 11”) 1x Bass Drum (22” x 16”) 2x Tom Tom Drum Arms 1. Take the two tom drum arms and place them into the holes on top of the bass drum.
- Page 11 DRUM STOOL ASSEMBLY Items Required: 1x Drum Stool (three parts) 1. Take the base of the stand, undo the wing nuts and splay the legs. Set this on the ground upright. 2. Take the height adjustment pole (which has 5 holes). Use the bolt, washer and wing nut to secure it into the base.
- Page 12 If you have any more questions about this product, please do not hesitate to contact the Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com...
