Alewings Y Reverse Usage Manual

Y Reverse
Servos programmer module
USAGE MANUAL
Alewings
v. del Lavoro, 41 20084 Lacchiarella MI ITALY
www.alewings.it info@alewings.it
CONNECTIONS
Fix the device with a double-sided tape or with a velcro on the
opposite side of programming button. We recommend to create
an anti-vibrating support in order to insulate electronic circuit from
possible vibrations sent by propulsive system.
CONNECTION TO THE RECEIVER:
Connect the input of the REVERSE module cable to the receiver
channel you want to use
CONNECTION TO THE SERVOS:
Connect the output cables to servos you want to control, paying
attention to the right polarity.
The upper output (number 1) is the reverse one and it will be
controlled oppositely to the receiver signal. The lower output
(number 2) has move according to the receiver signal.

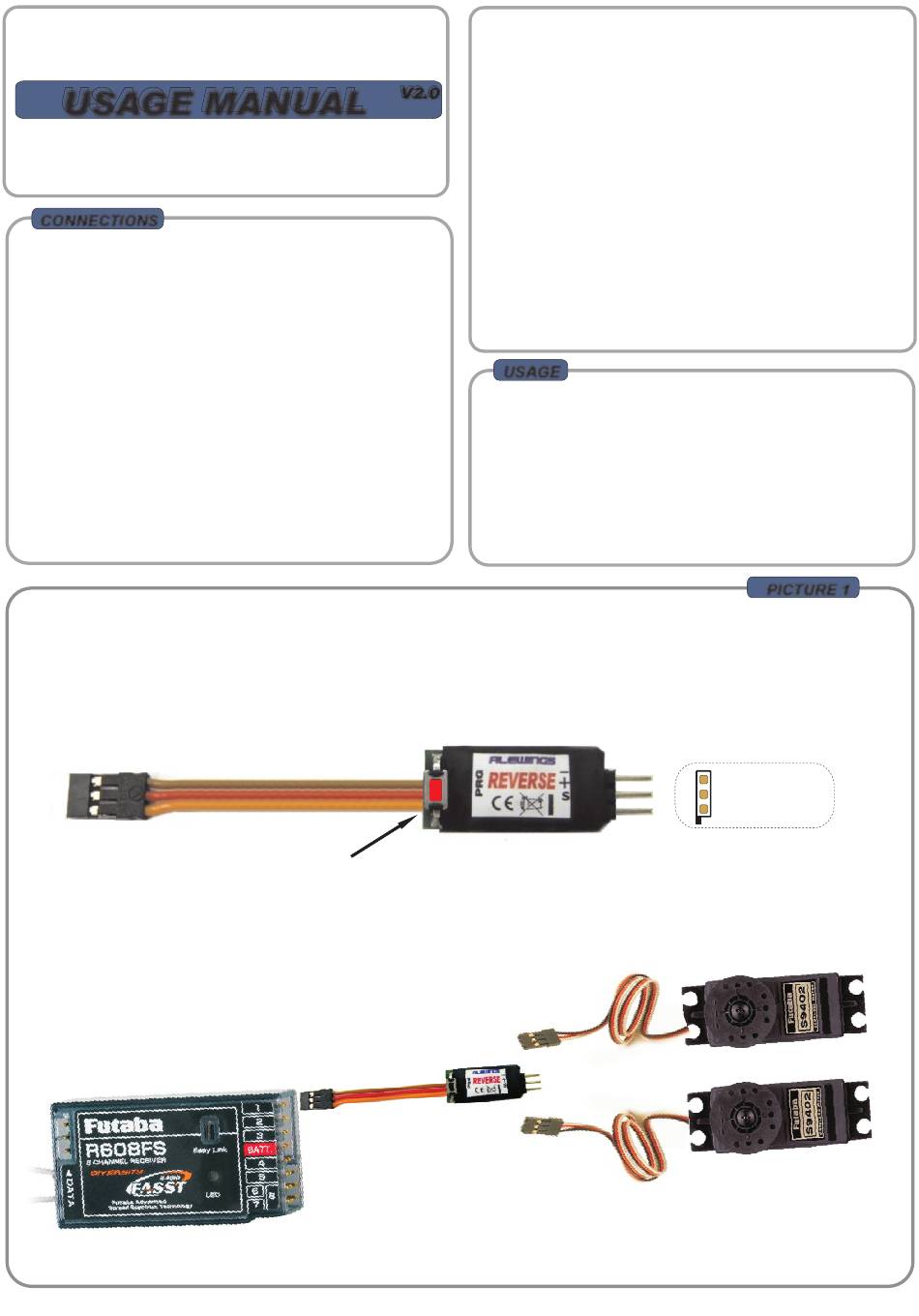

For the right connection of the Y module to receiver and servos
please refer to picture number 1.
Output 1 = REVERSE
Output 2 = DIRECT
Connect to the receiver
Cod. 90020301
®
di Alessandro Torri
Programming Button
(PRG Button)
Dear client,
We express our thanks for your purchase of REVERSE module: the
simple and accurate programmable inverter for servos.
V2.0
This device is able to manage the signal of one receiver channel by
an Y connection with two reverse outputs. It is installed between the
receiver and servos to improve more useful functions such as:
- to invert the servo sense of rotation;
- to connect 2 servos, with reversed movement, to one single
receiver channel. It is useful for saving one receiver channel in
case of two independent servos on flaps, brakes and tails;
- to match and center two servos mechanically coupled;
- to filter and amplify the servo position signal.
USAGE
After carrying out the connections showed into the "Connections"
section, you can switch your RC system and your Y module is yet
working: if you move your radio stick indeed the two servos
connected to the module will move oppositely.
Place the servo arms of both servos so that the two mobile parts
are lined up and the corresponding stick is in the central position.
If this is not enough for the best alignment, please proceed with the
electronic servo center programming (see the "Programming"
section).
UP Output 1
DOWN Output 2
PICTURE 1
FRONT VIEW
BLACK
RED
SIGNAL
