Summary of Contents for Aqua ZL Series

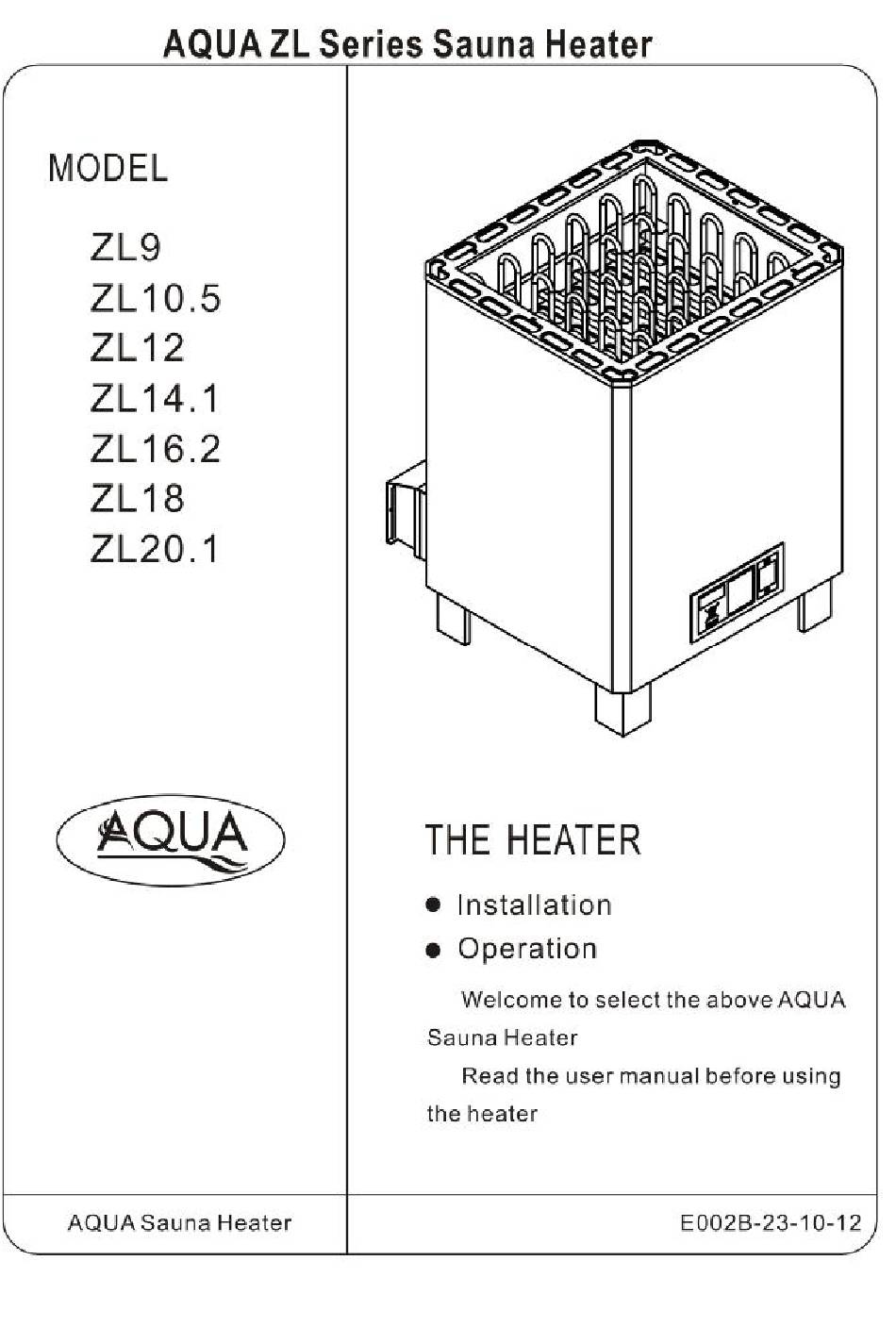

- Page 2 Sauna Heater Foreword Thank you for choosing to buy our Aqua Sauna heater, please take the time to read these instructions before you begin as they contain important information about the installation and maintenance requirements. ZL Series Sauna heaters are available in specifications from 9kw to 20.1kw and are equipped with our OC-SB digital controller &...
- Page 3 AQUA Sauna Heater by an adult This appliance is not intended for use by persons including children with reduced physical, sensory or • mental capabilities or lack of experience unless they have been given supervision or instruction concerning the use by a person responsible for their safety Commercial operators should post a notice of these precautions in a prominent position •...
-
Page 4: Heating Element
AQUA Sauna Heater Detected scope Cut off on high temperature Size (mm) Model ℃ ℉ ℃ ℉ OC-S 0~110 32~230 4. Circuit Diagram for sauna heater and control Box Sauna heater circuit diagram (Fig 1) HEATING ELEMENT OCS090B-0CS170B (Fig 1-a) - Page 5 AQUA Sauna Heater ～ A C400V 3N 50 60Hz O CS- B Cont r ol box ci r cui t di agr am Ⅰ 6 O N K3 K4 O N K1 K2 O N 1 Swi tch ℃/ ℉...
- Page 6 AQUA Sauna Heater (1)、 Sauna heater frame (Fig 3) (Fig 3) (2)、 Parts (Chart 4) parts description Heat element heating Shell Insulate the inner shell to prevent from scalding Cover Panel Cover the electrical parts terminal Connect the power supply...
- Page 7 AQUA Sauna Heater (2)、 Keys and LED instruction (Chart 5) C har t 5 Description Function instruction On/off button Push to operate Light button Push to operate for sauna room light Fan button Push to operate for control box fan...
- Page 8 AQUA Sauna Heater (1)、 Control box frame(Fig 5) (Fig 5) (2)、 Control box instruction (chart 6) Description Function instruction Wire anchorage Route of wire entry and fasten wires terminal Connect to the power supply Terminal Connect to heater Heater ,light...
-
Page 9: Chapter Three: Installation
AQUA Sauna Heater (1)、 Temp sensor frame (Fig 6) (Fig6) (2)、 Temp sensor instruction (chart 6) Chart 7 Parts Description Circuit board Circuit board Bracket Bracket Cover Protects the electronics Heat resistance Detects temperature High Temp cut of switch When temperature in sauna room exceed 120... - Page 10 AQUA Sauna Heater The heater gets very hot when working. To avoid the risk of accidental contact with the heater, it is recommended that a heater guard be provided. The guard is made into many kinds of patterns in accordance with the location places, but some size must be made as the Fig 7 and chart 8.
- Page 11 AQUA Sauna Heater Fig 8 Remarks: control box output to sauna heater can’t be bridged. 4.multi sauna heater linking function Fig 9 Installation for controller Ideally the control panel should be installed at a height of approximately 1200mm for ease of use.
-
Page 12: Input Power
AQUA Sauna Heater (Fig 10) The control wire should plug into the silver / black din socket on the PCB of the main OCB control box. Installation for Temp Sensor Install the temperature sensor on the height between 1500-1800MM in sauna room... - Page 13 AQUA Sauna Heater below – according to the position of the heater within the cabin it may need to be guarded on 2 or 3 sides. Fix the guard in place around the heater by drilling screwing accordingly. (Fig 13) Note:It is important that the top rail of the guard is set at least 30 mm below the rim of the heater such that it does not receive heat radiation directly from the heater rocks.
- Page 14 AQUA Sauna Heater Insulation The door, ceiling and walls of sauna room must be insulated. When one square meter (m ) of uninsulated surface choosing the heater input (refer to table 1), take following as example: 1 cubic volume increases to approximately 1.3m...
-
Page 15: Chapter Four: Testing And Operation
AQUA Sauna Heater (Fig 15) 1、 Air supply vent 2、 optional air supply vent if mechanical exhaust ventilation is used, the opening is located 50cm above the heater 3、 exhaust air vent 4、 Drying vent, which is closed during heating and bathing, the sauna room can also be dried by leaving the door open after bathing 5、... - Page 16 AQUA Sauna Heater function will start (A Model). This is explained more at the bottom of this page. Chart 9 Default Temp Temperature adjust scope Model Default model ℃ ℉ ℃ ℉ 50~110 122~230 Default time Time adjust scope Working time...
-
Page 17: Chapter Five: Trouble Shooting Guide
AQUA Sauna Heater To adjust temperature： if you press “ ” once after you finish setting the time or otherwise twice the • temperature window will flash, enter the required temperature by pressing “ ” or “ ” to adjust - every press will increase or reduce 1 ℃... -
Page 18: Chapter Six Maintenance
AQUA Sauna Heater During the advance timer countdown sequence ,the sauna room door has been Door LED is on Reset counter down timer opened , the timing stopped and will not restart again until it is reset. Sauna heater is in... - Page 19 AQUA Sauna Heater For warranty claims and after sales service please contact your local dealer. E002B-23-10-12...
