Saranac Seat
Back Kit
Instruction
Please read kit instructions carefully prior to installation.
Many of our kit installations can be viewed at
Ref.
Part Number
Letter
A
01.1315.2467
B
01.1315.0491
C
01.1315.2813
D
07.2479.0000
E
01.1315.1564
F
01.1315.1568
G
07.3404.0000
H
01.1315.3590
D
A

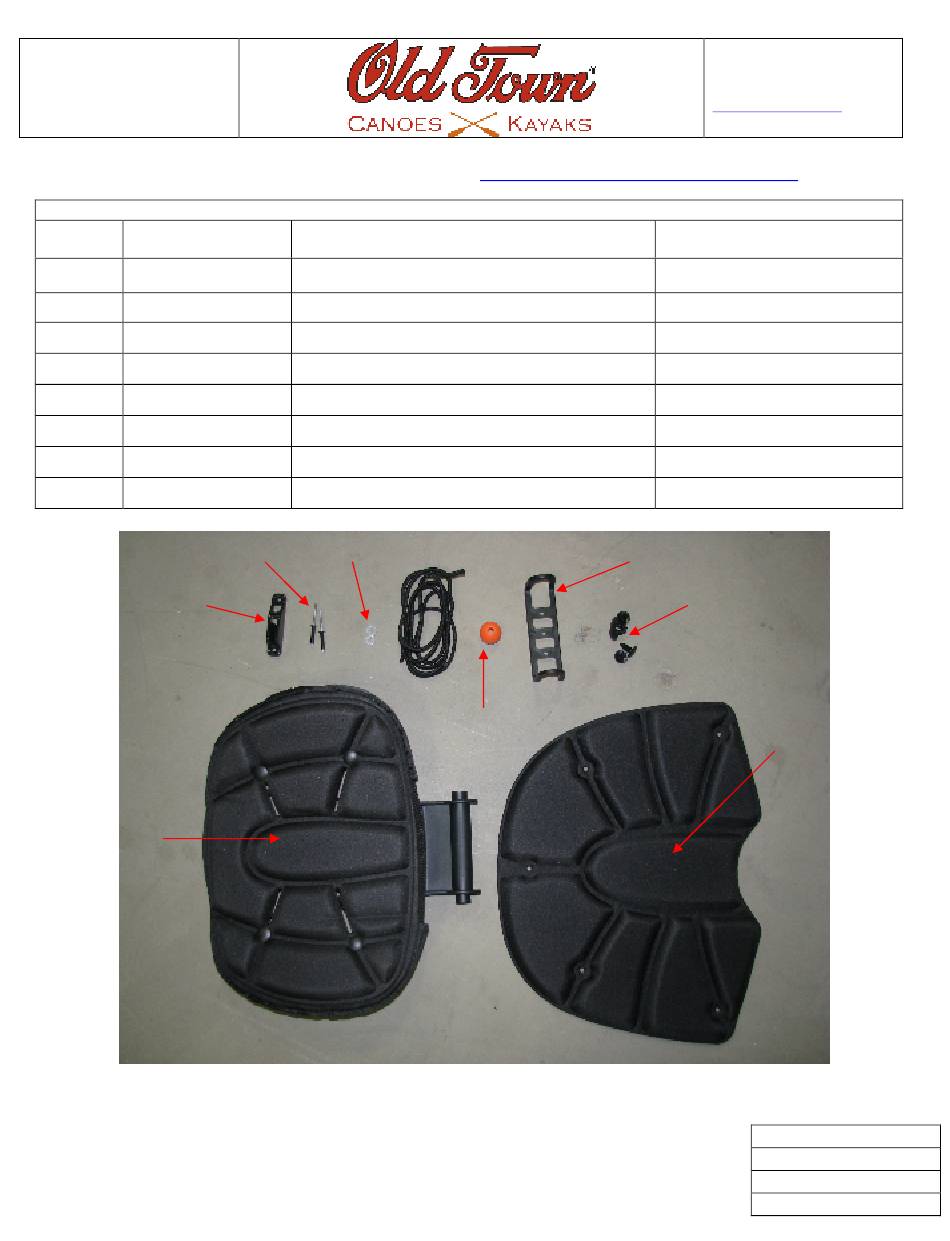

Before getting started we recommend sorting out and separating the parts for easy access
during assembly.
KIT CONTENTS
Seat Back Saranac
Saranac XT Seat Bracket
Seat Adjustment Ball
Cleat Clam CL 203
Rivets-AA611 Black
3/16 Backup Deck Washer
Saranac Seat Pad
¼" Panel Fasteners
E
F
www.youtube.com/oldtowncanoeandkayak
Description
C
125 Gilman Falls Road
Building B
Old Town, ME 04468 USA
800-8-KAYAKS
www.oldtowncanoe.com
Quantity
1 EA
1 EA
1 EA
1 EA
2 EA
2 EA
1 EA
5 EA
B
H
G
Rev. A
Issue Date: 07/15/2011
Doc. # K-01.1331.1225
Page 1 of 5
Advertisement
Related Manuals for Old Town Saranac Seat
Summary of Contents for Old Town Saranac Seat
- Page 1 125 Gilman Falls Road Saranac Seat Building B Old Town, ME 04468 USA Back Kit 800-8-KAYAKS www.oldtowncanoe.com Instruction Please read kit instructions carefully prior to installation. Many of our kit installations can be viewed at www.youtube.com/oldtowncanoeandkayak KIT CONTENTS Ref. Part Number...
- Page 2 Tools Required: Flat Head Screw Driver, Drill, 13/64”Drill Bit, and Pop Rivet Tool Locate the Saranac Seat Bracket (B); insert it in one of the two seat bracket holes on the stern side of the seat as shown in Fig #1. Now push the Seat bracket (B) through to the second hole and pull it up through as shown in Fig# 2.
- Page 3 125 Gilman Falls Road Saranac Seat Building B Old Town, ME 04468 USA Back Kit 800-8-KAYAKS www.oldtowncanoe.com Instruction Please read kit instructions carefully prior to installation. Many of our kit installations can be viewed at www.youtube.com/oldtowncanoeandkayak Next find the Cleat Clam (D) and rest it in the pocket on the right side of your seat with the high end facing the bow as shown in Fig# 5, using the clam cleat as a jig drill two holes with a 13/64”...
- Page 4 Fig# 9 6. Locate the Saranac Seat Pad (G) and place on seat base so that the holes in the seat base line up with the pad. Push the ¼” Panel Fasteners (H) into the five holes to complete the installation as shown in fig# 10.
