HEALTHTECH Swedish Trolley Assembly Instructions

The Swedish Trolley from Medicare Technology can
provide invaluable help around the house. The trolley is
constructed from a strong steel frame with plastic trays
which are suitable for carrying everyday objects, use as
a hobby table or to dine from. The Trolley is height
adjustable and requires no tools for assembly or
adjustment.

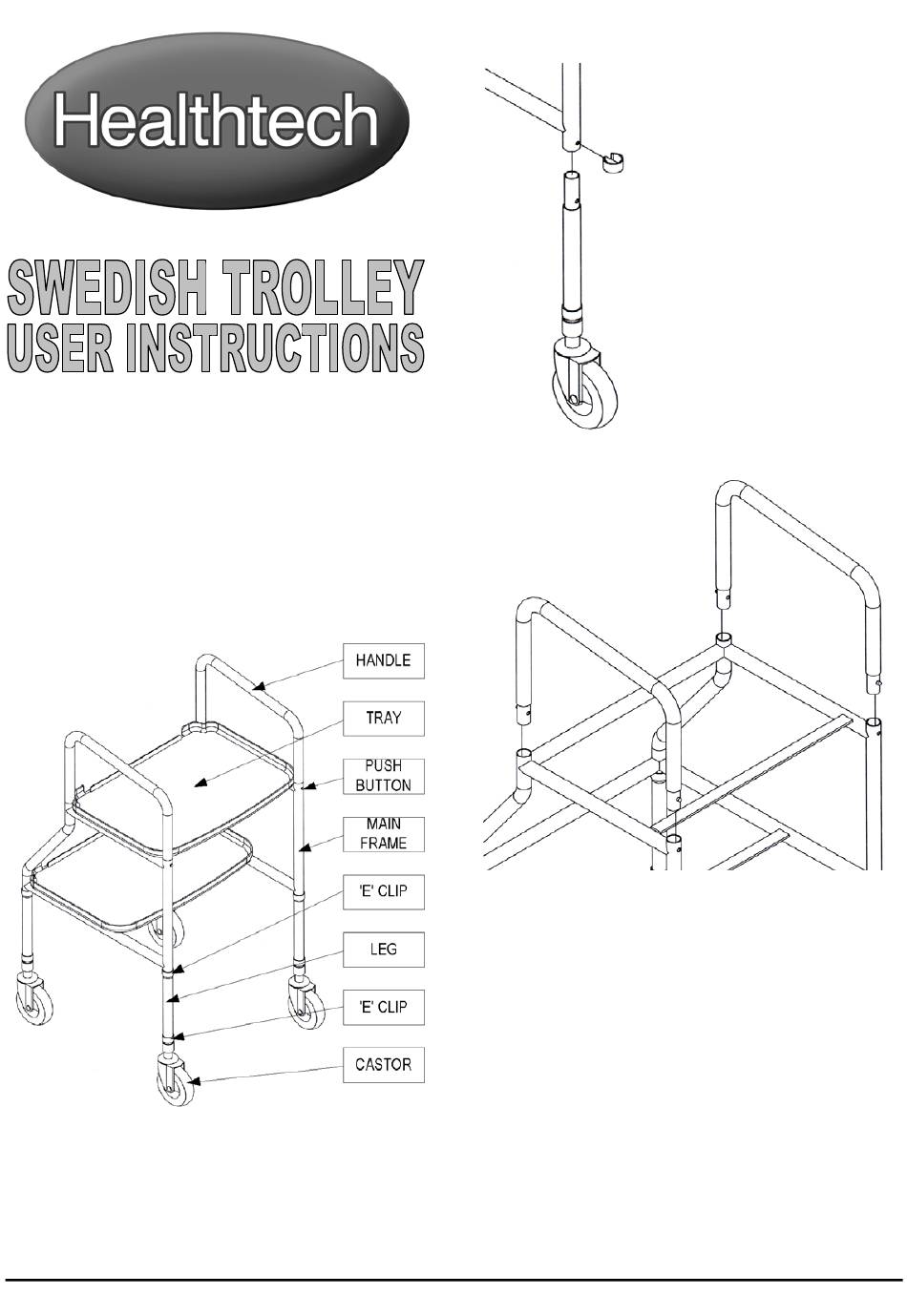

PARTS DESCRIPTION
Swedish Trolley
3. Insert the handle in to the top of the main frame.
Hold in the brass push buttons on the handle whilst
inserting. Insert the handle until the push buttons
lock it in position. Repeat for the other handle.
(See diagram above).
User Instructions (Page 1 of 1)
ASSEMBLY INSTRUCTIONS
1. Remove all components
from packaging.
2. Insert the leg (with castor
attached) in to the bottom
of the main frame. Then
insert the top 'E' clip to
secure. Repeat this stage
for all four legs.
(See diagram left)
Part code: Z34100
