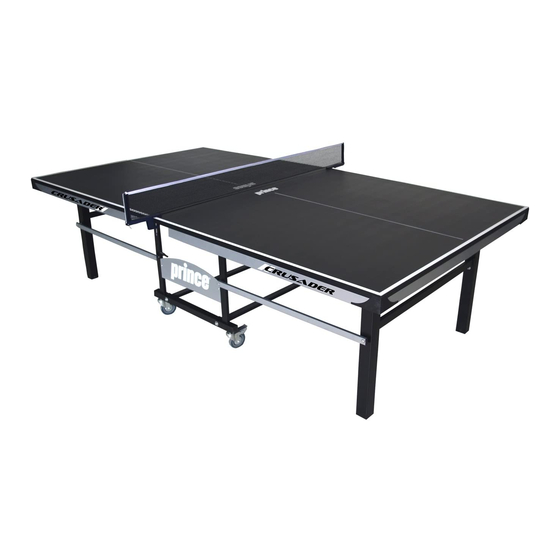

Prince Crusader PT2500 Assembly Instructions Manual

Prince Crusader PT2500 Assembly Instructions Manual

Table tennis table

Advertisement

Quick Links

Congratulations on the purchase of your new Prince table tennis table.
Our products are designed and manufactured to give you years of game playing enjoyment.
► KEEP BOX AND PACKING MATERIAL UNTIL TABLE HAS BEEN COMPLETELY ASSEMBLED.
► ALL DAMAGE MUST BE REPORTED TO DMI WITHIN TEN DAYS OF RECEIPT.
► IF YOU HAVE ANY PROBLEMS WITH YOUR NEW TABLE
PLEASE DO NOT RETURN IT TO THE STORE.
Please contact us:
1.800.399.4402
FAX: 215.283.9573
Please have your model number when inquiring about parts.
Or write to:
DMI Sports Customer Service
1300 Virginia Drive, Suite 401
Fort Washington PA, 19034
Please visit our web site at:
www.dmisports.com
When contacting DMI Sports, please provide your model number and
item number (if applicable) if requesting a replacement part.
Item numbers can be found inside this owner's manual.
Your model number is: PT2500

Advertisement

loading
Need help?

Need help?

Do you have a question about the Crusader PT2500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Prince Crusader PT2500

  • Page 1 Congratulations on the purchase of your new Prince table tennis table. Our products are designed and manufactured to give you years of game playing enjoyment. ► KEEP BOX AND PACKING MATERIAL UNTIL TABLE HAS BEEN COMPLETELY ASSEMBLED. ► ALL DAMAGE MUST BE REPORTED TO DMI WITHIN TEN DAYS OF RECEIPT.
  • Page 2 ASSEMBLY INSTRUCTIONS CRUSADER™ PT2500 TABLE TENNIS TABLE CAUTION PLEASE FAMILIARIZE YOURSELF WITH THE HANDLING AND MAINTENANCE INSTRUCTIONS BEFORE USE. PLEASE RETAIN INSTRUCTIONS FOR FUTURE PARTS IDENTIFICATION.
  • Page 3: Tools Required For Assembly

    TOOLS REQUIRED FOR ASSEMBLY: ALLEN KEY/SCREW DRIVER TOOL (included) and HAND WRENCH (included) Using an electric drill is a good option but only at a low torque setting and with extreme care PARTS INDENTIFIER AND ASSEMBLY PARTS P1 QUANTITY: 1 set QUANTITY: 2 QUANTITY: 4 QUANTITY: 2...
  • Page 4 ASSEMBLY INSTRUCTIONS This is one of our heaviest tables. We recommend that at least two adults work together to assemble this table. The table will be assembled upside down and then turned over onto its legs once completed. Turning this table over will require at least three strong adults. We suggest that you use the bottom carton as a clean flat work area to protect the table.
  • Page 5 ASSEMBLY INSTRUCTIONS (continued) STEP 2: ATTACHING LEG SUPPORTS TO INNER LEG Slide10mm Washer (A10) over 10mm Hex Head Bolt (A2) then insert bolt through hole in Linkage Bar “A” (P5). Secure bolts (A2) tightly. Inner Leg (P4), and screw into Repeat this step at all four joining points with Inner Legs (P4).
  • Page 6 ASSEMBLY INSTRUCTIONS (continued) STEP3: INSTALL SUPPORT TO JOIN INNER LEG AND OUTER LEG 1. Slide 8mm Washer (A6) over 8mm x 60mm Hex Head Bolt (A3) then insert bolt through hole Linkage Tube “B” (P6), Spacer “B” (A9) and Inner Leg (P4). Then add washer (A6) and lock nut (A7). See 3&3A.
  • Page 7 ASSEMBLY INSTRUCTIONS (continued) STEP4: INSTALL CENTER LOGO PANEL AND LABEL 1. Using 1/2’’ wood screws (A11) insert though side of center logo panel hole (P9), then screw in center support holes of the Inner Leg (P4). See 4 & 4B 2.
  • Page 8 STEP 5: CAREFULLY TURNING TABLE OVER EVENLY RAISE TABLE ON ONE SIDE DO NOT LET TABLE REST ON THE APRONS FOLD TABLE SO IT IS MORE COMPACT CONNECT TWO ENDS OF SAFETY STRAP...
  • Page 9 WITH SAFETY STRAP CONNECTED LIFT TABLE WITHOUT ALLOWING WEIGHT OF TABLE TO REST ON THE CASTERS AND INNER LEGS SET TABLE ON ALL 4 CASTERS AT ONCE STEP 6: ATTACHING SAFETY CATCH Insert Gravity Safety Catch (P2) through the inner leg hole and screw with 6mm Lock Nut( A5) Repeat on opposite side.
  • Page 10 This table must be stored indoors to avoid damage to the surface. Dampness and temperature changes can cause wood play surface to warp, swell or blister. Please visit: http://www.dmisports.com/table-tennis/ for information on the full line of Prince table tennis accessories. DMI Sports, Inc. Fort Washington, PA USA www.dmisports.com...
  • Page 11 TABLE TENNIS DEFINITIONS and RULES: - A “rally” is the period during which the ball is in play. - A ball is “In Play” once the ball is intentionally projected in service. - A “let” is a rally, the result of which is not scored. - A “point”...
  • Page 12 - If he strikes the ball more than once consecutively. - If he strikes the ball with the side of the racket blade which has an illegal surface. - If his ball strikes the side of the table below the edge. - If he, or anything he wears or carries, moves the playing surface while the ball is in play.
  • Page 13 PARTS RE-ORDER FORM Send this form along with your check or money order payable to: DMI SPORTS PT2500 1300 Virginia Drive., Suite 401 Ft Washington, PA 19034 DATE: ___________________________________________ www.dmisports.com NAME: __________________________________________________________ ADDRESS: __________________________________________________________ _________________________ PHONE CITY: ___________________________________ STATE: ______________________________ ZIP CODE:_________ UNIT TOTAL...
