OmniEye OmniOutlet User Manual

Outlet with hidden camera
Hide thumbs

Advertisement

Quick Links

Download this manual

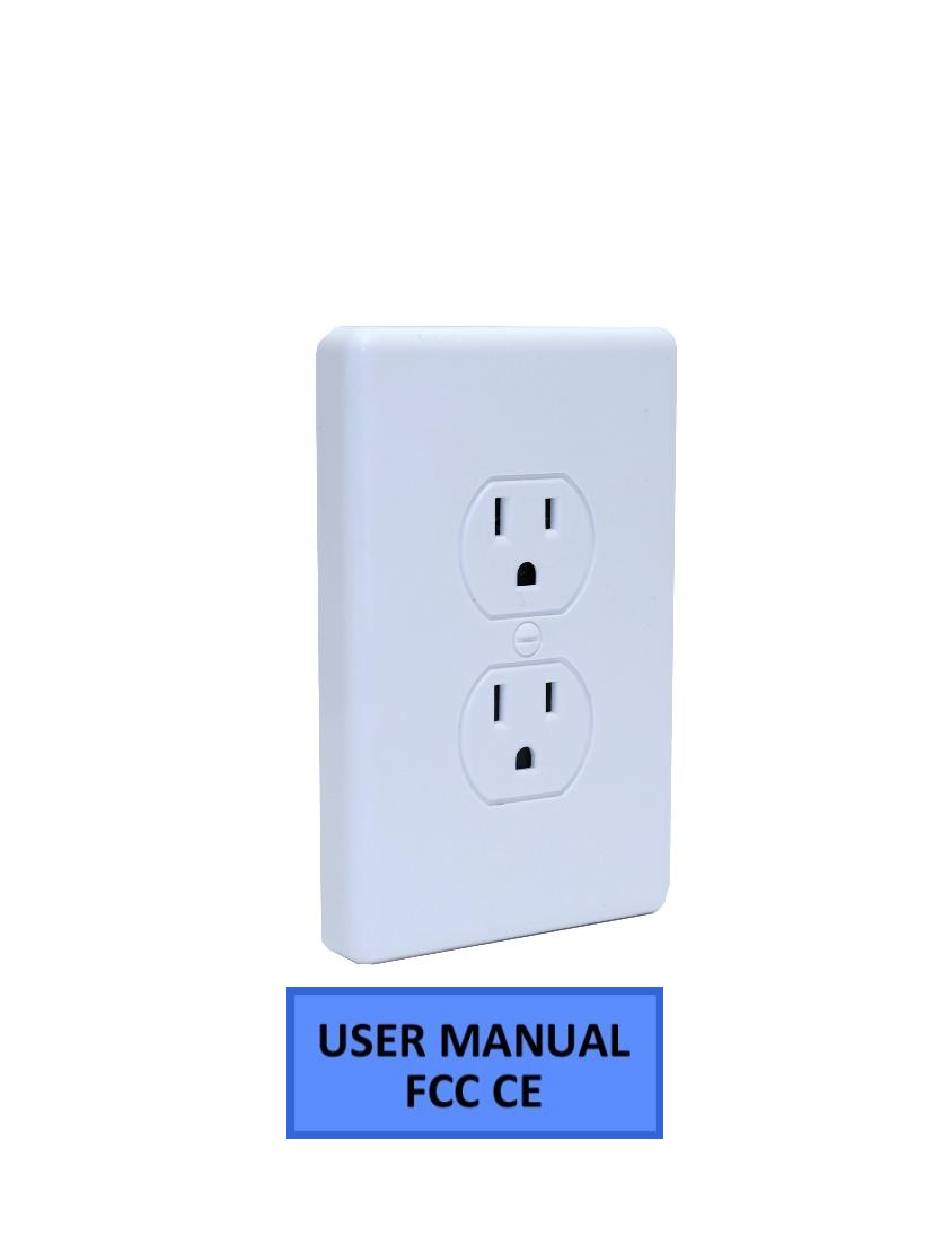

OmniEye Outlet with Hidden
Camera
SKU: OmniOutlet
1
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the OmniOutlet and is the answer not in the manual?

Questions and answers

Summary of Contents for OmniEye OmniOutlet

  • Page 1 OmniEye Outlet with Hidden Camera SKU: OmniOutlet Version 1.0...
  • Page 2 THANK YOU FOR PURCHASING THE OMNIOUTLET HIDDEN CAMERA Please read this manual before operating the camera and keep it handy. Your purchase should include:  1 x OmniOutlet  1 x Manual  1 x A/V Cable  1 x 16GB MicroSD Card ...
  • Page 3 GET FAMILIAR WITH YOUR OMNIOUTLET HIDDEN CAMERA Version 1.0...
  • Page 4 Version 1.0...
  • Page 5 IMPORTANT WARRANY INFORMATION: If the warranty sticker on your device has been removed or tampered with, your lifetime warranty will be voided. You may be charged fees or denied a return should this happen. HOW TO CHARGE THE CAMERA Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the product.

  • Page 6: Operating The Camera

    5. Allow the device to charge 6-8 hours before first use. Reinsert the battery into the outlet once charging is completely. OPERATING THE CAMERA HOW TO TURN ON THE CAMERA 1. Point the remote at the device and press the power button on the remote.
  • Page 7 Green light will come on, and the device will be in standby mode. HOW TO RECORD VIDEO 1. When the camera is in Standby Mode, press the “Continuous Recording Mode” button (see page 4). The Indicator LED will flash two times. 2.
  • Page 8 2. Once the photo is taken, the light will turn back to green and once again be in standby mode. HOW TO RECORD MOTION DETECTION 1. When the camera is in Standby Mode, press the “Motion Detection” button (see page 4). 2.
  • Page 9 Note: Only OmniX products come with a PIR sensor installed. OmniEye products do not have such a feature. 1. While the camera is in Standby Mode, press the “PIR Sensor” button (see page 4).
  • Page 10 CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniOutlet comes with an A/V cable that is used to connect the device to a monitor/TV so that you can adjust various settings. See page 3 to locate the AV port on your device.
  • Page 11 5. A menu will display on the screen with various options (Use OK, UP, Down, and Menu on the remote to navigate the menu system): a. Resolution – Select from different resolutions. b. Time Stamp – Use this option to enable or disable the date/time stamp on videos.
  • Page 12 f. Motion Detection – Adjust motion detection sensitivity here. g. Setup – Enter this menu for additional settings. h. Setup -> Format – Use this to format your MicroSD card. All data on the disk will be permanently erased. i. Setup -> Language – Choose your language.
  • Page 13 n. Setup -> Time Input – Set the current time in military format. o. Setup -> System Reset – Use the is to factory reset the device. p. Setup -> FW Upgrade – This is not active on this device. q.
  • Page 14 2. To remove the SD card, gently push the card in so that it clicks. The internal spring tension will eject the card. MicroSD cards 65GB and above will require special formatting to work. The device will not function with these cards if they are not properly formatted beforehand.
  • Page 15 2. Locate “Removable Disk” inside the (My) Computer folder.  AutoPlay Removable Disk > Open folder to view files Or… Go to Start > Computer > Removable Disk Version 1.0...
  • Page 16 3. Open the Removable Disk drive. 4. Double click the file you want to view.  VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
  • Page 17  To save a file, you want to select the file, right click your mouse on the file name, and then choose “Copy” from the menu. Next, go the location you want the save the file to. Right click your mouse, and then chose “Paste.”...

  • Page 18: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the battery is charged.  Make sure the battery is completely inserted into the outlet. THE DEVICE HAS CRASHED  Press the reset button one time while the device is on. DEVICE CONTINUALLY RECORDS IN MOTION MODE ...
  • Page 19 conditions can set off motion detection. Try adjusting the motion detection sensitivity via the setup menu. OTHER PROBLEMS  Call our technical support at 770–694–6923 Version 1.0...

  • Page 20: Specifications

    SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per 30 FPS Second Vision Angle 65° Battery Life 10 Hours Continuous Recording Up to 30 Days PIR Mode (if applicable) Motion 8 meters for straight-line Detection distance Photo 2560x1920 Resolution Photo Format .JPG Type of Memory External MicroSD Card...
  • Page 21 2.0 USB Player Software VLC recommended Video H.264 Compression QUALITY CONTROL CHECKLIST ☐ Remote ☐ A/V Cable ☐ AC Charging Adapter ☐ ___GB MicroSD Card ☐ MicroSD Card Reader ☐ Manual ☐ OmniOutlet QC Tech: ___________________________ Date: ______________________________ Version 1.0...
