A1BabyCare E005 Manual

Combination pram and stroller
Hide thumbs

Advertisement

Quick Links

Download this manual
A1BabyCare
Combination Pram and Stroller E005
Designed in Australia
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the E005 and is the answer not in the manual?

Questions and answers

Summary of Contents for A1BabyCare E005

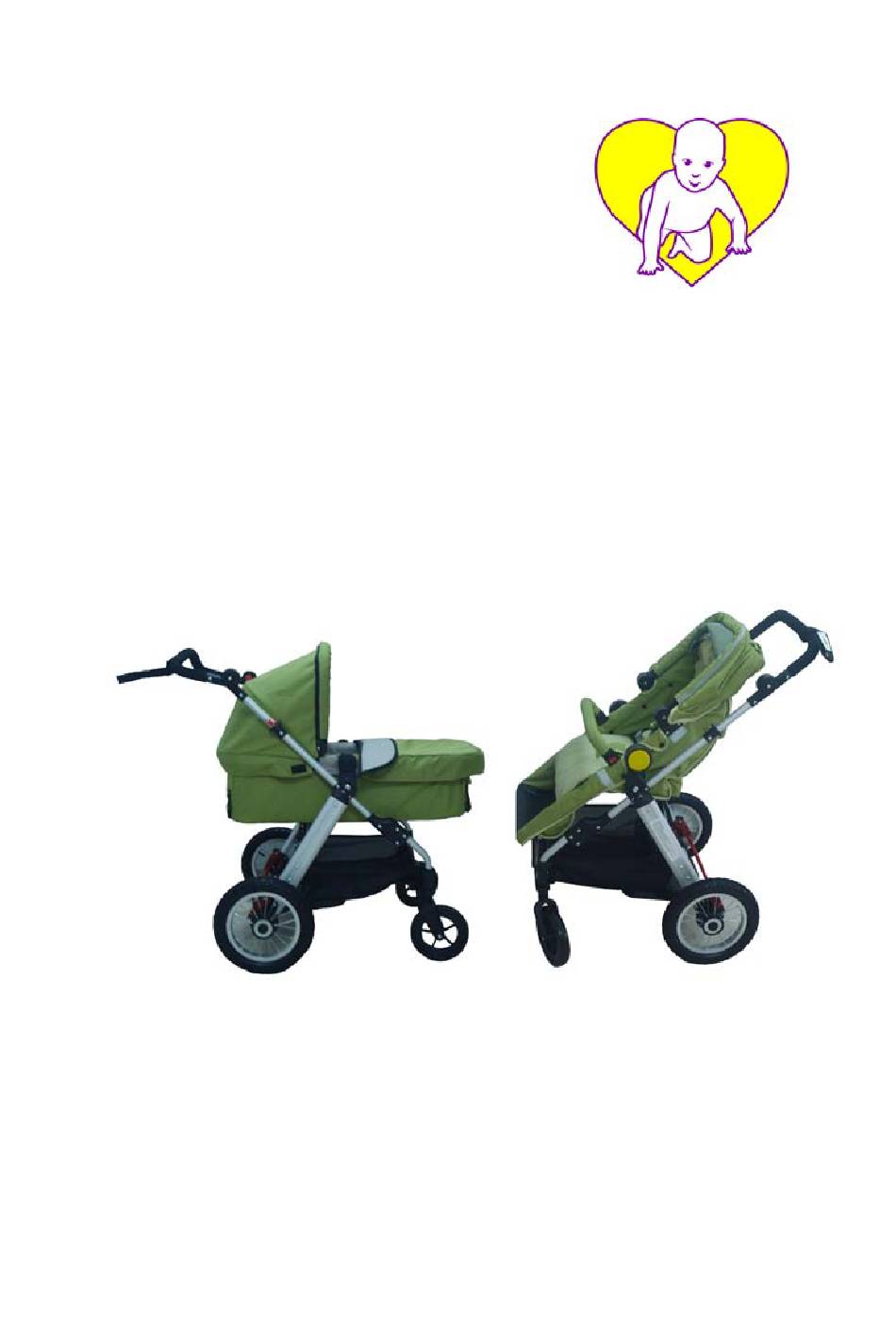

  • Page 1 A1BabyCare Combination Pram and Stroller E005 Designed in Australia English...
  • Page 2 Read these instructions before assembling your pram/stroller. Keep these instructions for future reference. WARNING: TO AVOID INJURY OR DEATH: ALWAYS APPLY THE BRAKES WHENEVER THE PRAM/STROLLER IS STATIONARY. • DO NOT LEAVE CHILDREN UNATTENDED. • SECURE THE CHILD IN THE HARNESS AT ALL TIMES.
  • Page 3 WARNING: PARCELS OR ACCESSORY ITEMS, OR BOTH, PLACED ON THE PRAM/STROLLER MAY CAUSE THE PRAM/STROLLER TO BECOME UNSTABLE. EXCEEDING ANY RECOMMENDED MAXIMUM WEIGHTS IS UNSAFE AND MAY CAUSE THE PRAM/STROLLER TO BECOME UNSTABLE. NEVER LEAVE CHILD UNATTENDED. CHILD MAY SLIP INTO LEG OPENINGS AND STRANGLE.
  • Page 4 WARNING: DO NOT USE THE STROLLER SEAT WITH ANY OTHER MODELS OF PRAM/STROLLER. DO NOT USE ANY OTHER MODELS OF STROLLER SEAT WITH THIS PRAM/STROLLER. THE SEAT OPENING STRAP MUST ALWAYS BE FITTED WHEN THE STROLLER SEAT IS IN USE. DO NOT REMOVE THE STROLLER SEAT FROM THE STROLLER IF THERE IS A CHILD IN THE SEAT.

  • Page 5: Table Of Contents

    CONTENTS SAFETY INFORMATION SPECIFICATIONS WHAT IS INCLUDED ASSEMBLY USING YOUR PRAM/STROLLER MAINTENANCE Version 13 © 2015 Page 5...

  • Page 6: Safety Information

    SAFETY INFORMATION Plastic packaging can create a suffocation hazard. Dispose of plastic packaging as soon as possible after removing the pram/stroller components. Keep all plastic packaging away from young children. The bassinet is for the use of one child up to a maximum of 12 kg (26 lb).
  • Page 7 When adjusting the seat recliner apply the brakes. Press the button with one hand and firmly hold the end of the seat with the other hand, to prevent sudden movement. Remove your child from the stroller before removing the seat from the stroller.

  • Page 8: Specifications

    SPECIFICATIONS All values given in the table below are approximate. Maximum weight for bassinet 12 kg (26 lb) Maximum weight for stroller seat 30 kg (66 lb) Maximum weight for the base tray 4 kg (8 lb) Maximum total load for all seatback pockets 1 kg (2 lb) Maximum total load for all bassinet pockets 1 kg (2 lb)

  • Page 9: What Is Included

    ASTM F833-13 WHAT IS INCLUDED Standard Items included: 1 Bassinet 1 Seat opening strap for the stroller seat 1 Footmuff for the stroller seat 1 Frame 1 Handbar for the stroller seat 2 Padded seat covers 1 Raincover, this fits the seat and the bassinet 1 Stroller seat 1 Suncover, this fits the seat and the bassinet 2 Wheels 30 cm diameter, as rear wheels...

  • Page 10: Assembly

    Unpack all items from the box and check the contents. Keep plastic bags away from children. Videos showing assembly of the pram/stroller can be viewed at: E005videos.a1babycare.com Stroller Seat Refer to illustration 1. Attach the seat opening strap (1) to the rear of the stroller seat (2).
  • Page 11 Illustration 1 Frame Refer to illustrations 2A and 2B. Unfold the frame (5). Undo the snaplock on the folded lock strap on the left of the frame. Pull up the handlebar to open the frame and ensure that the frame is locked in the open position. Pass the folded lock strap around the rear strut and close the snaplock, to ensure that the folded lock strap is well clear of the rear wheel.
  • Page 12 Ensure the brake lever (6) is in the upright position so it does not interfere when inserting the rear wheels. Remove the foam padding from the rear wheels (7) and insert the rear wheels into the frame. Remove the foam padding from the front wheels (8) and insert the front wheels into the frame.
  • Page 13 Illustration 2B Bassinet Refer to illustrations 3A to 3D. Remove the cover (10) from the bassinet(9). Remove the mattress (11) and lining (12) from the bassinet(9). Using the nylon tab (13) pull the metal wire (14) to the metal clips (15).
  • Page 14 Repeat this for the other end of the metal wire, so that both ends of the wire have engaged the clips. Repeat the above two steps for the metal wire and clips at the other end of the bassinet. Put the lining back in the bassinet then put the mattress back in the bassinet.
  • Page 15 Illustration 3B Version 13 © 2015 Page 15...
  • Page 16 Illustration 3C Version 13 © 2015 Page 16...
  • Page 17 Illustration 3D Version 13 © 2015 Page 17...

  • Page 18: Using Your Pram/Stroller

    USING YOUR PRAM/STROLLER Videos showing use of the pram/stroller can be viewed at: E005videos.a1babycare.com Removing the Stroller Seat Refer to illustrations 4A and 4B. Apply the brakes so the stroller does not move. Press the two white buttons (18) on each side of the frame, at the base of the seat fitting sockets.
  • Page 19 Illustration 4B Do not lift the seat by the hood. Do not release the seat while a child is sitting in the seat. Removing the Bassinet Refer to illustrations 4A and 4B. Apply the brakes so the pram does not move. Press the two white buttons (18) on each side of the frame, at the base of the seat fitting sockets.
  • Page 20 releases the bassinet, the bassinet may then be lifted by the combination handle and hood adjuster. If carrying the bassinet while a baby is lying in the bassinet, hold the bassinet firmly by the combination handle and hood adjuster. Use your other hand to hold the end of the bassinet and stabilise the bassinet, to prevent the bassinet tipping.
  • Page 21 Press the large yellow button (21) at the centre of the seat labelled "PRESS BUTTON IN FULLY TO ADJUST SEAT". The button must be pushed in fully to release the seat. With the button pressed in fully move the end of the seat (22) so that the seat rotates into the desired position.
  • Page 22 Illustration 5B Adjusting the Bassinet The angle of the bassinet does not adjust. The black buttons do not perform any function. Do not attempt to adjust the bassinet. Reversing the Stroller Seat Apply the brakes so the pram does not move. Do not remove the stroller seat from the stroller if there is a child in the seat.
  • Page 23 Release the stroller seat as described in Removing the Stroller Seat. Turn the seat to face in the opposite direction, then insert the stroller seat as described in Inserting the Stroller Seat or Bassinet. Reversing the Bassinet Apply the brakes so the pram does not move. If there is a baby in the bassinet ensure that you keep the bassinet horizontal and that the baby is safe.
  • Page 24 Illustration 6 Releasing the Brakes Refer to illustration 7. Push up on the red brake bar (23) so that the brakes are disengaged from the rear wheels (7). Ensure that both rear wheels are released. Version 13 © 2015 Page 24...
  • Page 25 Illustration 7 Folding the Pram/Stroller Refer to illustrations 8A to 8C. If the pram has the bassinet fitted, remove the bassinet. If the stroller has the seat fitted: • put the seat forward facing • put the seat in the second most upright position, so that the seat is parallel to the frame, as shown in illustration 8A.
  • Page 26 Pull up the red safety catch (25). Pull up the release levers (26) on both sides of the frame at the same time, and allow the frame to fold flat. To reduce the folded size: • fold the handlebar forward •...
  • Page 27 Illustration 8B Version 13 © 2015 Page 27...
  • Page 28 Illustration 8C To secure the stroller in the folded position, pass the folded lock strap around the rear strut and the round aluminium push tube, then close the snaplock. To carry the frame pick it up by one or both of the large rear supports.
  • Page 29 Ensure that the handlebar is unfolded and the quick release rear wheels are inserted. Release the folded lock strap. Lift up the handlebar and the frame will unfold. Check that both of the frame locking clips (27) at the front of the frame are locked closed.
  • Page 30 crotch strap length. Setting the Seat Shoulder Strap Height Refer to illustrations 10A and 10B. Remove the padded seat liner (28). The shoulder strap (32) can be adjusted to 3 positions. The highest position (29) is where the shoulder strap does not pass through any of the loops (30,31).
  • Page 31 Illustration 10A Version 13 © 2015 Page 31...
  • Page 32 Illustration 10B Adjusting the Seat Shoulder Strap Length Refer to illustration 11. Release the shoulder strap (32) from the harness clip. If necessary remove the shoulder pads. Slide the shoulder harness strap through the plastic loop (33) so that the shoulder strap (32) is the correct length. Ensure that adjusting the shoulder harness strap does not create a loop that can fit over your child's head.
  • Page 33 shorter by sliding the plastic loop (33) towards the black harness buckle catch (34). Illustration 11 Adjusting the Seat Waist Strap Length Refer to illustration 12. Slide the waist harness strap (35) through the plastic loop (36) so that the waist strap is the correct length. Version 13 ©...
  • Page 34 Illustration 12 Adjusting the Seat Crotch Strap Length Refer to illustration 12. Slide the crotch harness strap (37) through the plastic loop (38) so that the crotch strap is the correct length. Closing the Seat Harness Buckle Refer to illustrations 13A and 13B. Slide the shoulder strap harness buckle catch (34) onto the waist strap harness buckle catch (39).
  • Page 35 Illustration 13A Then push this combination (34 and 39) into the central harness buckle catch (40). Repeat this for the shoulder strap harness and the waist strap harness on the other side. Version 13 © 2015 Page 35...
  • Page 36 Illustration 13B Opening the Seat Harness Buckle Refer to illustration 14. Press the button (41) at the centre of the harness buckle, this releases the harness straps. Ensure that each shoulder strap buckle catch (34) separates from the corresponding waist strap buckle catch (39).
  • Page 37 Illustration 14 Correct Fitting of the Seat Harness Refer to illustration 15. Set the shoulder strap (32) to the lowest height setting that is above the height of the child's shoulder. Check that the shoulder straps (32), waist straps (35) and crotch harness strap (37) are adjusted to the correct length.
  • Page 38 circulation of blood. Each time a child is put in the stroller seat check that the harness straps are adjusted correctly. If clothing is removed or extra clothing fitted, adjust the straps as required. Ensure that the shoulder straps (32) and the waist straps (35) are connected to the harness buckle (40).
  • Page 39 Inserting the Quick Release Wheels Gently push the metal plug into the socket until it clicks. Check that the wheel is firmly fitted into the socket. Removing the Quick Release Wheels Push up the red catch near the wheel, and at the same time pull the wheel out from the socket.
  • Page 40 Illustration 16 Fitting the Raincover to the Stroller Seat Refer to illustration 17. Ensure that the ventilation holes in the stroller seat are not blocked. Put the hood of the stroller seat out fully, to cover your child's head. The hood end of the raincover has stitching that matches the ribs on the hood of the stroller seat.
  • Page 41 Illustration 17 Fitting the Raincover to the Bassinet Refer to illustration 18. Put the hood of the bassinet out fully, to cover your child's head. The hood end of the raincover has stitching that matches the ribs on the hood of the bassinet. Put the back of the hood end of the raincover just below the hood of the bassinet.
  • Page 42 Illustration 18 Fitting the Suncover to the Stroller Seat Refer to illustration 19. Put the hood of the stroller seat out fully, to cover your child's head. Fit the top of the suncover over the front of the hood and attach the velcro tabs on the sides of the suncover to the velcro tabs (43) on the side of the seat.
  • Page 43 Illustration 19 Fitting the Suncover to the Bassinet Refer to illustration 20. Put the hood of the bassinet out fully, to cover your child's head. Fit the top of the suncover over the front of the hood and attach the velcro tabs on the sides of the suncover to the velcro tabs (44) on the side of the bassinet.
  • Page 44 Illustration 20 Fitting the Footmuff to the Stroller Seat Refer to illustrations 21A to 21C. Fit the foot end of the footmuff (46) under the footrest of the stroller seat. Then pass the top of the footmuff (47) under the child handbar (45), wrap it over the top of the handbar, then snaplock the top of footmuff.
  • Page 45 Illustration 21A Version 13 © 2015 Page 45...
  • Page 46 Illustration 21B Version 13 © 2015 Page 46...
  • Page 47 Illustration 21C Adjusting the Bassinet Harness Refer to illustration 22. Adjust the bassinet harness by setting the waist strap length, and the crotch strap length. Slide the waist strap (50) through the plastic loop (51) so that the waist strap is the correct length. Slide the crotch strap (52) through the plastic loop (53) so that the crotch strap is the correct length.
  • Page 48 Illustration 22 Closing the Bassinet Harness Buckle Refer to illustration 23. Push each harness clip (54) into the harness buckle (55). Ensure that the harness clips are fully engaged in the harness buckle. Version 13 © 2015 Page 48...
  • Page 49 Illustration 23 Opening the Bassinet Harness Buckle Refer to illustration 24. Press both buttons (56) at the side of the harness buckle (55) to release the harness clips (54). The harness clips can then be pulled out to release the waist straps (50). Version 13 ©...
  • Page 50 Illustration 24 Version 13 © 2015 Page 50...

  • Page 51: Maintenance

    MAINTENANCE When you Assemble your Pram/Stroller When you first assemble your pram/stroller perform the following maintenance: • Check the tyre pressure. Do not over-inflate the tyres. • Check that all nuts and bolts are tight. Do not over-tighten bolts as the thread may then be stripped. •...
  • Page 52 • Lubricate moving parts. Bearings can be lubricated with a light oil, other parts may be lubricated with a non-toxic grease. Care and Safety Do not expose the pram/stroller to salt water, salt, acids, alkalis or chemical solvents. Do not leave the pram/stroller exposed to sunshine for long periods. Do not use harsh detergents or hot water.
  • Page 53 replacing the hood support it slides back into the loop in the seat cover; take care that the hood support does not catch on the fabric or damage it. The hood for the bassinet cannot be washed in a washing machine. The mattress for the bassinet cannot be washed in a washing machine.
