HD Video Board upgrade instructions for SPA22 & SP32
Last updated 2014-01-08
This installation guide will help you to upgrade your SPA22 or SP32 from the "Standard Video Board"
to the "HD Video Board" (written as HDVB in this installation guide)
Note! This requires that you already have the "HD Audio Board" installed in your SPA22/SP32!
If this board is not installed, please first do this. Go to step 4. Installing HD Audio Board on page 9.
1. Dissemble and assemble the video boards
1.1 Make sure the unit is turned OFF and no AC chord is connected to the unit!
1.2 Start with unscrewing the ten torx-screws and then remove the top cover

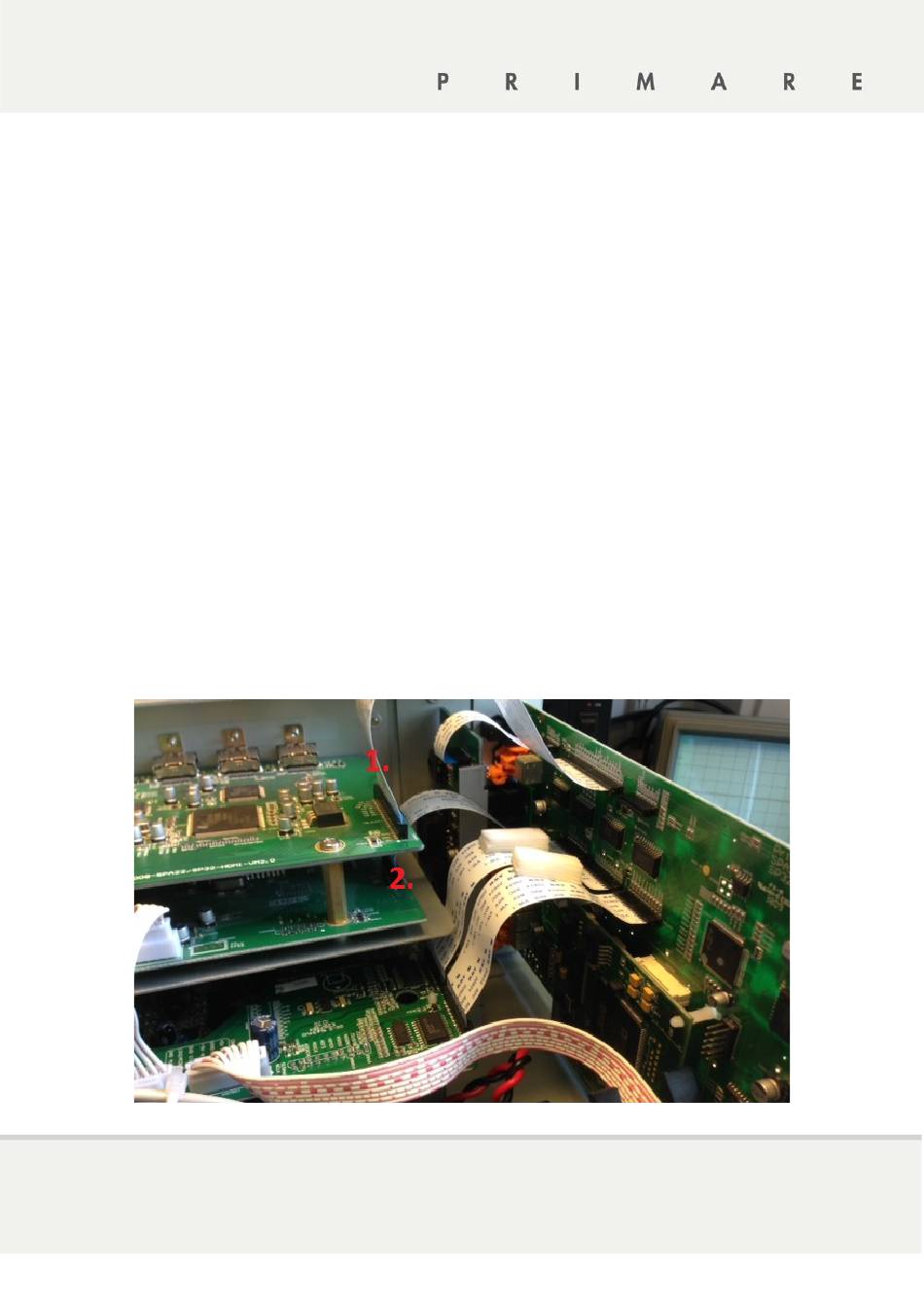

1.3 Disconnect FFC (Flat Flexible Cable) number 1 from the end which is connected to the video
board (left side in the picture below) and keep it connected to the audio board
1.4 Disconnect FFC number 2 on both ends. This one is not needed anymore
Primare AB • Limstengatan 7 • SE-21616 Limhamn • Sweden • Tel +46 40 6548800 •
www.primare.net
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Primare SPA22
Summary of Contents for Primare SPA22
- Page 1 HD Video Board upgrade instructions for SPA22 & SP32 Last updated 2014-01-08 This installation guide will help you to upgrade your SPA22 or SP32 from the “Standard Video Board” to the “HD Video Board” (written as HDVB in this installation guide) Note! This requires that you already have the “HD Audio Board”...
- Page 2 1.5 Disconnect cable number 3 on both ends. This one is not needed anymore 1.6 Disconnect the power cable (number 4) from the video board and keep it connected in the other end. Primare AB • Limstengatan 7 • SE-21616 Limhamn • Sweden • Tel +46 40 6548800 • www.primare.net...
- Page 3 Included together with your new HDVB, is a new 12 pin FFC which will be connected between the HDVB and HD Audio Board (FFC number 5 in the picture below) Primare AB • Limstengatan 7 • SE-21616 Limhamn • Sweden • Tel +46 40 6548800 • www.primare.net...
- Page 4 2. How to update DSP & MCU firmware 2.1 Connect a null modem cable between the computers serial port and the SP32/SPA22, make sure their mains switch is OFF before doing so. If an USB to RS232 adapter is used we recommend one using the FTDI chipset, those usually works best with this kind of applications.
- Page 5 If you get a “timeout error” instead of “link okay”, double check the RS232 connection and turn OFF the main switch ON the unit and set it in programming mode again (repeat from step 2.2). Primare AB • Limstengatan 7 • SE-21616 Limhamn • Sweden • Tel +46 40 6548800 • www.primare.net...
- Page 6 If the program stops to answer (if ”not responding” is shown in the window title) just leave it be. The firmware will be downloaded in the background and the text ”write complete” will be displayed in the white field. Primare AB • Limstengatan 7 • SE-21616 Limhamn • Sweden • Tel +46 40 6548800 • www.primare.net...
- Page 7 2.7 After the programming is completed, the text “write complete” will appear. Exit the downloader, remove the RS232 cable and restart the unit Primare AB • Limstengatan 7 • SE-21616 Limhamn • Sweden • Tel +46 40 6548800 • www.primare.net...
- Page 8 Your board might already have the latest HDVB firmware! 3.1 Connect a null modem cable between the computers serial port and the SP32/SPA22, make sure their mains switch is OFF before doing so. If an USB to RS232 adapter is used we recommend one using the FTDI chipset, those usually works best with this kind of applications.
- Page 9 Take the new HD-audio board and remove the resistor and reconnect the cable from the analog in/out board to the pad as shown in the picture below Primare AB • Limstengatan 7 • SE-21616 Limhamn • Sweden • Tel +46 40 6548800 • www.primare.net...
- Page 10 4.2.10 Place the 3 screws (1x under unit, 2x on backside). 4.2.11 Go to step 1. Dissemble and assemble the video boards on page 1. Primare AB • Limstengatan 7 • SE-21616 Limhamn • Sweden • Tel +46 40 6548800 • www.primare.net...
