Wittime WT2079 Operating Instructions Manual

Wittime WT2079 Operating Instructions Manual

Digital wireless thermometer & hygrometer with high precision sensor

Advertisement

Digital Wireless Thermometer & Hygrometer
With High Precision Sensor
OPERATING INSTRUCTION
Base unit: WT2079
Wireless sensor: WT2022B
Remove the protective film from the display before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WT2079 and is the answer not in the manual?

Questions and answers

Joann
March 10, 2025

How to keep everything visible?

1 comments:
Mr. Anderson
March 10, 2025

To keep everything visible on the Wittime WT2079, remove the protective film from the display before use.

This answer is automatically generated

Summary of Contents for Wittime WT2079

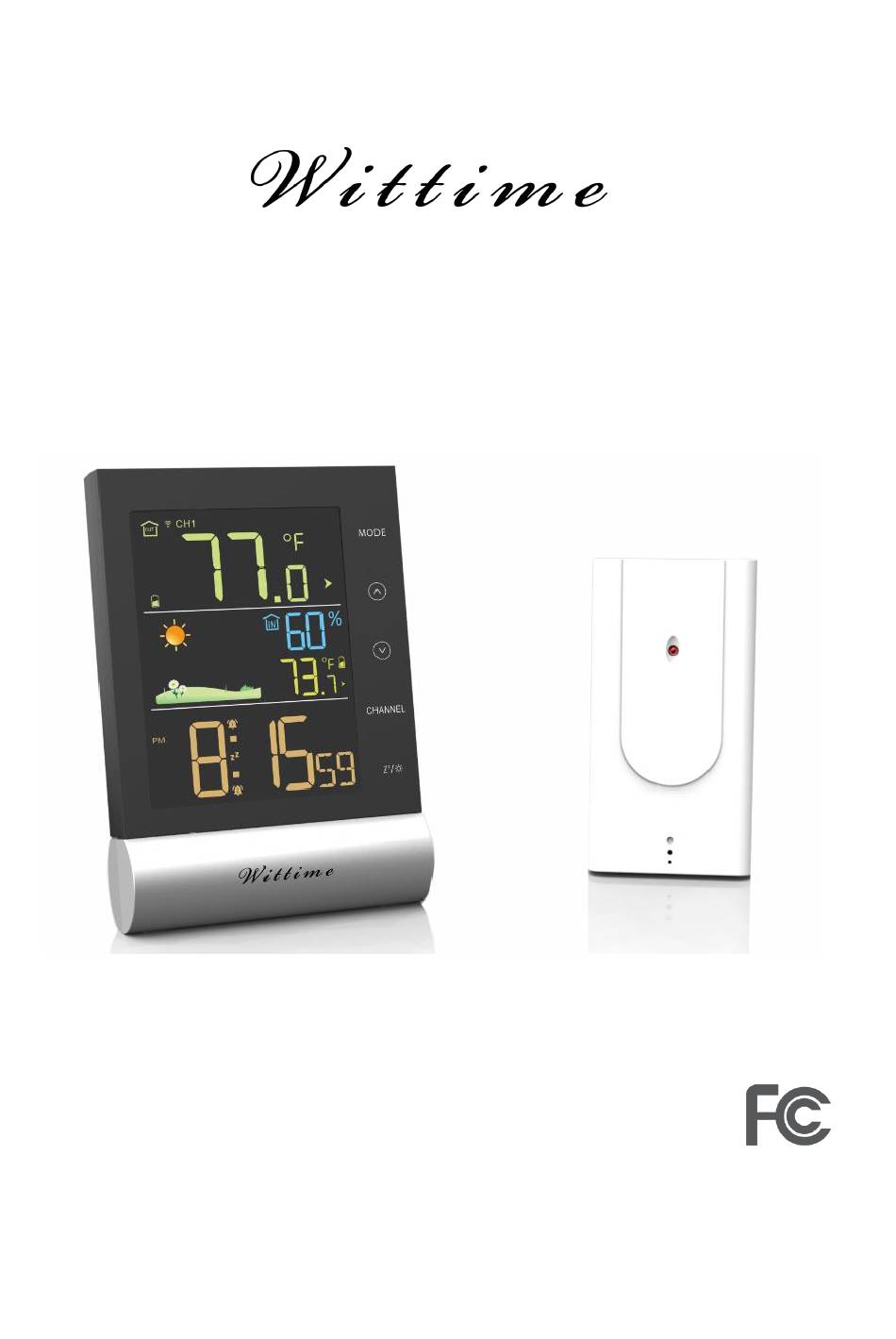

  • Page 1 Digital Wireless Thermometer & Hygrometer With High Precision Sensor OPERATING INSTRUCTION Base unit: WT2079 Wireless sensor: WT2022B Remove the protective film from the display before use.
  • Page 2 Safety Read the following advice carefully and store these operating instructions in case you want to reread something later. If you give the item to someone else, give them these operating instructions as well. • This device may be used by children over 8 years of age and over, as well as by persons with reduced physical, sensory or mental abilities, or lack of experience and / or knowledge if they are supervised or instructed regarding the safe use of the equipment and have understood the resulting hazards.
  • Page 3: Unpacking And Checking

    Unpacking and checking 1. Remove the device from the packaging, remove all protective films and keep the packaging materials out of the reach of children. 2. Dispose of the materials separately according to type. 3. Check that all the items that should be included in the delivery are present and whether the base unit displays any damage.
  • Page 4 Overview of the thermometer & hygrometer Base unit – front Base unit –Back & Side...
  • Page 5: Wireless Sensor

    Operating elements and parts of the base unit Operating buttons Button MODE * Display alarm time * Activate settings mode * Save changes to settings Button (Up) * Set values (increase) * Display stored MAX and MIN values * Activate/Deactivate alarm (on alarm mode) Button (Down) * Set values (decrease)
  • Page 6: Initial Setup

    Red pilot light Loop for hanging Sliding switch 1 2 3: Set sensor number (transmission channel) Battery compartment If you wish to use only the wireless sensor included in the delivery, as a general rule, the transmission channel does not need to be changed. This is only necessary if you wish to use additional wireless sensors;...
  • Page 7 - If possible, use alkaline batteries instead of zinc-carbon batteries. Alkaline batteries last longer, particularly outside in low temperatures. Using addition wireless sensors The device comes with one wireless sensor. However, you can operate it with up to three wireless sensors. Additional wireless sensors are available via our online shop. •...
  • Page 8: Setting The Time And Date Manually

    B) Battery operation 1. Open the battery compartment cover. 2. Insert 3 LR03 (AAA) / 1.5 V batteries facing in the direction indicated on the bottom of the battery compartment. Make sure that the poles of the batteries are correct (+/-). 3.
  • Page 9: Choosing The Location

    - Hours - Minutes - 12/24 Hour format (in the 12-hour format, the afternoon hours are shown with “PM” on the display) - DST ON/OFF (If on, DST will be shown on the display) - Temperature unit (° C or ° F) - Language (only refers to how the days of the week are displayed) 8.
  • Page 10: Display Indicators

    When installing the device on a wall, there must be no electrical cables, gas or water pipes in the wall at the installation site. Otherwise there is a risk of electric shock! • You can put the base unit on the desk or hang it up. Wireless sensor •...
  • Page 11: Alarm Function

    Hour Daylight saving time (DST) Minute Snooze symbol Second Year Alarm symbol Month PM symbol Date Languages (only refer to day of week) Alarm function The base unit allows you to set two different alarm times. For example, you can set an alarm for the morning and for after an afternoon nap by activating both alarm times.
  • Page 12: Snooze Function

    You will be woken by the alarm at the set time, and the sound will become more and more intense as the alarm continues. • Snooze - Press the button to stop the alarm for approx. 5 minutes. • Switch off the alarm completely - Press any button on the base unit (apart from ), to stop the alarm.
  • Page 13: Weather Forecast

    Radio frequency signal reception symbol 22 Indoor temperature trend Current transmission channel to the 23 Indoor temperature base unit Transmission channel automatic 24 Indoor symbol switching mode Temperature unit: ° C or ° F 25 Weather symbol Outdoor temperature trend 26 Outdoor low battery indicator Indoor humidity 27 Outdoor temperature...
  • Page 14 Sunny Partly sunny Cloudy Rainy Heavy rain Snow Heavy snow Ice alert If the wireless sensor measures a temperature between 33.8 ° F and 30.2° there is a risk of frost and a snowflake symbol will flash. If the temperature falls below 30.0°...
  • Page 15: Low Battery Indicator

    DST function The device will adapt to winter / summer time automatically if DST switches ON. Summer time: the second Sunday of March at 1:59 59’ changes to 3:00 00’ Winter time: the first Sunday of November at 1:59 59’ changes to 1:00 00’ Switching the light on A) Battery operation Press any buttons to light up the display for 10 seconds.
  • Page 16: Troubleshooting

    • The low battery symbol for the wireless sensor shows that the batteries need changing for the channel number shown. • When you change the batteries all the settings are lost. • Always exchange all batteries and only use those listed in the ‘Technical Data’. •...
  • Page 17: Technical Data

    2. Wipe the base unit with a slightly damp cloth when required. 3. Dry off the device completely before connecting it with the power adapter again. Technical Data Base unit Model: WT2079 Power consumption: 5.0V 150 mA Power supply: 3 x LR03 (AAA) / 1.5 V Temperature measuring range: 14.2°...
  • Page 18: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This manual is also suitable for:

Wt2022b
