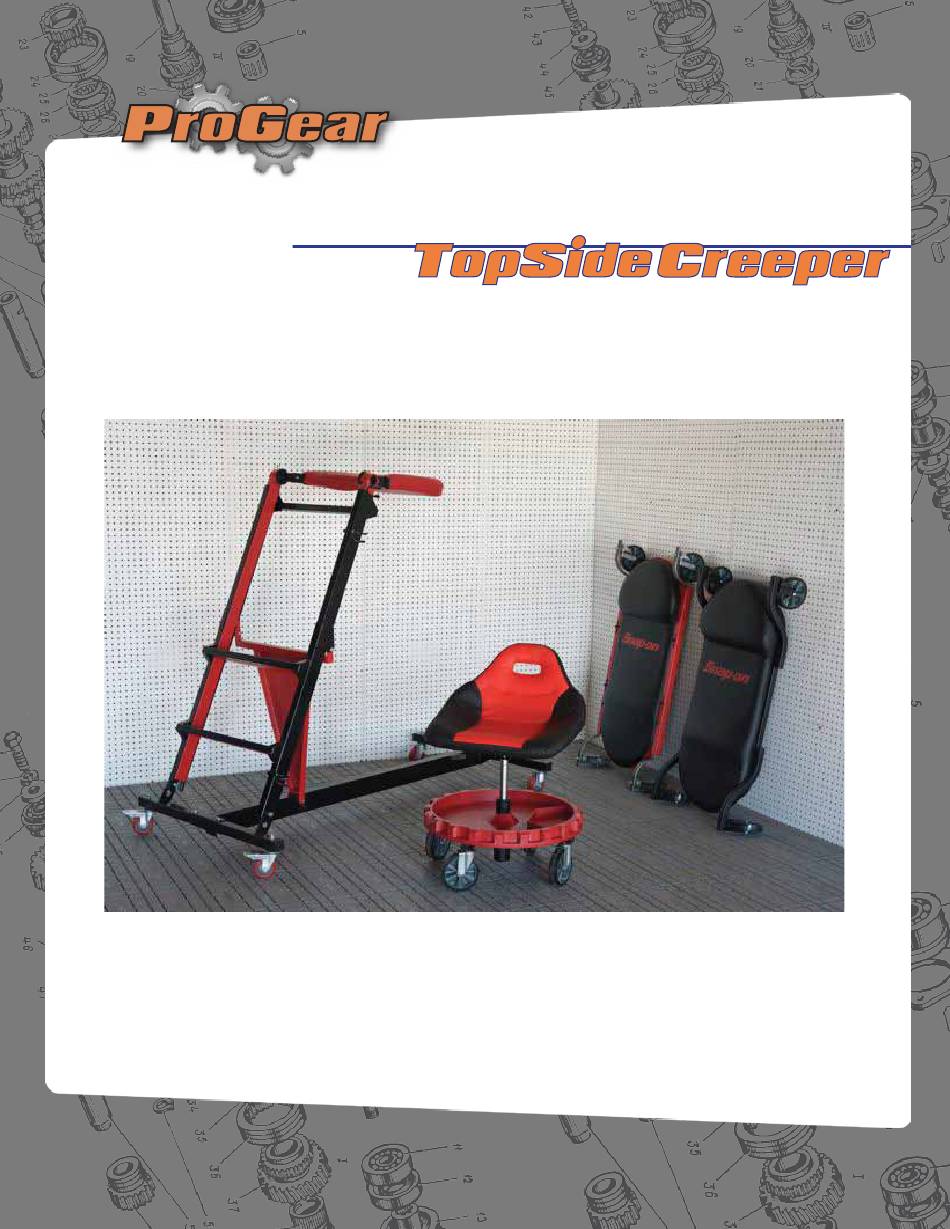

Assembly and Usage Instructions
The ProGear TopSide Creeper provides safe and productive access to the engine compartment. The new ProGear model
is wider, reaches higher and can access more of the vehicle due to the unique I-Base Design.
2800 Bryan Road; Van Buren, AR 72956
T
479-474-3460
F
479-431-6875
ALL-NEW
PROFESSIONAL
The
Advertisement
Table of Contents
Summary of Contents for ProGear TopSide Creeper
- Page 1 ALL-NEW Assembly and Usage Instructions The ProGear TopSide Creeper provides safe and productive access to the engine compartment. The new ProGear model is wider, reaches higher and can access more of the vehicle due to the unique I-Base Design. 2800 Bryan Road; Van Buren, AR 72956...
- Page 2 TraXion Engineered Products | ProGear Line Instructions v1 | 3-700 Parts Sliding Ladder Section Lower Ladder Section I-Base Front Outrigger with Casters Rear Outrigger with Casters Padded Deck Cable Management Rear Outrigger Hinge Pins Pigtails Fasteners Front Outrigger Ladder Assembly...
- Page 3 TraXion Engineered Products | ProGear Line Instructions v1 | 3-700 Assembly With the Lower Ladder Section folded down, slide the Upper Assemble the cable management Ladder Section into the channels of the Lower Ladder system by rst threading the stop- Section.
- Page 4 Usage Picture 1 Adjusting the Deck The ProGear Topside Creeper folds at and compact for easy storage. The padded deck can also be secured in two locations. The traditional location as seen in Picture 1 and the upright location as shown in Picture 2.
- Page 5 THIS IS NOT A LADDER. THIS IS A TOOL TO REACH THE TOPSIDE OF ENGINES FOR MAINTENANCE. INSPECTION Inspect upon receipt and before each use. Never climb on the Topside Creeper if damaged, bent or broken. Make sure all joints, nuts and bolts are tight. Make sure locking pin is securely in place before climbing.
