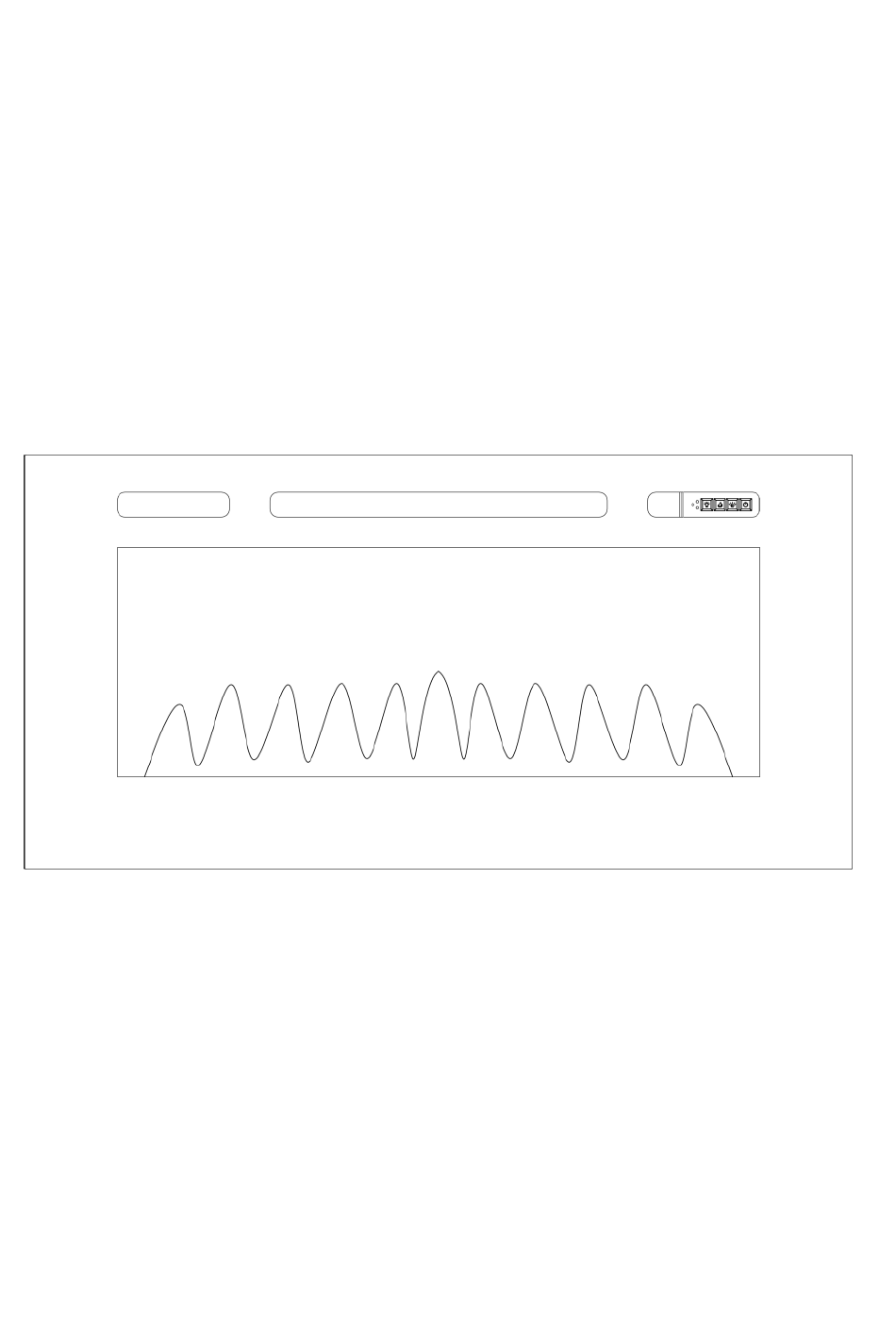

- Page 1 Built In Electric Fireplace DAYTONA 1030, 1230, 1530 & 1730 INSTALLATION AND OPERATION INSTRUCTIONS Please read the instructions carefully before installation or use and keep for future reference...
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Information ·········································································2 2. Technical Specifications ··················································································4 3. Parts and Hardware ························································································5 4. Appliance Dimensions ·····················································································7 5. Installation Instructions ··················································································8 6. Operating Instructions ················································································· 14 6a. Manual Control Panel ············································································ 15 6b. Remote Controls ···················································································· 16 7. Maintenance ································································································ 22 8. -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 4 1.10 To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet. 1.11 Keep the power cord away from hot surfaces and hot conditions. Do not route the power lead in front of the appliance.
-
Page 5: Technical Specifications
Should the fuse or plug need replacing, and you are competent to do so, it must be replaced with a 13A fuse or plug being 13A BS1363A approved. 2. TECHNICAL SPECIFICATIONS Model No.: Daytona Supply Voltage: AC 220-240V 50Hz Maximum power consumption: 2KW Power for flame effect:... -
Page 6: Parts And Hardware
Type of heat output / room temperature control Single stage heat output and no room temperature control Two or more manual stages, no room temperature control With mechanic thermostat room temperature control With electronic room temperature control Electronic room temperature control plus day timer Electronic room temperature control plus week timer Other Control Options Room temperature control, with presence detection... - Page 7 Fixing Bracket (2) Remote Handset (1) AAA Battery (2) Instruction (1) ST 4*25 Screws ST4*10 Screws (8) ST 3*8 Screws (2) Washer (4) Small clear stones Small semi-black Log (1 set) stones and big clear Glass Panel (1) stones (1 set)
-
Page 8: Appliance Dimensions
4. APPLIANCE DIMENSIONS Model 40 9/16″ 20 1/4″ 31 1/2″ 11 1/4″ 35″ 5 11/16″ 1030 13/16″ (1030mm) (515mm) (800mm) (285mm) (888mm) (145mm) (453mm) 48 7/16″ 20 1/4″ 39 3/8″ 11 1/4″ 42 13/16″ 5 11/16″ 1230 13/16″ (1230mm) (515mm) -
Page 9: Installation Instructions
5. INSTALLATION INSTRUCTIONS Tools Required A screw driver will be needed. Locating the Appliance Your new electric fireplace can be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. 5.1 For best results, install out of direct sunlight. 5.2 The appliance should be connected to an earthed electrical outlet and it must be easily accessible to allow disconnection. - Page 10 1 1/2”(37.5mm) after finishing the plasterboard. Measure the depth D from the plasterboard surface to the wood block and write it down. MODEL 1030 1230 1530 1730 36 7/16″...
- Page 11 5.6 There are two kinds of electrical connections. A. Existing appliance installation Drag the power cord through the hole and plug it into the outlet and push the unit into the recessed wall in parallel. If an existing earthed outlet is near the appliance, the power cord can run behind the appliance.
- Page 12 5.8 Carefully arrange the fuel bed. The appliance is supplied with 2 fuel effect options. A. Crystal Ice Glass Effect. Evenly spread the small glass-effect crystals across the fuel bed. It is not necessary to use all of the effect supplied. Randomly space the large glass-effect crystals throughout the fuel bed.
- Page 13 Place the small logs on the fuel bed as the log layout. Place the medium logs on the fuel bed as the log layout. Place the small semi-painted and clear (quantity: 2:1) crystal ice glass in between the log layout. 1030 1230 1530 1730...
- Page 14 5.9 Carefully set both hooks of the front glass panel onto the appliance. NOTE: Make sure the glass is fully attached to the appliance so that the control panel can operate correctly. 5.10 Thread the ST3x8 screws (2) into the threaded holes on the glass panel. Check the alignment of the glass panel and securely tighten the screws.
-
Page 15: Operating Instructions
6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call the seller to arrange return of the appliance. WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 metre from the air outlet. -
Page 16: 6A. Manual Control Panel
6a. MANUAL CONTROL PANEL NOTE: The manual button controls basic functions, not a full range of controls. Use the remote hand set to carry out all functions. 6a.1 The manual buttons are located at the upper right of the appliance. 6a.2 Press “POWER ON/OFF”... -
Page 17: 6B. Remote Controls
6b. REMOTE CONTROLS NOTE: This is a thermostatic remote control. The remote should be in the same room as the fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect the thermostatic reading. The communication frequency between the fire and remote has already been set up. - Page 18 Flame Effect 6b.3 Press to enter the flame effect adjustment screen. 6b.4 Press the ‘←’ and ‘→’ button to select the 3 Kinds of flame effect. 6b.5 Press the ‘+’ and ‘-’ button to select the 5 brightness of flame effect and OFF settings. Fuel Bed Colour Adjustment 6b.7 Press to enter the fuel bed light...
- Page 19 Count Down Timer NOTE: This setting is for normal mode only. It allows the appliance to go into standby after a set period of time. 6b.12 Press to cycle through the settings from Off and 0.5 hours to 9 hours. The timer logo and time will show on the screen.
- Page 20 3 timed Heating periods for a day. • Press ‘←’ or ‘→’ to choose hour or minute,press ‘+’ or ‘-’ to set the number. • Minute will increase/decrease by 15 minutes per press. • Hold for 3 seconds or wait for 10 seconds to save and exit the heating time period setting.
- Page 21 week timer setting. • Press ‘←’ or ‘→’ to move the cursor (a flashing underline), press button in the corresponding week position to select (the character is highlighted) or cancel (the character is displayed normally) the current setting. Several days can be selected together. •...
- Page 22 your timer is set to start at 18:00 and temperature is set to 23°C, the fire will come on at 17:30 to ensure the room is 23°C at 18:00. Window Open Detection 6b.31 When the remote control detects a rapid drop in room temperature, it will be identified as a window open, the warning icon will be...
-
Page 23: Maintenance
overheats, e.g. when covered. If the heater stops operating while the flame effect continues working normally, this indicates that the E.S. Control is in operation. The E.S. Control can only be re-set after the appliance has cooled down, and the appliance has been reset. Re-setting of the E.S. Control proceeds is as follows: 6b.36 Switch off the appliance (Manual On/Off switch) and leave it off for approximately 10-15 minutes. -
Page 24: Others
8. Others Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. To have this appliance processed at the end of its useful life please contact WEEECare Plc on 0844 8002004. The relevant producer number is WEE/MM3069AA.
