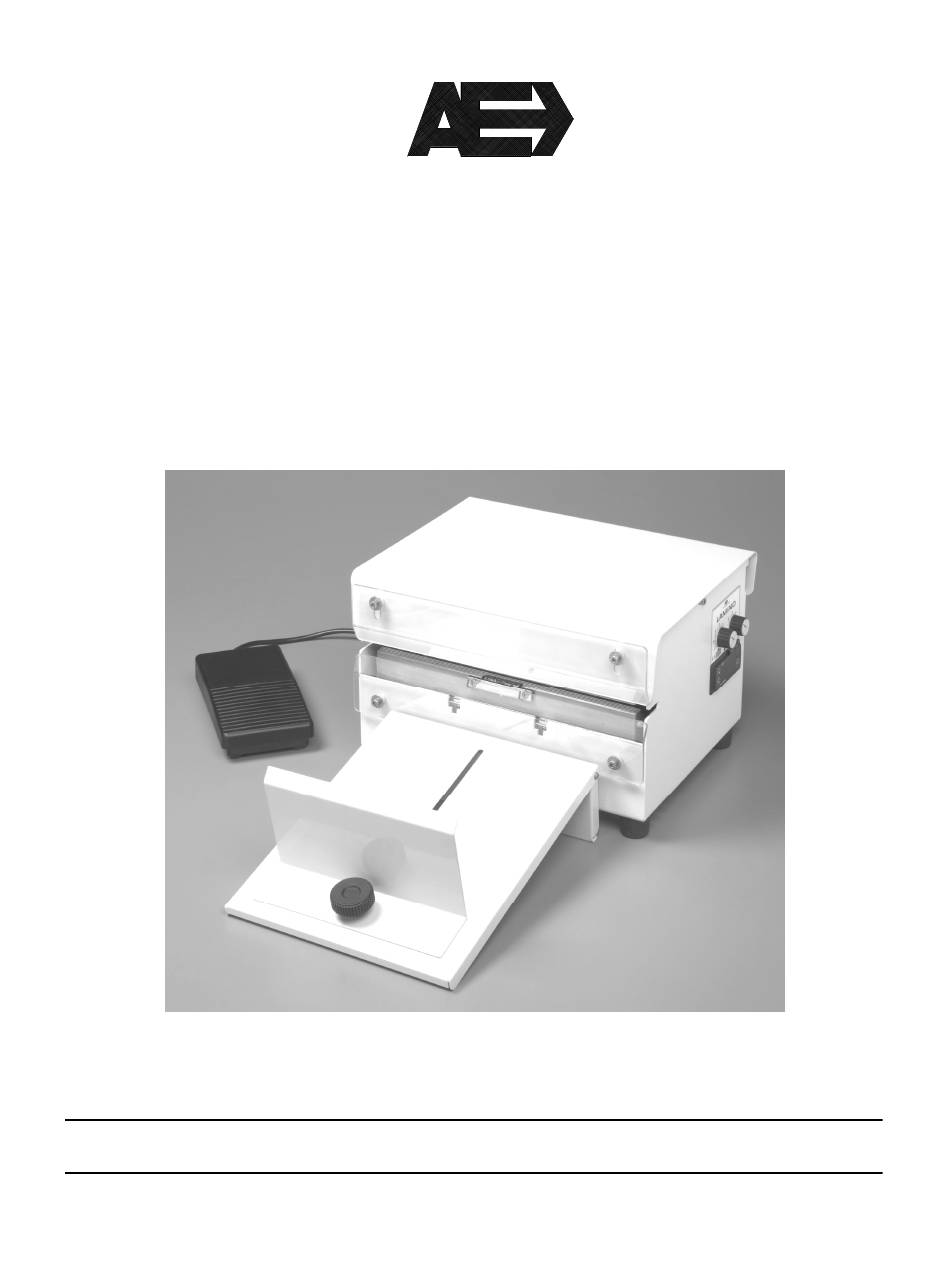

- Page 1 ® AUDION ELEKTRO LAMINO 301 LM MANUAL LAMINO 301 LM ENG. Rev.03...
- Page 2 (mis)interpretation of the contents. AUDION ELEKTRO is not responsible for damage or problems which result from the use of other than the original spare parts. If this manual has not been supplied with instructions for certain repairs, adjustments and maintenance, you should contact your...
-
Page 3: Table Of Contents
CONTENTS General information ..........................6 Use and safekeeping of the instructions manual..............6 Expected use ..........................6 Technical characteristics ......................7 1.3.1 Lamino 301........................7 Moving and transport........................ 7 Safety rules..........................8 Instructions for use..........................9 Installation..........................9 Electrical wiring......................... 9 Switching on the machine....................... - Page 4 Alarm messages ........................26 Discard the machine ......................... 27 Conditions of guarantee........................27 Liability............................ 27 Guarantee..........................27...
- Page 5 SYMBOLS Warning meaning danger Warning meaning particular suggestion Warning meaning suggested maintenance pict. a...
-
Page 6: General Information
General information Use and safekeeping of the instructions manual We thank you for the trust you put in us by buying our sealing machine Lamino. We are sure that, following correctly the instructions in this manual, you will appreciate the quality and reliability of this product. -
Page 7: Technical Characteristics
To avoid any damage to the machine, when it is moved, is very important to keep the original packing. Audion Elektro declines every responsibility for eventual damages occurred to the machine in case of shipments made without the original packing. -
Page 8: Safety Rules
Safety rules WARNING THE OPERATOR MUST BE TRAINED AND HAVE FULL KNOWLEDGE OF THE CONTENTS OF THIS MANUAL. Always unplug the power supply cable (n°3 pict. a) before any maintenance operation. Don’t operate with the heat-sealer if the safety panels are open or removed. Here there are the most important suggestions for the safety and good maintenance of the machine: To guarantee good functioning, keep the machine clean. -
Page 9: Instructions For Use
Instructions for use Installation The equipment can be employed in any working environment that is dry without excessive dust. Place the sealer on a steady work surface, leaving a large enough space in front of it for the bags to position. -
Page 10: Switching On The Machine
(*): Depending by the software release. In case of mistake messages (see par. 3.3), don’t use the machine and get in touch with Audion Elektro. The thermo regulator display (n° 1 pict. d) shows the actual temperature value of the welding jaws that are reaching the set temperature. -
Page 11: First Employ
First employ In order to avoid imperfect seals, the sealing area of the bags must be introduced between the jaws complete stretched. After switching on the machine (see par. 2.3) and once reached the set welding temperature, the machine is ready to make the first seal. Introduce the bag edge through the infeed guide (n°... -
Page 12: Emergency Stop
Emergency stop Turning the luminous green general switch (n° 2 pict. a), the power supply and all the moving parts of the heat sealer will stop. To restart the machine after removing the trouble, turn again the luminous green general switch on position “1”... - Page 13 To make easier the new codes composition, we suggest to replace only one punch at the time, leaving the other ones in the punch-seat. e) When the new composition is done, close manually the upper jaw to get punches bedding in their seat, than tighten ligthly the two screws (n°...
-
Page 14: Control Panel
Control panel In this section, will be described the panel commands which can be done by the operator to manage the working adjustments and the desired machine configuration. The control panel is consisting by two principal parts: a) Command setting of the cycle time (see pict. f). b) Command setting of the sealing temperature (see pict. -
Page 15: Sealing Temperature Setting
Sealing temperature setting pict . g 3.2.1 Keys symbols - function keys new set value confirmation visualization switching set temp. /actual temp. thermo regulator hide functions access. the key is normally deactivated : to set on see par. 4.6.3.1 - setting keys temperature value increasing / decreasing keys 3.2.2 sealing temperature setting... -
Page 16: Errors Warning List (Heating Control)
3.2.4 Errors warning list (heating control) In case of heating behavior failure, the alarm system activates flashing visualizations on the display (see pict. h), stopping in the meantime the thermo regulator. Suspend immediately the sealing operations (if the machine is working in automatic mode, the sealing jaws are executing the sealing cycle, yet ) Switch off the machine and try to solve following the help list below. -
Page 17: Automatic Mode
Automatic mode The automatic behavior allows the operator to worry only about the fitting in the sealing jaws of the bag without acting the machine at every new bags insertion. To use the machine in automatic mode, do as follows: a) Disconnect the JACK plug (n°... -
Page 18: Maintenance
Maintenance THE HEAT-SEALER MAINTENANCE MUST BE EXECUTED BY QUALIFIED PERSONNEL ONLY, OPPORTUNELY TRAINED AND WITH A GOOD KNOWLEDGE OF THE INSTRUCTIONS IN THIS MANUAL. Before any intervention, stop the machine and unplug it from the main power supply. Cover machine opening 4.1.1 Cover Unscrew the two screws (n°... -
Page 19: Thermoelectric Protections
For the aim of the safety, before replacing the thermofuse, establish the reason of its intervention. In this case do not employ the machine and advice Audion Elektro. To start the machine again, it is necessary to replace the thermofuse with another one of the same kind. -
Page 20: Temperature Jaws Probe Replacement
Temperature jaws probe replacement PROBE MODEL: thermocouple J 142-13020. The temperature jaws probe does not need any maintenance. 4.5.1 Probe access Open the heat-sealer following the instructions 4.1.1, then locate the probe (n° 1 pict. m) placed on the lower jaw (n° 2 pict. m). 4.5.2 Replacement Disengage the probe connection turning the block metal ring (n°... -
Page 21: Heating Elements Replacement
Heating elements replacement HEATING ELEMENTS TYPE: cartridge; Power: 0.25 Kw l = 250 mm (Lamino 301) 309-09009 The heating elements are connected in series mode (see electrical diagram). 4.6.1 Heating elements access Open the heat-sealer following the instructions 4.1.1 and 4.1.2 b, then locate the heating elements placed both inside sealing jaws (n°... -
Page 22: Thermoregulator Calibration
4.6.3 Thermoregulator calibration Every time the heating elements are replaced, it will be necessary to calibrated the thermo regulator through the autotuning procedure, that it allows its fitting to the electric characteristics of the new heating elements. The thermo regulator calibration must be done with the sealing bars at the environmental temperature 4.6.3.1 password setting - press the... - Page 23 4.6.3.3 AUTOTUNING start set up the SET temp. to an temperature close to the normal work temperature. press the key visualizing : press the key to start the AUTOTUNING : the display visualizes : pict. n1 now the display will alternate the actual temp. value with the pict. n1 visualization. According to the environmental temperature and the SET value, the automatic autotuning procedure could spend several minutes to its conclusion.
-
Page 24: Recommended Spare Parts
pict. o 1: Digital thermo regulator 309-27008 2: Upper sealing jaw 309-09011 (pair) (309-09009 heating element) 3: Lower sealing jaw 4: Main electronic board 309-28001 (including potentiometers) 5: Transformer 309-90062 6: Safety thermo fuse 309-09010 7: Electromagnet 141-DB28010 8: Pre-opening spring 309-90028 9: Opening spring 309-90070... -
Page 25: Electrical Diagram
Electrical diagram Fan rectifier Vac/Vcc 309-DB09004 Electromagnet Fan electric motor 309-09012 Fuse 3.15 AF 309-FUSE1 Transformer fuse T yyy mA (*) 309-FUSE2 400mA 309-FUSE4 630 mAA Fuse 4 AT 309-FUSE3 Main switch Foot pedal jack Heating control led Main board Sealing time potentiometer Automatic mode potentiometer Heating element 110 Vac, zzz w (*) -
Page 26: Problems & Solutions
The seal, even if done at the correct temperature, is not strong: a) Follow the indications of the chapter 4.2. b) The load force disk (n° 7 pict. o) is not correctly adjusted. Please get in touch with Audion Elektro. The sealing jaws temperature does not increase:... - Page 27 In case we replace spare parts to fulfill our guarantee engagement, the spare parts replaced become property of AUDION ELEKTRO B.V. In case the opposite party does not come up completely, partially or does not come up in time to the obligations arisen from the closed engagement between the parties, we are not obliged to guarantee as long as the situation continues.
- Page 29 BANKS: Rabobank: account no. 34.31.00.045 Postbank: 108897 ABN-AMRO Bank n.v.:account no. 54.81.11.669 Trade reg. Hilversum no. 32057820. VAT no. NL803873104B01. Our terms and conditions are deposited at the Chamber of Commerce in Hilversum. Op alle overeenkomsten zijn van toepassing onze algemene leverings- en betalingsvoorwaarden, zoals gedeponeerd bij de Kamer van Koophandel te Hilversum...
- Page 30 AUDION ELEKTRO Represented by Hogeweyselaan 235, 1382 JL Weesp, Holland Tel : +31(0)294 491717 Fax: +31(0)294 491761 E-mail: export@audion.nl E-mail: holland@audion.nl Website: www.audion.com...
