Summary of Contents for SWINGAN DIY SWING SET

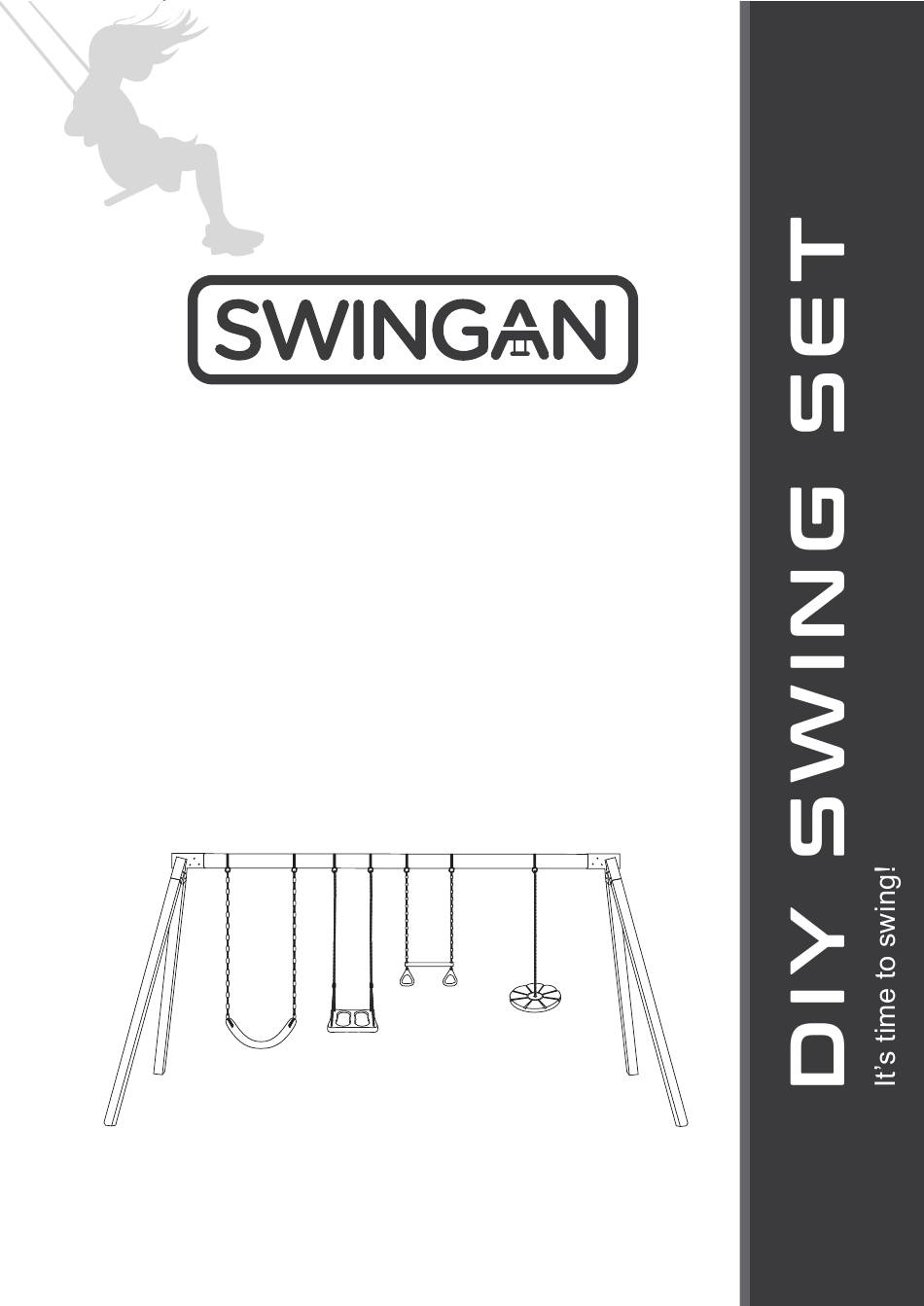

- Page 1 Manual M a n u a l...
-
Page 2: Table Of Contents
INTRODUCTION Dear valued customer Congratulations! You have purchased the Swingan DIY Swing set, where the fun begins! Please read this entire booklet completely before beginning the assembly process. We have included important safety information that you must adhere to, to prevent injuries. -
Page 3: Instructions For Use - Safety Instructions
INSTRUCTIONS FOR USE – SAFETY INSTRUCTIONS Carefully read the following instructions BEFORE using your Swingan product. This information was meticulously put together for your safety and to reduce risk of injury. Always keep the safety of your children in mind as you build your set and as your children play on it. -
Page 4: Safe Use
SAFE USE ● The swing set is designed to be used by children ages 4 and up. No more than 4 persons should use the set at once, not more than one person per swing. ● An adult should always supervise children using the swing set. ●... -
Page 5: Maintenance
MAINTENANCE ● Carry out maintenance checks monthly or before the start of a usage period, checking more regularly in seasons of high usage. ● Inspect nuts and bolts for tightness ● Oil all moving steel parts ● Check water sealant and repaint areas of exposure. We recommend sealing annually to keep your swing set looking brand new. -
Page 6: Swingan Warranty
Our warranty covers defects in material and workmanship. Allowing for reasonable wear and tear, should any such defect become apparent during the warranty period, Swingan will supply a free replacement for any defective part (installation not included). This limited warranty does not cover damage incurred through regular wear and tear, improper maintenance, abuse and misuse, commercial use or accidents. -
Page 7: Kit Components
KIT COMPONENTS Part Description Quantity A-Frame Backet Bracket Hardware Belt Swing Seat Coated Chains Fully Assembled Trapeze Bar with Rings Fully Assembled Disc Swing Fully Assembled Standing Swing Screw Swing Hanger Snaphook PAGE 7... -
Page 8: Tools Required
TOOLS REQUIRED ELECTRIC DRILL TAPE MEASURE SOCKET & WRENCH CIRCULAR SAW HAMMER PLIERS PHILIPS BIT & SPADE BIT WRENCH SCREWDRIVER SAFETY GLASSES PAGE 8... -
Page 9: How To Build
Before starting assembly, check that you have all necessary parts. If any parts are missing or damaged on delivery, please contact Swingan customer support directly on 1-800-574-9323 for immediate replacement. HOW TO BUILD YOUR SWING SET In order to build this swing set you must purchase wooden beams. The A-frame brackets are designed to be used with a 4x6 top beam and 4x4 support beams. -
Page 10: Preparing The Swing Hanging Bar
PREPARING THE SWING HANGING BAR • Measure and mark the 120” top beam for placement of the swings. Make the markings on the 4” surface of the beam. Mark each spot where a swing hanger screw must be installed to hang a swing chain on. -
Page 11: Attaching The Top Beam To The A-Frames
ATTACHING THE TOP BEAM TO THE A-FRAMES NOTE: YOU WILL REQUIRE THE ASSISTANCE OF ANOTHER PERSON FOR THIS PART OF THE ASSEMBLY. 1. Lay the top beam on the ground on a 6” side, with the screw hangers on the side closer to you. -
Page 12: Assembling The Belt Swing
ASSEMBLING THE BELT SWING 1. Collect the belt swing seat and the two coated chains. 2. Thread the S-Hook on the end of a chain through the hole on one end of the swing seat. 3. Crimp the hook opening closed using pliers to secure the connection. (See Image) 4.Repeat steps 2-3 with the S-Hook on the other chain, connecting it to the hole on the other end of the swing seat. - Page 13 Your swingset is fully assembled ready for FUN! CONTACT INFO: US: 1800-574-9323 2 Mill St. Cornwall NY 12518 UK: 020-3150-0484 Support@swingan.com Web: www.swingan.com...
