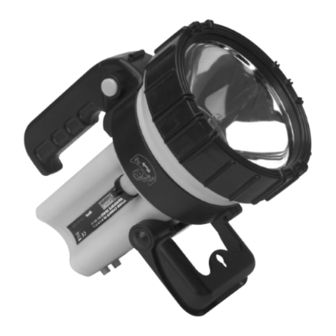

Rechargeable spotlight 3,000,000 candle power

Advertisement

Quick Links

3.
MAINTENANCE
3.1. CHANGING THE SPOTLIGHT BULB
 WARNING! Ensure the spotlight is turned off and the lens has cooled
prior to changing the bulb.
1. Undo the spotlight hood (fig.1.H) by turning it anti-clockwise.
2. Carefully lift the reflector assembly revealing the spring clip (fig.5.1)
and the cable connector (fig.5.2).
3. Disconnect cable (fig.5.3).
4. Squeeze the two ends of the spring clip together and remove the
spring clip (fig.5.1).
5. If unable to remove bulb, first remove screw and nut (fig.5.5)
6. Pull bulb (fig.5.4) outward from the reflector.
7. Hold the new bulb with a lint free cloth, (do not handle the bulb),
and install by reversing the above procedure.
 WARNING! Beware of causing a short circuit.
2
fig.5
1
3.2. CHANGING THE BATTERY
WARNING! Ensure you read, understand and apply safety
instructions relating to the battery before changing.
1. Undo the spotlight hood (fig.1.H) by turning it anti-clockwise.
2. Carefully lift the hood and reflector assembly.
3. Remove the screws holding the printed circuit board (fig.6.3)
4. Disconnect the red and black battery terminal wires removing
the black negative wire first (fig.6.2a,2b).
5. Undo the four battery cover retaining screws (fig.6.1).
6. Carefully raise the battery cover.
WARNING! Beware of causing a short circuit.
7. Carefully remove the battery.
8. Replace with genuine Sealey battery and install by reversing the
above procedure.
Note:
Take care not to pinch or incorrectly connect any wires.
9. Dispose of old battery in accordance with local authority battery
regulations. DO NOT dispose of with regular refuse.
3
fig.6
PARTS LIST FOR AK436.V2 RECHARGEABLE SPOTLIGHT
5
Part No
Description
AK436.V2-B
Bulb
4
AK436.V2-BAT
Battery 6V 5Ah
AK436.V2-C
Mains Charger
AK436.V2-CC
Car Charger
Declaration of Conformity
We, the sole importer into the UK, declare that the product listed here is in
conformity with the following standards and directives. The construction file
for this product is held by the Manufacturer and may be inspected, by a
national authority, upon request to Jack Sealey Ltd.
Rechargeable Spotlight
Model: AK436.V2
2006/95/EC Low Voltage Directive
2004/108/EC EMC Directive
2002/95/EC RoHS Directive
2002/96/EC WEEE Directive
For Jack Sealey Ltd. Sole importer into the UK of Sealey Power Products.
NOTE:
It is our policy to continually improve products and as such we reserve
the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this equipment.
WARRANTY: Guarantee is 12 months from purchase date, proof of which
will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us
on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product
will, if used according to these instructions and properly maintained, give you years of
trouble free performance.
1.1. GENERAL
 Ensure the spotlight is correctly charged before initial use.
 When fully charged, spotlight must not be used continuously for more
 WARNING! The lens becomes very hot during operation.
 DO NOT cover or block the lens during use.
 DO NOT turn the spotlight on when it is being re-charged.
 DO NOT shine directly into your, other person's or animal's eyes.
 DO NOT stand the spotlight near any surface or item that may be
 DO NOT allow children to use the spotlight.
 DO NOT handle or move the spotlight whilst it is being charged.
 DO NOT use the spotlight if you suspect that the battery or the
 DO NOT handle the bulb with your fingers. Use a soft lint-free cloth.
 Ensure that correctly rated battery and bulb are used for replacements.
 When not in use store the spotlight in a safe, dry, childproof location.
Signed by Mark Sweetman
1.2. BATTERY SAFETY
DANGER! BE AWARE, LEAD-ACID BATTERIES MAY BE DANGEROUS
IF NOT HANDLED WITH CARE AND ACCORDING TO THESE
INSTRUCTIONS.
9th January 2008
 Before exposing the battery for replacement, remove personal metallic
 DO NOT smoke or allow a spark or flame in the vicinity of battery.
 Ensure the charger is switched off and disconnected from the
 If the battery or wire terminals are corroded or dirty, clean them before
 DO NOT disassemble the battery for any reason.
 WARNING! DO NOT allow metal tools to touch both battery terminals
 DO NOT allow battery wires to touch each other or to make contact
Sole UK Distributor
 DO NOT cross-connect wires to the battery as this will damage the unit.
Sealey Group,
Bury St. Edmunds, Suffolk.
 DO NOT leave battery in a discharged state, recharge battery immediately.
www.sealey.co.uk
W e b
sales@sealey.co.uk
email
INSTRUCTIONS FOR:
RECHARGEABLE SPOTLIGHT
3,000,000 CANDLE POWER
AK436.V2
Model:
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE
THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE
FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.
SAFETY INSTRUCTIONS
than 20 minutes. To do so may damage the spotlight.
adversely effected by the heat emitted by the lens.
spotlight casing is damaged.
,
items such as rings, bracelets, necklaces and watches. A lead-acid
battery can produce a short-circuit current high enough to weld a ring
to metal, which would cause severe burns.
spotlight before attempting to open the lamp unit.
replacing battery.
simultaneously. Arcing or short circuit will result.
with any other metallic part.
Ensure positive (+) (RED) is to positive and negative (-) (BLACK) is to
negative.
If the lantern is not in use, recharge the battery every three months.
Dispose of the old battery in accordance with local authority battery
regulations. DO NOT dispose of with regular refuse.
AK436.V2 - 1 - 070108
