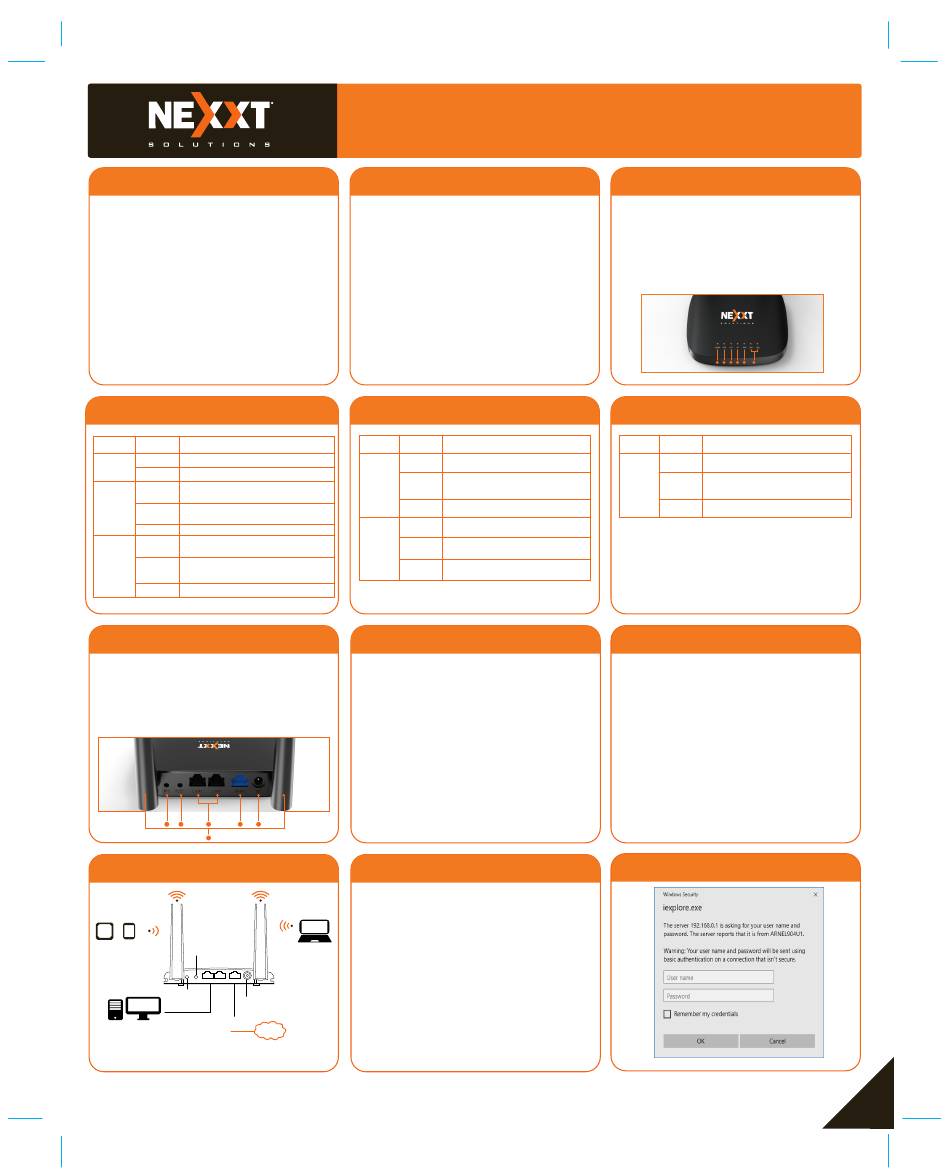

Nexxt Solutions Nyx1200-AC Quick Installation Manual

1
Thank you for purchasing the new Nyx1200-AC
dual band router from Nexxt Solutions™. If any of
the following items are mismatched, missing or
damaged, please contact the store from whom
you purchased the unit for immediate replace-
ment.
• Dual band AC wireless router
• Power adapter 110/220V
• Network cable
• Quick installation guide
4
LED
Status Description
indicator
Solid The system is working properly
Power
1.
Off No power is being supplied to the router
A client device is connected to the router
Solid
via WPS
WPS
2.
Blinking WPS authentication is active
Off WPS is not enabled
The 2.4GHz wireless connection
Solid
is enabled
The device is actively sending or
Blinking
2.4G
3. transmitting data wirelessly over the
2.4GHz band
Off The 2.4 GHz connection is disabled
7
Back panel
The rear panel provides the physical connectors for power
and the client network devices.
2 3 4 5 6
1
10
Tablet Phone
RESET
LAN1 LAN2 WAN
WPS
POWER
LAN
WAN
Internet
*Images herein are for references only. The actual product may differ.
Quick installation guide
2
1. Preliminary steps
This advanced network device works as wireless
router and universal repeater. Before setting up the
router, you must verify that you have high-speed
internet access available.The most widely used
connection nowadays is broadband DSL or Cable.
The description used in this guide is based on that
type of connection.
5
LED
Status Description
indicator
The 5GHz wireless connection is enabled
Solid
The device is actively sending or
Blinking
transmitting data wirelessly
5G
4.
over the 5GHz band
The 5GHz connection is disabled
Off
An Ethernet cable is connected in this port
Solid
The device is actively sending or
Blinking
transmitting packets over that port
WAN
5.
No Ethernet cable is connected to that port
Off
8
1. Antennas: Two 5dBi omnidirectional antennas.
2. WPS: Press this button to connect to the 2.4GHz band
and use the WPS feature. (When enabled, mobile devices
will connect to the network directly without a password).
3. Reset: Press and hold this button for at least 5 seconds
to restore the router to its factory default settings. The
router must be powered on in order for this function to
work.
4. LAN ports (2/1): Connect your local laptop or desktop
computers in your network to any of these RJ45 ethernet
ports.
5. WAN:This RJ45 port is where you will connect the
DSL/cable modem or Ethernet line from your ISP .
6. DC-IN: Connect the supplied power adapter to this jack.
11
4. Web UI router configuration
1.Open a web browser to access the main web
interface. Type the default IP address of the router:
192.168.0.1 into the address bar and then press
Enter on the keyboard.
2. A popup should come up asking for the username
and password in order to log into the device. The
default username/password is admin in both
instances. Click OK or press Enter to continue.
3
2. Product layout
Front panel
LED indicators on the front panel provide information
about network activity, the connection and link status of
the ports in real time. They also facilitate activity monitor-
ing and troubleshooting the performance of the device.
1 2 3 4 5 6
6
LED
Status Description
indicator
An Ethernet cable is connected in this port
Solid
LAN 1/
6.
The device is actively sending or
Blinking
LAN2
transmitting data over that port
No link is detected on that port
Off
9
3. Hardware installation
1. First determine the optimum location for the router.The
best place is usually at the center of your wireless network
with the antennas in the upright position.
2. Then, connect the modem to the WAN port of the router
using the supplied ethernet cable.
3. Connect your PC to the router if using a wired connection.
4. Insert one end of the supplied power adapter to the AC
input jack located on the rear panel of the router, before
plugging the other end to a standard electrical wall outlet.
12
