Nulite SOTTILE Series Installation And Maintenance Instructions

RISK OF ELECTRICAL SHOCK OR FIRE - DISCONNECT POWER DURING INSTALLATION / SERVICING.
INSTALL & WIRE IN ACCORDANCE TO ALL NATIONAL & LOCAL CODES BY A CERTIFIED ELECTRICIAN.

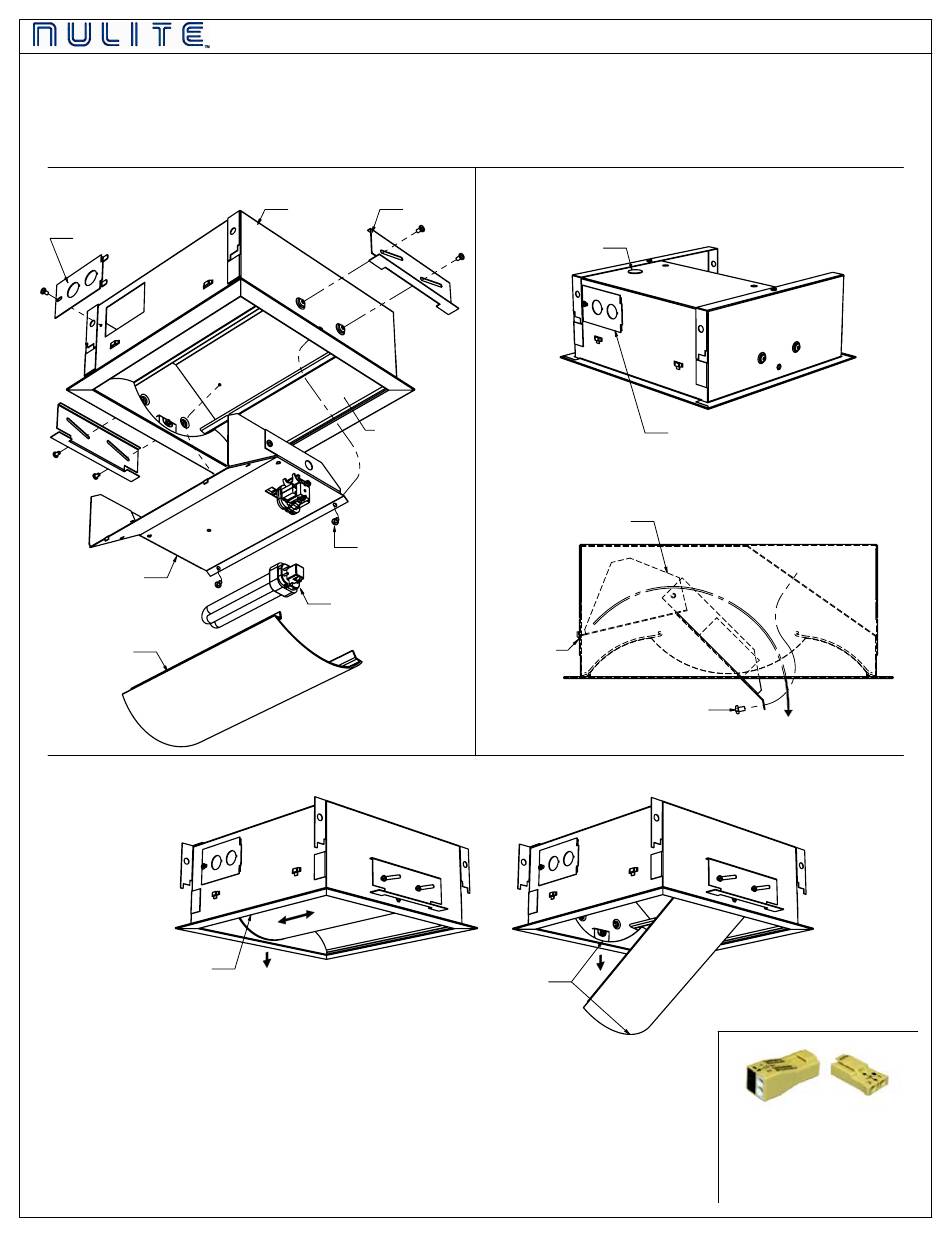

EXPLODED VIEW

WIRE ACCESS
COVER
REMOVABLE 2-PART
BALLAST COVER
CENTER LENS
(SHIFT-N-REMOVE)

LAMP INSTALLATION, MAINTENANCE and CLEANING

GENTLY GRASP CENTER LENS BY
SIDES AND SHIFT TO ONE END.
PULL THE EXPOSED END DOWN.
WIRING INSTALLATION:
1. WARNING - ELECTRICAL SHOCK or FIRE - Disconnect power.
2. Wire per all National and Local electrical codes. Accessible ceiling option; remove wire access cover and
connect power feed conduit make proper electrical connection and re-install wire access cover.
Inaccessible ceiling option; Remove 2-part ballast cover, remove top K.O. and connect power feed conduit
via top K.O. Make proper electrical connection and re-install ballast cover.
LAMP INSTALLATION, MAINTENANCE and CLEANING:
1. WARNING - ELECTRICAL SHOCK or FIRE - Disconnect power.
2. Gently grasp center lens by the sides and shift to one end. Pull the exposed end down and remove lens.
3. Install appropiate lamp and re-install the lens.
4. Clean - Wipe down luminaire with a clean damp rag.
5. Connect power and make sure luminaire works properly.
10770 East 51st Ave, Denver, CO 80239 Phone (303)287-9646 Fax (303)287-0316
INSTALLATION and MAINTENANCE INSTRUCTIONS Series SOTTILE 1X1 (L1D)
READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION.
FIXTURE MAY BE SHARP - HANDLE WITH CARE.
LET FIXTURE COOL BEFORE MAINTENANCE.
L1D HOUSING MOUNTING
(SHOWN) BRACKET
SIDE LENSES ARE
NOT REMOVABLE
MAINTAIN THE
BALLAST CAVITY
WITH TWO PHILLIPS
HEAD SCREWS
LAMPS
(ORDER SEPARATELY)
REMOVE THE LENS ONCE
LIP CLEARS HOUSING.

WARNINGS

WIRING INSTALLATION - NON-INSULATED CEILING

ONE K.O. ON THE
TOP OF LUMINAIRE
REMOVABLE 2-PART
BALLAST COVER.
COVER TABS
HINGE ON
THIS FACE.
MAINTAIN BALLAST CAVITY WITH
TWO PHILLIPS HEAD SCREWS
WIRE ACCESS COVER TYP. OF TWO K.O.'S
MAINTAIN WITH ONE PHILLIPS HEAD SCREW
LUMINAIRE POWER DISCONNECT
CODE COMPLIANT, FACTORY
INSTALLED POWER DISCONNECT
Input Side Daisy Chain
Conductor Types:
Power Side - solid / stranded
19 strands (MIN.)
Ballast Side - 18 AWG solid
(PI-L1D-001-A)
PAGE 1 OF 2
