Lenovo
Q27h-10
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Lenovo Q27h-10

Summary of Contents for Lenovo Q27h-10

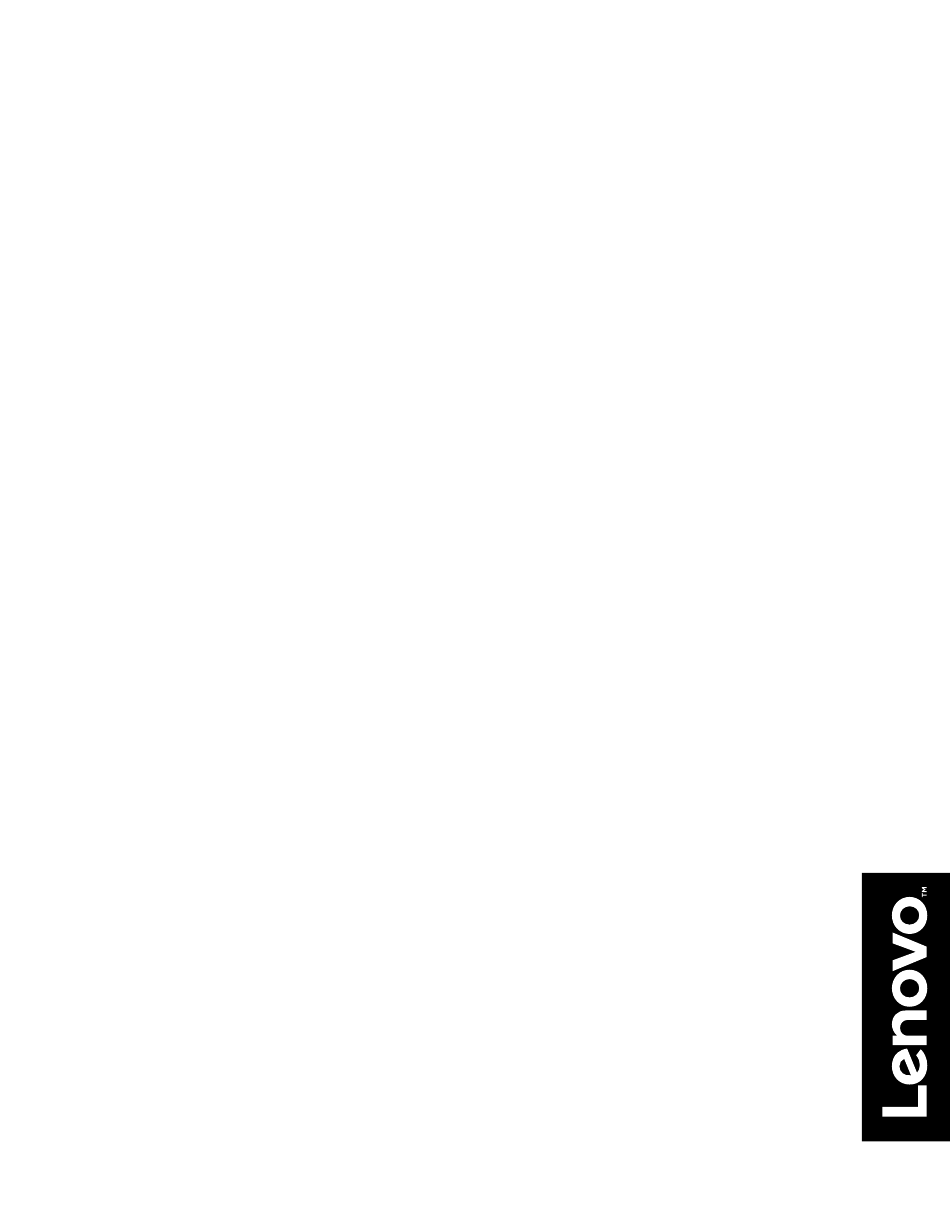

  • Page 1 Lenovo Q27h-10 User Guide...
  • Page 2 © Copyright Lenovo 2020. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

  • Page 3: Table Of Contents

    Contents Safety information ............................iii General Safety guidelines ..................................iii Chapter 1. Getting started..........................1-1 Shipping contents ....................................1-1 Notice for use ......................................1-1 Product overview ....................................1-2 Types of adjustments ..................................1-2 Tilt ........................................1-2 Monitor controls ....................................1-3 Cable lock slot ....................................

  • Page 4: Safety Information

    Safety information General Safety guidelines For tips to help you use your computer safely, go to: http://www.lenovo.com/safety Before installing this product, read the Safety Information. DANGER To avoid shock hazard: • Do not remove the covers. • Do not operate this product unless the stand is attached.

  • Page 5: Chapter 1. Getting Started

    Setup Poster that was shipped with your monitor. Shipping contents The product package should include the following items: Flat Panel Monitor Information Flyer Lenovo Limited Warranty Booklet Stand Base USB 3.0 C-C Cable Power Cord Adapter...

  • Page 6: Product Overview

    Product overview This section will provide information on adjusting monitor positions, setting user controls, and using the cable lock slot. Types of adjustments Tilt Please see the illustration below for an example of the tilt range. Chapter 1.

  • Page 7: Monitor Controls

    Monitor controls Your monitor has controls on the rear which are used to adjust the display. For information on how to use these controls, please see “Adjusting your monitor image”on page 2-3. Cable lock slot Your monitor is equipped with a cable lock slot located on the rear of your monitor (in the lower position).

  • Page 8: Setting Up Your Monitor

    Note: The type of plug & Socket shown here are for illustration only. 2. Connect the cables according to below icon indication. 3. For computer in HDMI connecting. Note:Lenovo recommends that customers who require to use the HDMI input on their monitor purchase the “Lenovo HDMI to HDMI cable OB47070” www.lenovo.com/support/monitoraccessories.
  • Page 9 4. For computer in DisplayPort connecting. Note:Lenovo recommends that customers who require to use the DP Cable on their monitor purchase the “ Lenovo DisplayPort to DisplayPort Cable 0A36537 “ www.lenovo.com/ support/monitoraccessories. 5. For computer in USB C-C connecting. The USB 3.1 Type-C port offer the fastest transfer rate and the alternate mode with DP 1.2 support the maximum resolution of 2560 x 1440.
  • Page 10 6. Connect the earphones/headphones and audio jack of monitor to transfer audio source from DP, Type-C or HDMI. Warning note: Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphones and headphones output voltageand therefore the sound pressure level.
  • Page 11 8. Insert the Adapter into the monitor, then plug the monitor power cord and the computer cord into grounded electrical outlets. Note: A certified power supply cord has to be used with this equipment. The relevant national installation and or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm²...

  • Page 12: Registering Your Option

    Thank you for purchasing this Lenovo™ product. Please take a few moments to register your Product and provide us with information that will help Lenovo to better serve you in the future. Your feedback is valuable to us in developing product and services that are important to you, as well as in developing better ways to communicate with you.

  • Page 13: Chapter 2. Adjusting And Using Your Monitor

    In addition, use healthy work habits to maximize your performance and comfort while using your computer. For more detailed information on any of these topics, visit the Healthy Computing Web site at: http://www.lenovo.com/ healthycomputing/. Arranging your work area Use a work surface of appropriate height and available working area to allow you to work in comfort.

  • Page 14: Quick Tips For Healthy Work Habits

    Use adequate lighting for the type of work you are performing. Use the monitor brightness, contrast controls, if equipped to optimize the image on your screen to meet your visual preferences. Keep your monitor screen clean so you can focus on the screen’s contents. Any concentrated and sustained visual activity can be tiring for your eyes.

  • Page 15: Adjusting Your Monitor Image

    Adjusting your monitor image This section describes the control features to adjust your monitor image. Using the direct access controls The direct access controls can be used when the On Screen Display (OSD) is not displayed. Table 2-1. Direct access controls Icon Control Description...
  • Page 16 Using the On-Screen Display (OSD) controls To adjust the settings, the user controls can be viewed through the OSD. Q27h-10 2560x1440-60.0Hz Brightness Contrast DisplayMode Scaling Mode OverDrive InputSignal: Type-C Power Delivery: 65W To use the controls: 1. Press to open the main OSD menu.
  • Page 17 Table 2-2. OSD functions Controls and OSD Icon on Main Menu Sub menu Description Adjustments Brightness Adjusts overall brightness. Adjusts difference between light and dark Contrast areas. Enable dynamic contrast ratio. • Standard • Game • Web DisplayMode • Movie • Picture Basic image setting Selects type of scaled image.
  • Page 18 Controls and OSD Icon on Main Menu Sub menu Description Adjustments HDMI HDMI input source. HDMI input port DP input source. DP input port Input Source TYPE C input TYPE C TYPE C input source. port Shows Model name,Refresh,Firmware,Serial Number. Information Note: This screen offers information only, and (does) not allow for setting changes.

  • Page 19: Selecting A Supported Display Mode

    Selecting a supported display mode The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes. The image size, position and shape might change when the display mode changes. This is normal and the image can be readjusted using automatic image setup and the image controls.

  • Page 20: Understanding Power Management

    Understanding power management Power management is invoked when the computer recognizes that you have not used your mouse or keyboard for a user-definable period. There are several states as described in the table below. For optimal performance, switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day.

  • Page 21: Caring For Your Monitor

    Caring for your monitor Be sure to turn off the power before you perform any maintenance on the monitor. Do not: Apply water or liquid directly to your monitor. Use solvents or abrasives. Use flammable cleaning materials to clean your monitor or any other electrical equipment. Touch the screen area of your monitor with sharp or abrasive items.

  • Page 22: Chapter 3. Reference Information

    Chapter 3. Reference information This section contains monitor specifications, instructions to manually install the monitor driver, troubleshooting information, and service information. Monitor specifications Table 3-1. Monitor specifications for type-model Q27h-10 Dimensions Depth 179.50 mm (7.07 in.) Height 475.53 mm (18.72 in.) Width 613.70 mm (24.16 in.)
  • Page 23 Table 3-1. Monitor specifications for type-model Q27h-10 Video input (Type-C) Interface Type-C Horizontal addressability 2560 pixels (max) Vertical addressability 1440 lines (max) Clock frequency 310 MHz Speakers Output 3Wx2 Communications VESA DDC Supported Display Horizontal frequency 15 kHz -110 kHz...

  • Page 24: Troubleshooting

    Troubleshooting If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem. Table 3-2. Troubleshooting Problem...
  • Page 25 Table 3-2. Troubleshooting Problem Possible cause Suggested action Reference One or more of This is a characteristic If there are more than five Appendix A.”Service the pixels appear of the LCD technology pixels missing, contact the and Support”on page discolored. and is not an LCD Support Center.

  • Page 26: Manually Installing The Monitor Driver

    Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 2560 x 1440 at a refresh rate of 75 Hz, or 640 x 480 at a refresh rate of 60 Hz.

  • Page 27: Installing The Monitor Driver In Windows 10

    Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 2560 x 1440 at a refresh rate of 75 Hz, or 640 x 480 at a refresh rate of 60 Hz.

  • Page 28: Service Information

    Service information Customer responsibilities The warranty does not apply to a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications. The following are examples of misuse or abuse and not covered by warranty: Images burned onto the screen of a CRT monitor.

  • Page 29: Appendix A. Service And Support

    Appendix A. Service and Support The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms.

  • Page 30: Appendix B. Notices

    Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

  • Page 31: Recycling Information

    Collecting and recycling a disused Lenovo computer or monitor If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources.

  • Page 32: Power Cords And Power Adapters

    Power cords and power adapters Use only the power cords and power adapters supplied by the product manufacture Do not use the ac power cord for other devices. Appendix B.
