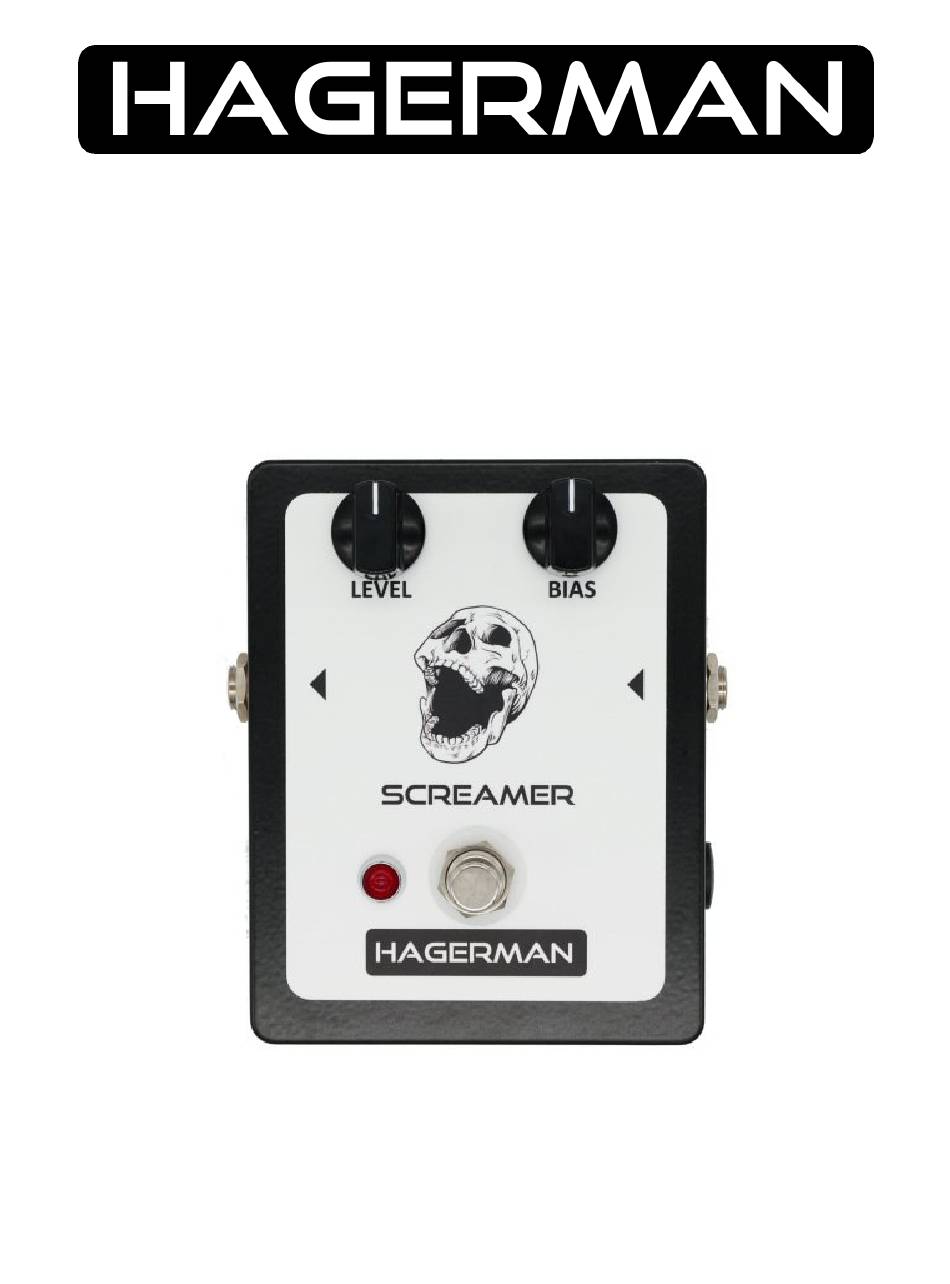

- Page 1 SCREAMER Distortion Pedal Made in USA...
-
Page 2: Copyrights And Trademarks
10 years (90 days tubes). If you discover a defect, Hagerman Amplification will, at its option, repair or replace the product at no charge to you provided you return it during the warranty period, transportation charges prepaid to Hagerman Amplification. -
Page 3: Specifications

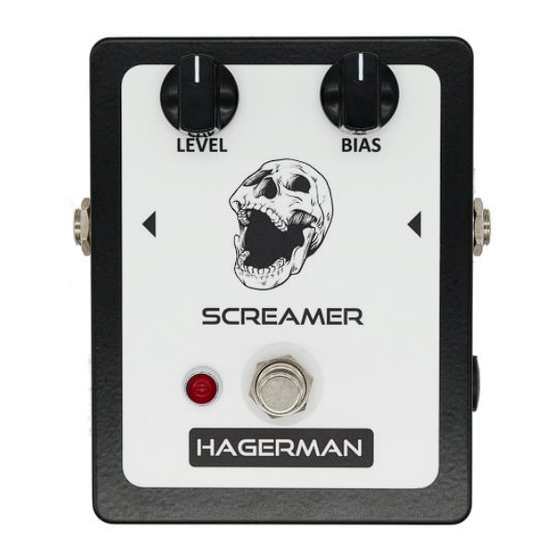

SCREAMER – Distortion Pedal Description The SCREAMER is basically a one-chip fuzz / distortion circuit, but with a Tube-Screamer- like equalization boost, compensating for the mid-range dip found in most Fender / Marshall type tonestacks, helping you cut through the mix. A BIAS control lets you adjust output DC level;... - Page 4 SCREAMER – Distortion Pedal Parts Most parts soldered to PCB are included in kit. Enclosure, switches, jacks, pots, knobs, LED, must be ordered separately. The following table lists the additional items you need to purchase, available from different vendors. AES = www.tubesandmore.com TAYDA = www.taydaelectronics.com...
- Page 5 SCREAMER – Distortion Pedal Assembly Follow this step-by-step guide to properly assemble your HAGFACE pedal. Enclosure Print and cut out drill guide available from website. • Tape drill guide to enclosure. Mark holes with sharp point. Remove guide. • Drill holes with small bit for accurate centering. Enlarge holes using step-bit as required.
-
Page 6: Circuit Board
SCREAMER – Distortion Pedal Circuit Board Follow the schematic. • Add resistors. Solder in place, clip leads. • Add film capacitors. Solder, clip. • Add integrated circuit. Insure pin 1 orientation is correct. • Add electrolytic capacitors. External Components • Cut 11 pieces of 2” length wires. Strip ends about 3/16”. -
Page 7: Final Assembly
SCREAMER – Distortion Pedal Testing Connect assembly to guitar and amplifier (keep volume down). Attach 9V battery. Everything should work properly except LED (but you can temporarily hold it in place). Make sure controls operate; sound is fuzzy. If all is well, continue. Otherwise, go find the error. - Page 8 SCREAMER – Distortion Pedal • Drop assembly into place, such that LED leads feed through holes in PCB. Apply white washer and nut to front of footswitch. Do not tighten yet. • Slip input and output jacks into mounting holes; add washers and nuts. Tighten.
