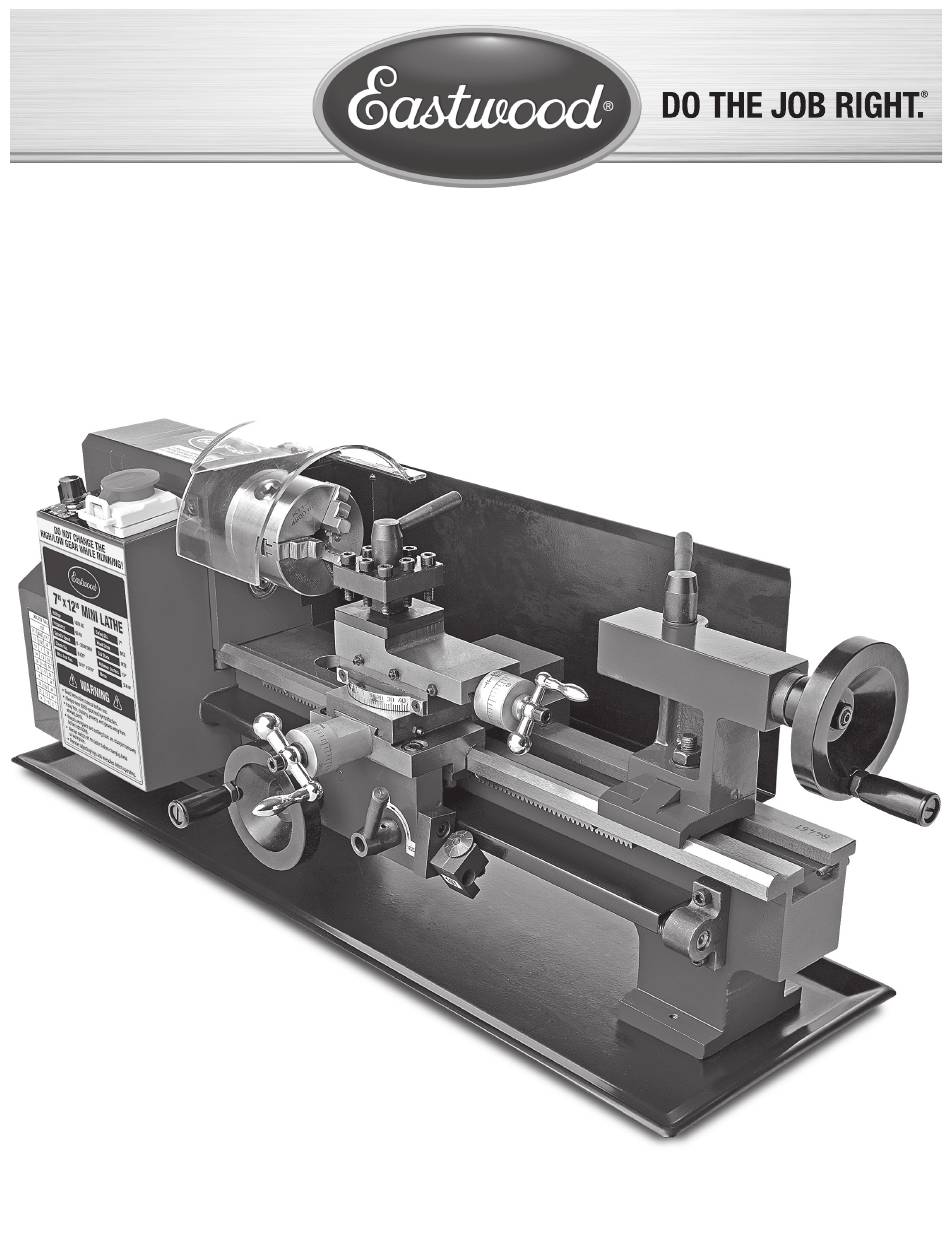

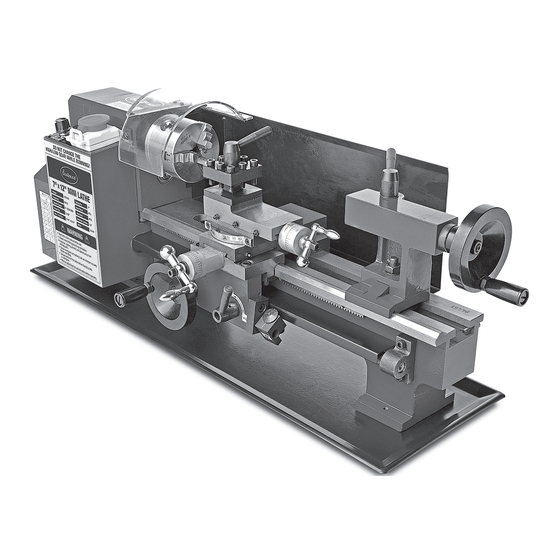

The EASTWOOD 7” X 12” MINI LATHE is equipped with all the features found on large lathes in a compact, home workshop-friendly size. Auto-feed and selectable gear train components allow complex threading operations with a high degree of precision. The included inside and outside 3-Jaw Chuck set will accommodate a wide range of workpiece configurations for most turning and cutting operations.
Page 3
(1) 60 Tooth Plastic Gear [Y] (1) Spare Fuse [P] (1) 65 Tooth Plastic Gear [Z] LEARN HOW TO SET UP AND USE YOUR LATHE with FREE Instructional Videos Available at easwood.com – keyword search “LATHE” To order parts and supplies: 800.343.9353 >> eastwood.com...
• Operation of this Lathe should be performed only by those with an acceptable level of knowledge of standard machining practices. For novices or those unfamiliar with machining equipment, Eastwood strongly recommends the use of a book dedicated to the subject.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards. To order parts and supplies: 800.343.9353 >> eastwood.com...
- Drill four 1/4” [6mm] holes in the surface. - Secure with four m6 screws of adequate length (Not Included) with washers under the heads by threading into the mounting feet of the Lathe Base. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
Page 7
“25” Emergency Stop Switch “8” Tailstock Center “17” Apron “26” High/Low Speed Range Lever “9” Tailstock “18” Manual (Saddle) Feed Handle “27” Leadscrew Forward/Neutral/Reverse Lever FIG. 1 20 19 16 17 15 14 FIG. 2 To order parts and supplies: 800.343.9353 >> eastwood.com...
Page 8
THE MOTOR • The Motor has no user serviceable parts inside however it does have replaceable Brushes accessible from the outside. Brush Replacement is described in the Maintenance section of this manual. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
Page 9
• Loosen and remove the socket head mounting screw in the center, pull off the handle, reverse and re-install it with the Knob facing outward and secure it with the socket head screw and washer (FIG 6). To order parts and supplies: 800.343.9353 >> eastwood.com...
Page 10
If, however the adjustments FIG. 8 have been upset during transit, indicated by stiff or erratic movement. refer to the ‘Settings and Adjustments’ section of this manual for the methods of adjustment. FIG. 9 Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
Page 11
- Switch the FORWARD / OFF / REVERSE Switch to Forward. - Lift the Chuck Guard and the Fault Indicator should Illuminate. - Set the FORWARD / OFF / REVERSE Switch to OFF and the Fault Indicator will go out. To order parts and supplies: 800.343.9353 >> eastwood.com...
6. When work with the Lathe is completed, ALWAYS set the FORWARD / OFF / REVERSE Switch to OFF then unplug the Power Cord. INJURY HAZARD! ALWAYS turn the Lathe OFF at the FORWARD / OFF / REVERSE Switch BEFORE changing ANY settings or making ANY adjustments. This includes shifting from High to Low range. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
- The Auto Feed Lever. MUST be in the “UP” position for manual feed. - FORWARD/NEUTRAL/REVERSE Leadscrew Lever. If Auto-Feed is not required, set to “NEUTRAL” - HIGH/LOW Lever. Select required speed range. To order parts and supplies: 800.343.9353 >> eastwood.com...
Page 14
Scale, and secure the slide in this position by retightening the socket head screws. • The taper, or bevel, is cut by setting the Cross-Slide angle appropriately then using the Compound Slide Feed Handle to advance the cutting tool. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
6. Reset the tool by winding IN the Cross-Slide the exact number of turns previously wound OUT and then continue to wind IN the to the desired depth of cut. 7. Repeat steps 4, 5, 6 & 7. Proceed in this manner until the thread is completed. To order parts and supplies: 800.343.9353 >> eastwood.com...
• Any gear that fits as an idler in position C 2. (Fig 16) To cut 0.4mm/T, use: • 20T in position A • 50T in position B • 40T in position C • 60T in position D Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
Page 17
GEAR SELECTION CHART FOR CUTTING SAE THREADS GEAR GEAR SELECTION CHART FOR CUTTING METRIC THREADS mm PITCH GEAR 1.25 1.75 To order parts and supplies: 800.343.9353 >> eastwood.com...
Page 18
(turn the spindle by hand while checking backlash). Adjuster ‘A’ 7. Replace the Gear Train Cover and secure with the two socket head cap screws. FIG. 19 " " " " Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
Page 19
Any mis-adjustments will have an adverse effect on the ability of the Lathe to hold tolerances and will transfer to the Tool Tip. It is critical to have as little movement of the Tool as possible. To order parts and supplies: 800.343.9353 >> eastwood.com...
Page 21
Jaws fully and exert pressure on the outstanding Jaw while turning the Chuck Key until it snaps down into position. FIG. 24 4. Re-check Jaws to make sure they all meet in the center. Repeat previous step if one is out of position. To order parts and supplies: 800.343.9353 >> eastwood.com...
2. Remove by unthreading the Caps and pulling out the Brushes from their bores. 3. Replace the Brushes into the bores using extreme care not to chip them of damage the springs. 4. Replace the Retainer Caps. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
Tool extended too far out of Tool Holder Cutting Tool Tool Holder. Vibration and Worn Tool cutting surface Sharpen Tool. Noise While Running Too fast or too slow of a Spindle speed Adjust Spindle speed as required. To order parts and supplies: 800.343.9353 >> eastwood.com...
