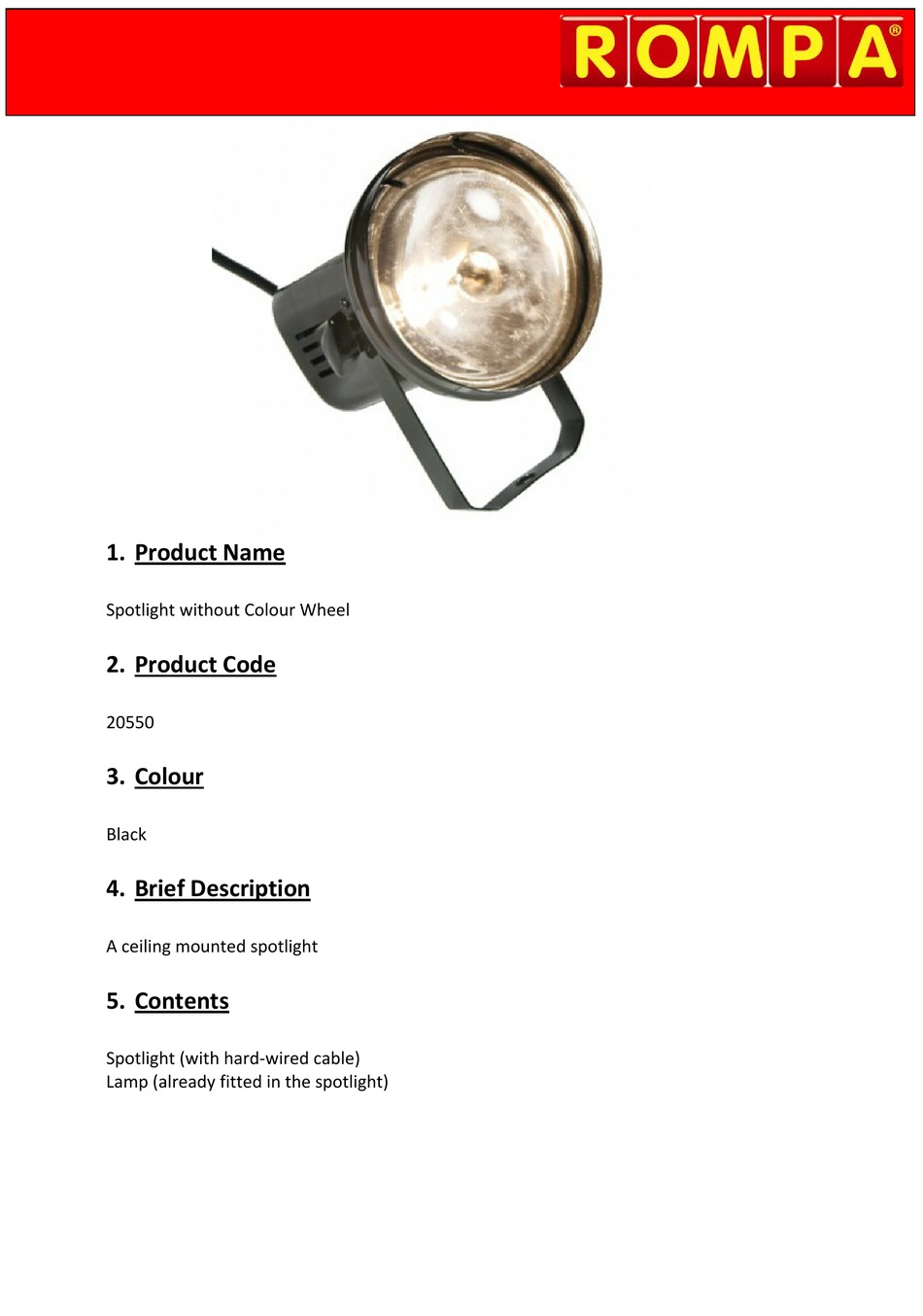

- Page 1 1. Product Name Spotlight without Colour Wheel 2. Product Code 20550 3. Colour Black 4. Brief Description A ceiling mounted spotlight 5. Contents Spotlight (with hard‐wired cable) Lamp (already fitted in the spotlight) ...
- Page 2 6. Snoezelen® Stimulations • Sight 7. Best Use For maximum effect, use in a darkened room in conjunction with a Coloured Mirror Ball. Ceiling‐mount or use the Wall Bracket. 8. Compatible ROMPA® Products 16323 ‐ 20cm Coloured Mirror Ball 16324 ‐ 25cm Coloured Mirror Ball 20547 ‐ 20cm Mirror Ball 20546 ‐ 30cm Mirror Ball 18524 ‐ Motor 1RPM 18525 ‐ Motor 1/2 RPM 20548 ‐ Replacement Lamp for Spotlight 9. Starting Up • Fix the spotlight to the wall or ceiling using the bracket attached to the spotlight. • Use an appropriate safety chain or safety mechanism. • Adjust the angle of the spotlight: then re‐tighten the screws afterwards. • Plug in. 10. Detailed Description ...
- Page 3 11. Safety • For indoor use in dry environments only. • Only connect to an earthed mains outlet of 230Vac/50Hz. • Installation should be carried out by a competent adult. Seek professional advice from a suitably qualified person if in doubt. • We recommend the use of a safety chain or safety mechanism – in the highly unlikely event of the spotlight falling, this would stop the spotlight falling. A solid chain, ...
- Page 4 12. Technical Specification Power: 230Vac, 50Hz Power consumption: 30W Weight: approximately 1kg Size: 15 x 12 x 11.5cm RoHS: RoHS compliant Fuse: 3Amp BS1362 fuse in plug (BSI approved) Cable: 90cm long Lamp: Par 36 6Volt 30Watt Halogen ...
- Page 5 13. Installation • Fix the spotlight to the wall or ceiling using the bracket attached to the spotlight. There is a hole in the bracket to facilitate this. The hole in the bracket is 10mm diameter. Make sure the surface you attach the spotlight can support its weight (approx. 1kg). • Use an appropriate safety chain or safety mechanism just in case the spotlight should ...
- Page 6 14. Care and Maintenance Unplug before any maintenance and allow to cool thoroughly before handling. To change the bulb (20548): Unplug and allow to cool. Remove the fixing ring by pressing it together. Remove the old lamp from the spotlight and loosen the wires. Loosen the screws on the new lamp with an appropriate screwdriver. 5. Connect the wires with the lamp using an appropriate screwdriver. 6. Replace with a new bulb of the same specification: 6V 30W Par 36 lamp (20548). 7. ...
- Page 7 15. Troubleshooting • Check the Spotlight is plugged in. Further copies of these instructions can be downloaded at www.rompa.com We hope you find our instructions invaluable. If you have any suggestions for improving them further your comments will be greatly received – please contact us at producthelp@rompa.com SPOTLIGHT WITHOUT COLOUR WHEEL, February 2013 Copyright ROMPA®Ltd...
