VADA
TWIN MOTOR MACERATOR
SPECIFICATIONS
Recommended use
Reece Product Code and
Description
Dimensions
Inlet Diameter
Vertical Pumping Height
Horizontal Pumping Distance
Maximum Temperature
Inlets
Electrical Power Supply
Motor Power Rating
Recommended Discharge Pipe
Size
Alarm
Casing
Warranty
Standards
PRODUCT CONFIGURATION AND DIMENSIONS
Disclaimer Products in this specification manual must by regulation be installed by licensed and
registered trade people. The manufacturer/distributor reserves the right to vary specifications or delete
models from their range without prior notification. Dimensions and set-outs listed are correct at time of
publication however the manufacturer/distributor takes no responsibility for printing errors.

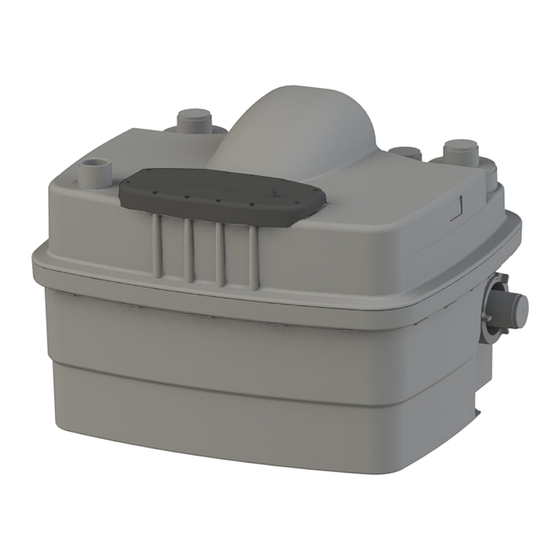

The Vada Twin Motor Macerator has two powerful
motors to remove waste from several fixtures
and appliances. With multiple inlets, the unit can
handle both grey water and black waste water for
commercial applications.
VADA COMMERCIAL TWIN MOTOR MACERATOR
597 x 380 x 515 (W x H x D)
40 to 100mm
Up to 11 meters
Up to 110 meters at 1% grade
70°C
5
220 - 240 V - 50 Hz
2 X 1500 W
DN40 uPVC pressure pipe
Standard wired alarm panel
Grey
2 years
ATS 5200.101:2005, WMKA 23048
page 1 of 7
Advertisement
Table of Contents
Related Manuals for Reece VADA TWIN MOTOR MACERATOR
Summary of Contents for Reece VADA TWIN MOTOR MACERATOR
- Page 1 VADA TWIN MOTOR MACERATOR SPECIFICATIONS Recommended use The Vada Twin Motor Macerator has two powerful motors to remove waste from several fixtures and appliances. With multiple inlets, the unit can handle both grey water and black waste water for commercial applications.
- Page 2 page 2 of 7 VADA TWIN MOTOR MACERATOR PARTS DIAGRAM Description Part No Complete motor with trap and cutter MPR4 Cutter set COUCHI COUCHI42 Coupling disc COUCHI BL120124 Impeller nut M8 for COUCHI NP100710 Impeller R3 BL120308 Washer M8 NE100125 NRV set + rubber COUDYR3 Level pressure switch CUBIC...
- Page 3 page 3 of 7 VADA TWIN MOTOR MACERATOR PUMPING DISTANCE PERFORMANCE max 10m max 20m Note: 1% fall minimum required on the horizontal run. max 30m Pipe size must be increased by 1 size minimum after the first 5 meters of horizontal run max 40m max 50m max 60m...
- Page 4 page 4 of 7 VADA TWIN MOTOR MACERATOR FIG 1 Connecting incoming waste water: 1. Connect the first waste line by cutting off the seal cap at the top of the unit with either a stanley knife or hacksaw. 2. Connect the rubber connector to the outlet and tighten with a metal hose clamp (Fig 1).
- Page 5 page 5 of 7 VADA TWIN MOTOR MACERATOR INSTALLATION NOTES 1. The twin macerator is to be installed with at least 600mm of working room around and above the unit to facilitate such maintenance work as required. 2. Isolating valves (not supplied) must be fitted on waste inlets and on the discharge to ensure that any service/ maintenance can be carried out safely.
- Page 6 page 6 of 7 VADA TWIN MOTOR MACERATOR Commissioning: • Once the plumbing and electrical connections have been made, check that the connections are watertight by letting the water flow successively through each inlet used. Make sure that the unit is operating correctly by carrying out at least two start cycles with water to test the system.
- Page 7 You have purchased a quality product from Reece Australia Pty • Unsuitable or improper use Ltd ABN 84 004 097 090 / Reece New Zealand Ltd (“Reece”). • Incorrect installation or installation not in accordance with This product is covered by a 2 year product warranty.
