Summary of Contents for REDGUM Brand SPACE SAVER RG515

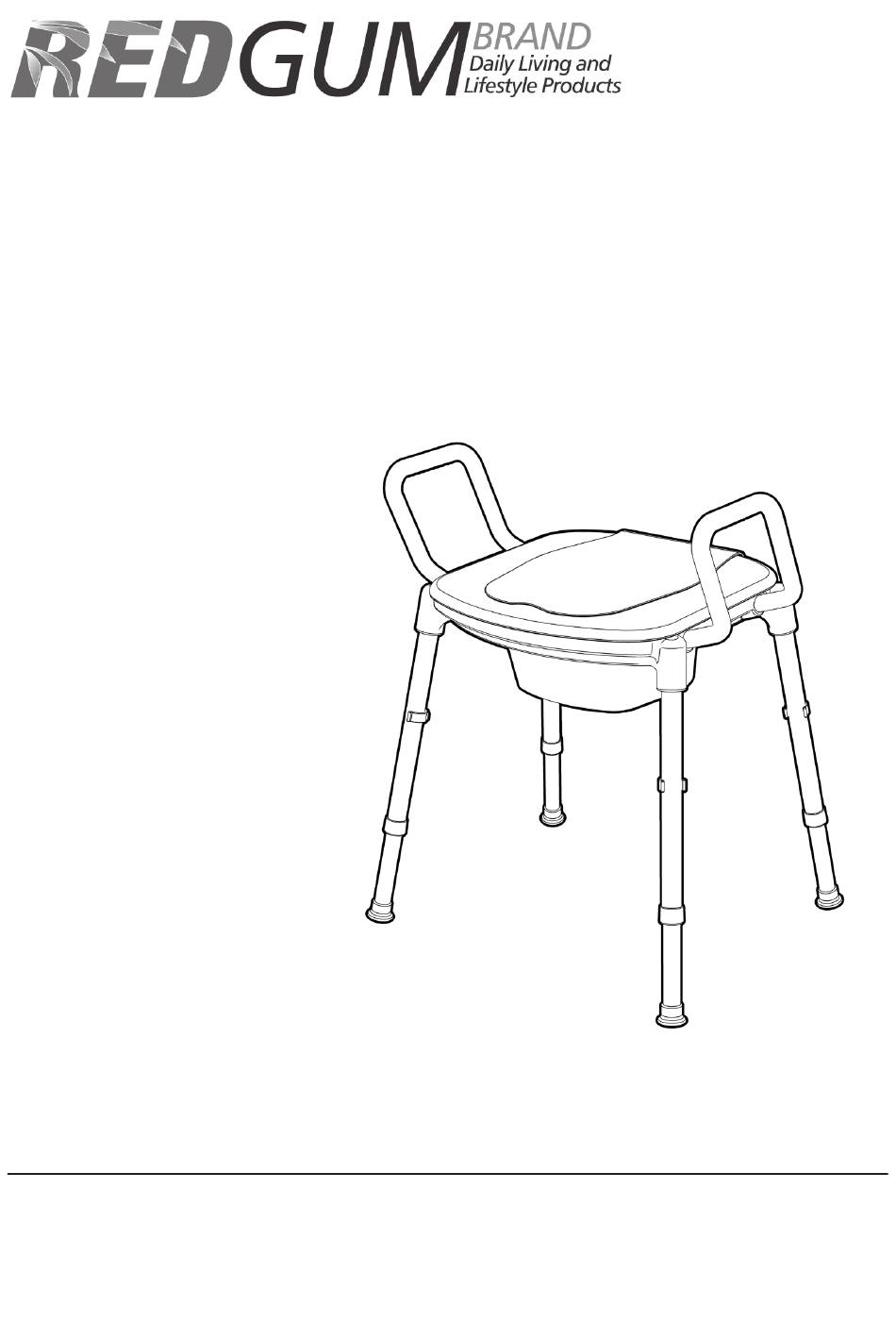

- Page 1 SPACE SAVER TOILET SEAT RAISER RG515 September 2019 PATENT PENDING USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 REDGUM Brand owns the copyright to the Space Saver Toilet Seat Raiser user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand.
-
Page 3: Table Of Contents
ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - LEG ASSEMBLY ASSEMBLY - LEG INSTALLATION ASSEMBLY - HANDLE INSTALLATION USAGE GUIDELINES - SPLASHGUARD USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY REDGUM BRAND PRODUCT RANGE NOTES redgumbrand.com.au... - Page 4 INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the Space Saver Toilet Seat Raiser please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: orders@for-de.com.au...
- Page 5 Hole 5: 600mm Hole 6: 625mm Handle Height: 150mm (seat to top of armrest) Product Weight: 3.5kg Maximum User Weight: 130kg Please contact REDGUM Brand if you would like any further information on your Space Saver Toilet Seat Raiser. redgumbrand.com.au...
- Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: PARTS: 1 x SEAT ASSEMBLY MAIN BODY TOILET SEAT TOILET SEAT FLAP SPLASHGUARD 1 x RIGHT 1 x LEFT HANDLE HANDLE 4 x ADJUSTABLE LEGS 4 x THUMBSCREWS (not shown to scale) 4 x SURE LOCK LEG CLIPS...
- Page 7 ASSEMBLY - LEG ASSEMBLY Each adjustable leg needs to be assembled prior to fitting to main body: 1. Pull out the inner leg. 2. Line up the holes at the required setting (setting can be changed at any time). 3. Insert sure lock push pin into hole and push clip until it locates around tube. 4.
- Page 8 ASSEMBLY - LEG INSTALLATION Each adjustable leg needs to be installed to main body: 1. Place seat upside down as shown below. 2. Insert assembled leg into socket. 3. Line up red press button with hole in wall of socket. 4.
- Page 9 ASSEMBLY - HANDLE INSTALLATION Each handle needs to be installed to main body: 1. Ensure angled front of handle is facing toward front of main body. 2. Insert ends of handle into sockets on side of main body. 3. Insert thumbscrew into hole on underside of main body. 4.
-
Page 10: Usage Guidelines - Splashguard
USAGE GUIDELINES - SPLASHGUARD The Space Saver Toilet Seat Raiser has a removable splashguard. To remove the splashguard: 1. Flip up the toilet seat flap and toilet seat. 2. Using the cut outs on either side, pull out the splashguard to clean or remove if not required. When re-installing the splashguard, ensure that the tapered front of the splashguard is facing toward the front of the Space Saver Toilet Seat Raiser. -
Page 11: Usage Guidelines - Do's + Don'ts
USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from your Space Saver Toilet Seat Raiser. Failure to follow these guidelines may result in damage to the Space Saver Toilet Seat Raiser and put the user at risk. 130kg Maximum User Weight. - Page 12 PRODUCT CARE - INSPECTIONS / SERVICING / CLEANING INSPECTIONS We suggest that you check your Space Saver Toilet Seat Raiser visually periodically for signs of damage or wear prior to use. Overall check that no components are loose or worn. Withdraw the Space Saver Toilet Seat Raiser immediately if you suspect damage or any other fault.
-
Page 13: Warranty
WARRANTY Your REDGUM Brand RG515 - Space Saver Toilet Seat Raiser is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. -
Page 14: Redgum Brand Product Range
Electric Beds Portable / Fixed Aluminium Ramps Exercisers Personal Alarms REDGUM Brand stock a large range of Spare Parts for all REDGUM brand products. Please contact REDGUM Brand for further information: T: +61 8 9248 4180 F: +61 8 9248 9452 E: orders@for-de.com.au... -
Page 15: Notes
NOTES redgumbrand.com.au... - Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
