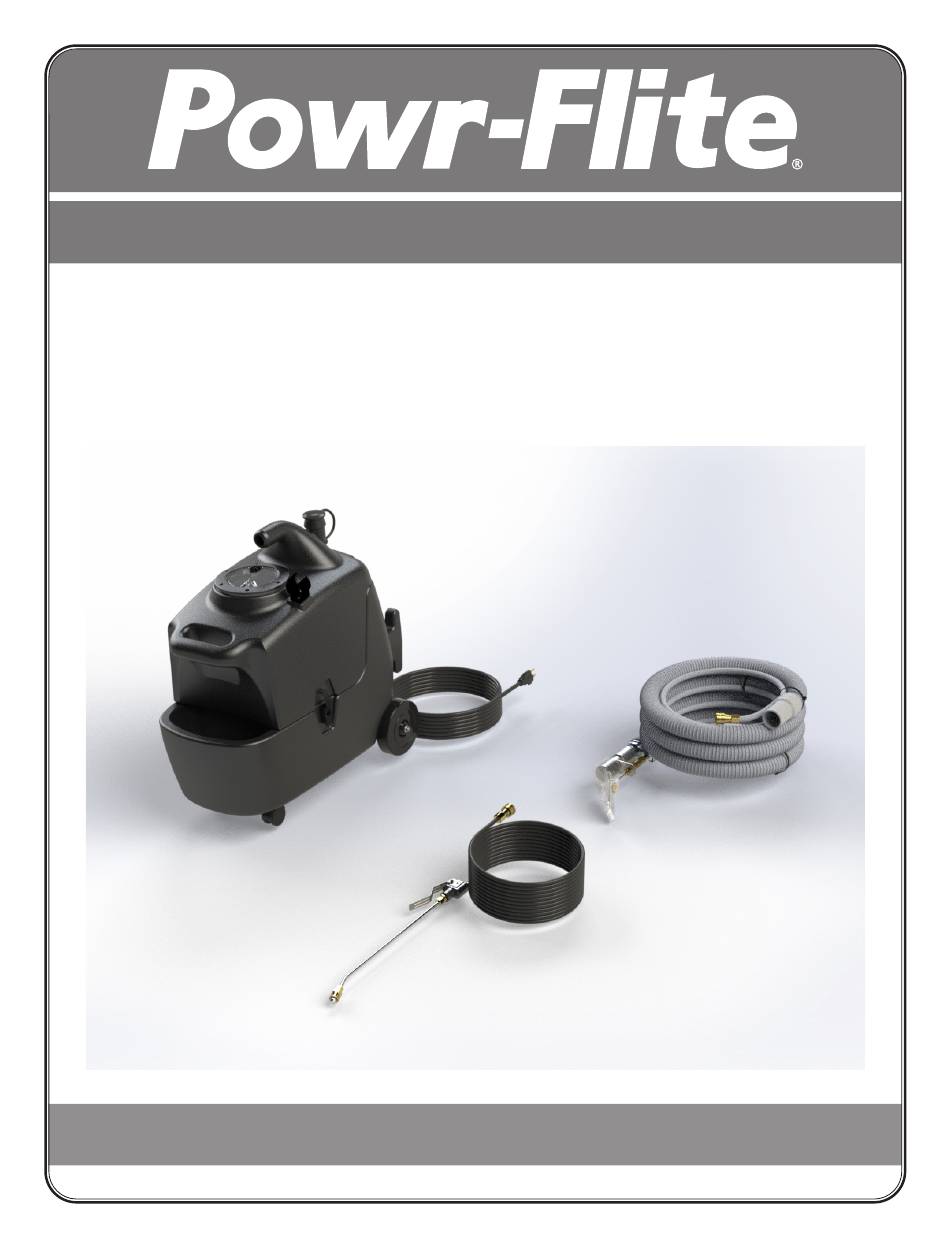

- Page 1 OPERATOR’S MANUAL NEBULA MISTER and SPECIALTY CLEANER PFMS WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony Corporation, All rights reserved PFMS-MAN 05/2020 Save These Instructions...
-
Page 2: Important Safety Instructions
Congratulations on your purchase of a Commercial Mister and Specialty Cleaner. You are now equipped to handle any and all commercial misting and carpet cleaning jobs. Your new unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. -
Page 3: Grounding Instructions
• Do not break off or pull out the ground prong on the plug. • Do not attempt to repair a warranted machine unless instructed to do so by an authorized shop or the factory. • Do not use any replacement parts except those specified on the parts list. Proper performance of the machine could be affected if substitutions are made. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS Model PFMS Input Voltage 115 VAC Plug Type Cord 25’ with on-board storage .05 with Atomizer Nozzle/.25 with fan nozzle/.25 Extraction Mode Amps Mist Mode 1A/Extraction Mode 8.9A Solution Tank 3.5 Gal/13.2 l Recovery Tank 2.5 Gal/9.5 l Dimensions 23”... - Page 5 This unit can be used as either a Mister or an Extractor to use on upholstery and for detail work. The brass atomizing nozzle provides lower saturation when spraying disinfectant while a larger brass fan nozzle is provided for large area coverage. NOTE: This mister is designed for use with all water-based disinfectants from the EPA “List N”.
- Page 6 The wand will come with two spray tip options. The lower micron size atomizing spray tip will already be installed on the wand. You will also get a higher micron fan nozzle as an option. This additional nozzle option will be taped onto the wand when you receive the unit. The installed atomizing nozzle is best for cleaning office areas, touch points, etc, as it does not saturate things like paper and boxes that could be found in offices, retail, hospitality, restaurant, educational type of environments.
- Page 7 EXTRACTOR OPERATING INSTRUCTIONS Filling the unit for use as an extractor • Unplug the unit. • Disconnect the solution and recovery tanks. • Remove the upper recovery tank. • Add water and/or chemicals to the lower solution tank. Fill only to the fill line indicated on the label on the inside of the solution tank.
-
Page 8: Troubleshooting
Solution Hose Connection 3-Way Switch TROUBLESHOOTING Possible Cause Solution Problem Pump is not primed. Depress lever on hand tool to No Spray release pressure. Solution tank level is low. Refill Solution tank.* Clogged filter. Clean the screen filter on the hose in the solution tank. - Page 10 Part No. Qty Description X8295 Screw #8 x 3/4” PX103A Lid 4” Clear w/Blk Ring X9061 Shut Off Disk X9087 Washer X9088 Screw 8-18 x 1/2” PX103AG Lid Gasket X9518 Deflector X9062 Float X9082 PVC Pipe 1-1/2” x 6-1/2” X9076 Bulkhead Fitting 1-1/2”...
- Page 11 Part No. Qty Description 19498 Power Cord 18/3 Ga. SJTW x 25’ Yellow X8201 Screw #8 x 3/8” 7CZ001 Vacuum Hose 2” PX215 Hose Clamp FJ5082 Oscillating Pump PX204 Pump Mount PX214 Nylon Fitting 90° 1/8” MPT x 1/4” Hose Barb X8271 Nyloc Nut X9064...
