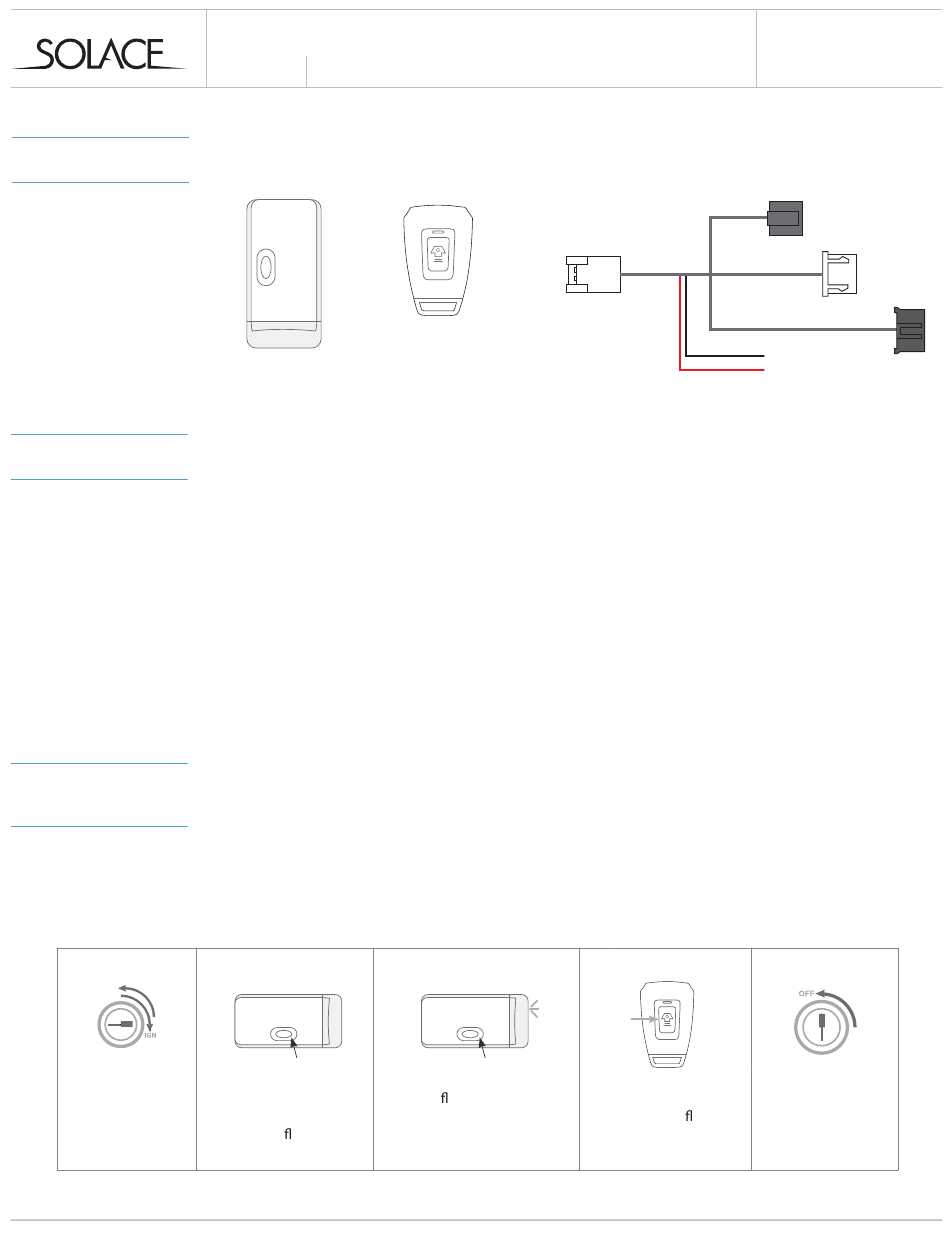

Solace LoRa Data RF Kit Installation Manual

PARTS
PROGRAMMING
REMOTE
PROGRAMMING
1
STEP
Turn the
Ignition ON then
OFF 2x leaving it in
the ON position at
the 2nd time.
solaceremotestarters.com
MODEL LoRa Data RF Kit
ANTENNA
DATA PROTOCOL SELECTION
With the Antenna plugged in and powered up:
1 Leave Ignition in OFF position
2 Press programming button (antenna button) 8x within 10 seconds (White LED will flash 2x)
3 Choose your protocol below by pressing the programming button:
TYPE 1 - Press 2x - Solace RF (Default)
TYPE 2 - Press 4x - iDatalink RF
TYPE 3 - Press 6x - Fortin RF
TYPE 4 - Press 8x - D2D
TYPE 5 - Press 10x - Future Use
4 After 3 seconds White LED will flash the number of times according to your selection.
REMOTE PROGRAMMING - ONLY REQUIRED FOR D2D
Follow the "Remote Programming Procedure" from the manufactures programming instructions.
Visit the appropriate website or download the "LoRa Antenna Full Guide w/modules" at
www.solaceremotestarters.com
For Devices that do not have a remote coding procedure follow the procedure below.
2
STEP
2X
Press and release the
programming button on until LED ashes turns on solid.
the antenna 2 times.
The LED will ash 1x then
2x.
REMOTES
REMOTES MAY BE
DIFFERENT THAN
PICTURED
3
STEP
HOLD
Press and hold for 3 seconds
Release programming
button.
DAC-ADPT
ANTENNA IN
4
STEP
x1
Press the button on each
transmitter. LED on
antenna will ash 1x
for each remote
programmed.
INSTALLATION
GUIDE
RF CONN 1
RF CONN 2
RF CONN 3
BLACK - GROUND
RED - 12V+ (FUSED)
5
STEP
Turn the
Ignition OFF
to exit
programming.
REV.02/02/18
