Summary of Contents for Glyn EZ864 PY

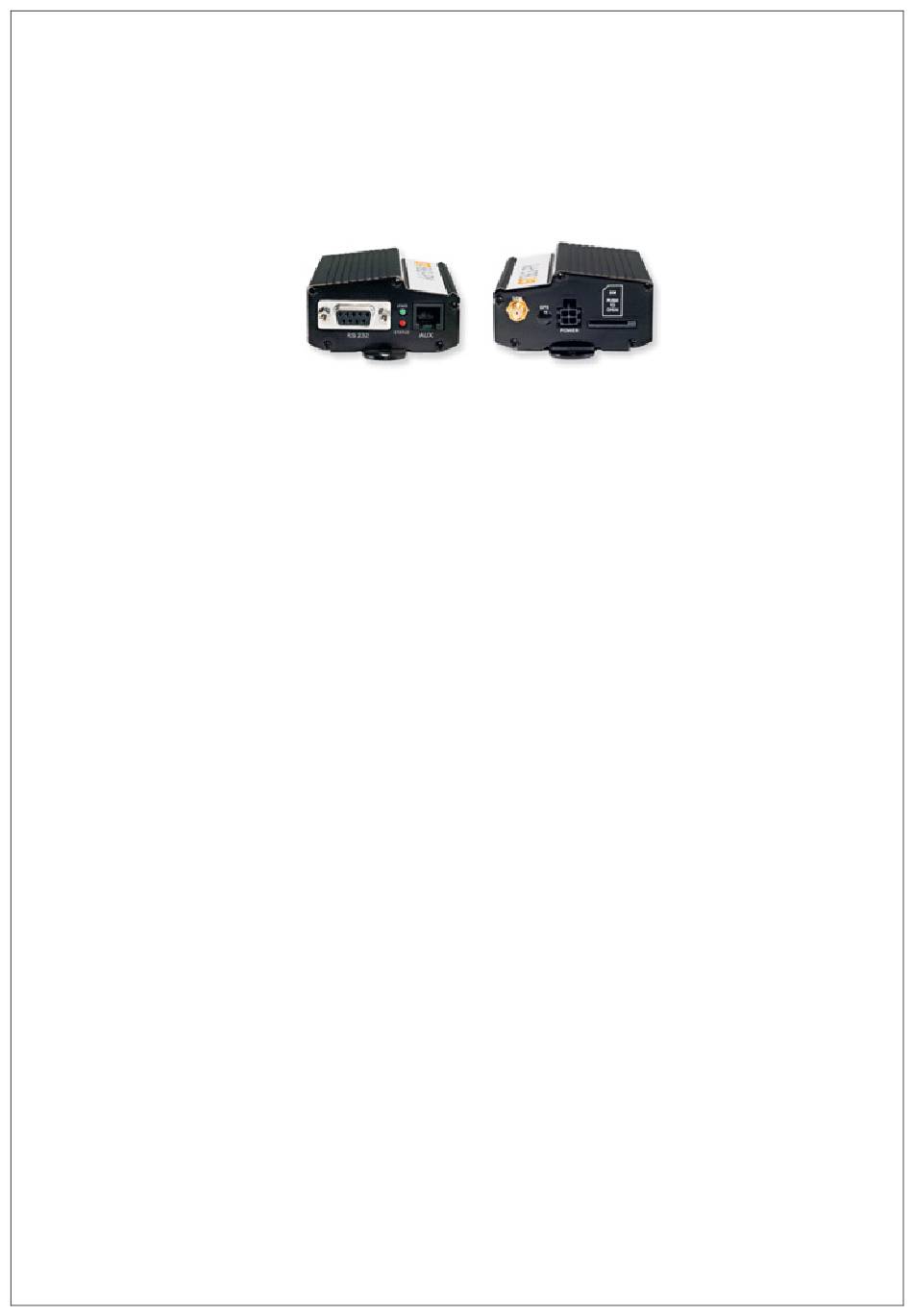

- Page 1 EZ864 PY Telit Cellular GSM/UMTS Engine Hardware guide for EZ864 PY Terminal version 3.2 Date: 01/09/2011...
- Page 2 1. Hardware Features of the EZ864 PY Feature Implementation Incorporates Telit GC864-QUAD The Telit module handles all GSM/ processing for, signal and data within the GC864-QUAD V2. Frequency bands Quad band: GSM 850/900/1800/1900MHz Power supply Single supply voltage 5V to 30V Operating temperature -20°C to +65°C ambient temperature...
-
Page 3: Interface Description
2. Interface Description Overview EZ864 PY provides the following connectors for power supply, Interface and antennas: 1. SMA connector (female) for GSM antenna 2. 4-pole 3mm Micro Mate-N-LOK connector for power supply. 3. SIM card holder 4. 9-pole (female) SUB-D plug for RS-232. - Page 4 Block Diagram EZ864 PY Figure 3 shows a block diagram of a sample configuration that incorporates a EZ864 PY and typical accessories. Antenna GC864-QUAD V2 Cellular LED GPIO UART 1 Power 9 pin D-Type Com/ Level Shifter RS232 Level RS232...
-
Page 5: Power Supply
An internal fuse ensures an electrical safety according to EN60950-1. This fuse is not removable. A fast acting fuse 0.8A with melting is necessary to use with the EZ864 PY at a 24V power supply system for vehicles. The power supply must be compliant with the EN60950 guidelines. - Page 6 2.4 RS-232 Interface The serial interface of the EZ864 PY is intended for the communication between the GSM module and the host application. This RS-232 interface is a data and control interface for transmitting data, AT commands and providing multiplexed channels. EMC immunity complies with the vehicular environment requirements according to EN 301 489-7.
-
Page 7: Gpio Interface
4 – GPIO 3 5 - ADC1 6 – Power VIN Status LED Red LED displays the network status of the EZ864 PY Red LED status Device Status permanently on a call is active fast interrupt sequence (period 0,5s, Ton 1s) -
Page 8: Mechanical Characteristics
Green LED status Device Status permanently ON Unit active permanently OFF device off Mechanical Characteristics Weight 180g Dimensions (max) L x W x H 83m x 64 x 33mm Temperature range -20°C to +65°C ambient temperature Air humidity 5% - 85% Casing material Aluminum Mechanical characteristic... -
Page 9: Safety Recommandations
7. 2-Year Limited Warranty Glyn warrants, to the original purchaser, that this equipment shall be free of defects in materials and workmanship for a period of two (2) years. This warranty does not apply if the product has been misused or has been damaged by accident, abuse,... - Page 10 8. Product specified approval for CE Name: Industrial GSM/UMTS Communication unit Model: EZ864 PY Reference standard(s): Radio Note: test only for GC864 module Number Market Standard Procedure Europe EN 301 511 V9.0.2 Spurious Emissions testing Number Market Standard Procedure Europe EN 301 489-7 V1.2.1 partial testing and report...
