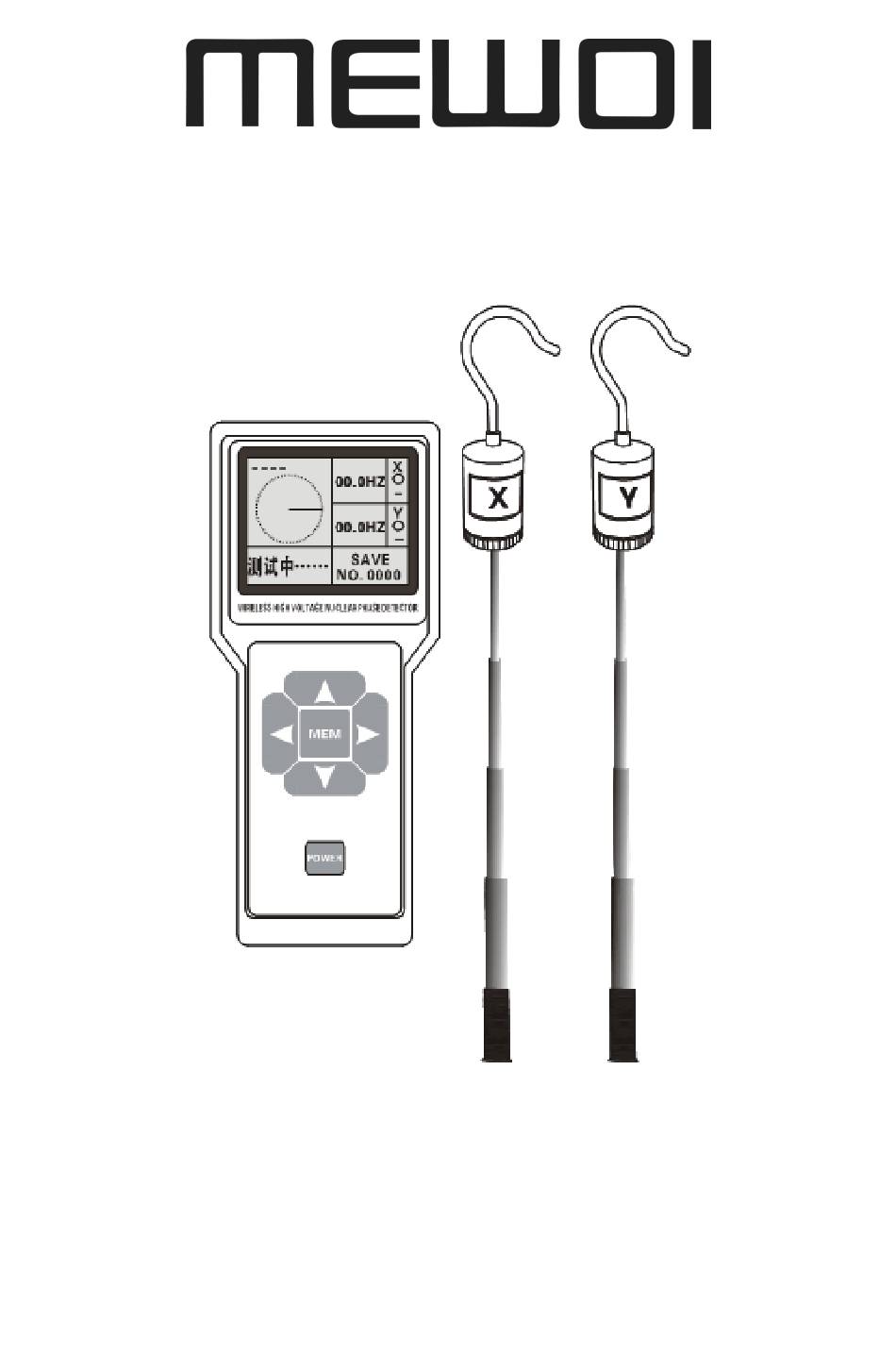

- Page 1 Wireless High Voltage Phase Detector MEWOI2600 User Manual www.mewoi.com...
-
Page 3: Table Of Contents
CONTENT Warning ....................1 I . Brief Introduction ................3 II. Electrical Symbols ................3 III．Technical Specification ..............4 IV．Structure ..................6 V．Operation ..................7 1. Host Power On/Off.................. 7 2. Detector Power On/off ................7 3. Data Maintenance ..................8 4. -
Page 4: Warning
Warning Thanks for your purchase of Wireless High Voltage Phase Detector MEWOI2600 of our company. In order to make better use of this product, please make sure to: ——Read this manual in detail and the operator must totally understand this manual and be in proficient in operation of this meter before making test on spot. - Page 5 long time. It must be operated by qualified staff that has the authorization on tearing down or repairing this meter. For the reason of this meter, in case that any danger may occur if continue to use it, stop using it immediately and seal it up for keeping at once, which shall be dealt with by qualified authorization agency.
-
Page 6: Brief Introduction
When the bare wire voltage exceeds 35kV, a non-contact phase detect must be used.MEWOI2600 also has the functions of testing phase, frequency, phase sequence, checking the electricity, and judging transformer groups. -
Page 7: Technical Specification
Warning! It must strictly abide by the safety rules. Otherwise, it may cause personal damage or casualty accident. Double insulation Alternating Current (AC) Direct Current (DC) IV．Technical Specification High-voltage phase detect, frequency, phase, Function phase sequence, electrical inspection. Host: DC9V,6pcs alkaline batteries,Detector:Zinc manganese... - Page 8 45.0Hz～65.0Hz； Accuracy： ≤±2Hz； Definition： Frequency Range 0.1Hz Transmission 433MHz、315MHz frequency 3.5inch Color Display；Display Field：71mm× 53mm Phase Phasor diagram and digital display indication Power Green indication light indication Working Sound and Light Indicator,red double flash indication indicator and "beep - beep - beep" beep sound Display Speed 2Times/Second 9999Sets (Replace the battery without losing...
-
Page 9: Structure
Working Temperature -10℃～40℃; below 80%rh and Humidity Storage Temperature -20℃～60℃; below 70%rh and Humidity Degree of IP63 protection GB13398－92、GB311.1－311.6－8、3DL408－ 91,《General technical requirements for portable Safety Protocol nuclear power apparatus for use in 1kV ~ 35kV portable power plants DL/T971-2005》,IEC61481 －A2；2004；IEC 61243－1 ed.2:2003 Host:1set, Detector: 2 pieces, Probe: 2pcs, Probe Hook: 2pcs,insulation rod: 2pcs, 1 piece of Accessories... -
Page 10: Operation
1. USB data download interface 2, 3.5 inch color LCD screen 3. Host 4. Up and down arrow keys and MEM control keys 5. Host POWER button 6. Detector probe hook (2pcs) 7. Detector probe (2pcs) 8. X detector 9. Power indicator, 10. Detector POWER button 11. -
Page 11: Data Maintenance
button to shut down, if the POWER indicator flashing or darkening after power on, it is possible that battery voltage is low, please replace the battery. After the detector is switched on for 5 minutes, the POWER indicator is flashing continuously, indicating that the detector will automatically turn off, and the POWER indicator will blink continuously for 30 seconds to shut down automatically to reduce battery consumption. -
Page 12: Data Deletion
turning upwards or downwards in cycle. When reaching “EXIT” ,Press MEM to exit from data reference mode, returning to normal testing mode. 6. Data Deletion Under data reference mode, press Right Left Arrow button to “Delete” position, press MEM button to enter data deletion mode, press Right or Left Arrow to move to “YES”... -
Page 13: Phase Detection, Phase, Frequency, Phase Sequence Test
two clip self-calibration line are respectively connected to the two probes of the detector, plug the self-calibration line into 220V AC power socket, self-check on the same fire line, the host indicating same phase, if no power may be inserted in the zero line, anti-plug the self-calibration line plug. - Page 14 and the host will voice prompt "X signal normal", "Y signal normal". Under phase detection mode, close the X detector to or contact any phase line, and then close the Y detector to or contact the other phase lines. High voltage phase detection, without direct contact with the high-voltage wire, close the hook detector to the wire gradually, when the electric field is induced the detector will sound "beep, beep, beep"...
-
Page 15: Replacing Batteries
VIII.Replacing Batteries Warning! In case that the battery’s cover board is not well closed, it is forbidden to make test. Otherwise, it is dangerous. Pay attention to the polarity of battery, in case of damage to the meter. Do not mix in the use of new and old batteries. The battery is not enough. -
Page 16: Accessories
the two screws. 3. Press POWER button to check whether the meter can be powered on normally. If not, please repeat the operation according the step 2. IX. Accessories Host 1pcs Detector 2pcs Detector Probe/Hook Probe 2pcs each Calibration line USB Cable Monitoring software (CD) 1set... - Page 17 esting pecialist...
