Summary of Contents for Admiral SNAKE

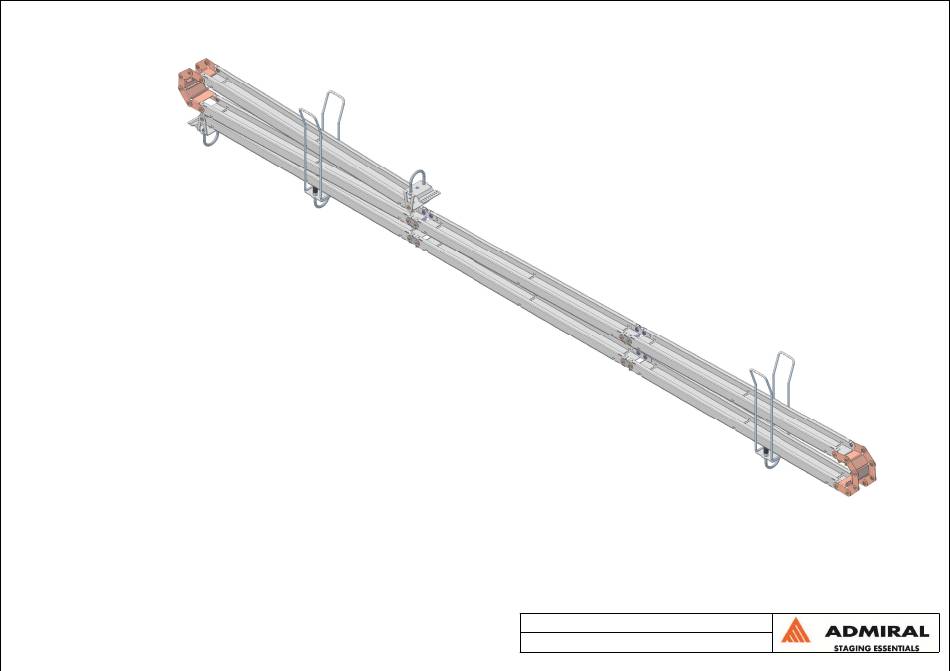

- Page 1 Assembly instruction Admiral SNAKE cable guide Product: Code:...
- Page 2 SNAKES can have a base of 2, 3 and 4 meter. Product: Code:...
- Page 3 SAM draadbeugel vangarm m beugel Use lenth profile always in the direction of the arrow. ( code ending with - Z- means black coated) Keep the bended part to the base of the arrow. Assembly instructions Admiral Snake Product: Code:...
- Page 4 RECOGNIZE the parts NOTE: Long brass bearings only to be used with connection elements. Product: Code:...
- Page 5 Building sequence: START NOTE: Each build starts with the bottom hinge. Slots faces to "outside" and bottom. No matter the lenght of the base of the snake. Product: Code:...
- Page 6 Building sequence: wanted end product STEP 1: Detail B Connect hinge. NOTE: Insert short brass bearing from the inside out. Use metal ring on the outside insert rivit 4,8x8 mm Product: Code:...
- Page 7 Building sequence: STEP 2: Connect the 2e length part. NOTE: Insert the LONG brass bearing from the inside out. STEP 3: Connect the 3e length part. NOTE: Insert the LONG brass bearing from the inside out. Product: Code:...
- Page 8 Building sequence: STEP 4: Connect the bend. NOTE: Insert the short brass bearing from the inside out. Detail C NOTE: Bends are inwards and on top. Product: Code:...
- Page 9 And start with the second sequence. ( assembly of all sub-assemblys is the last step.) Connect all sub-assemblies acording drawing Detail D NOTE: Slots faces to "outside" and ceiling. STEP 6: Connect all sub-assemblies to a SNAKE. Product: Code:...
