Summary of Contents for DHD.audio SX2

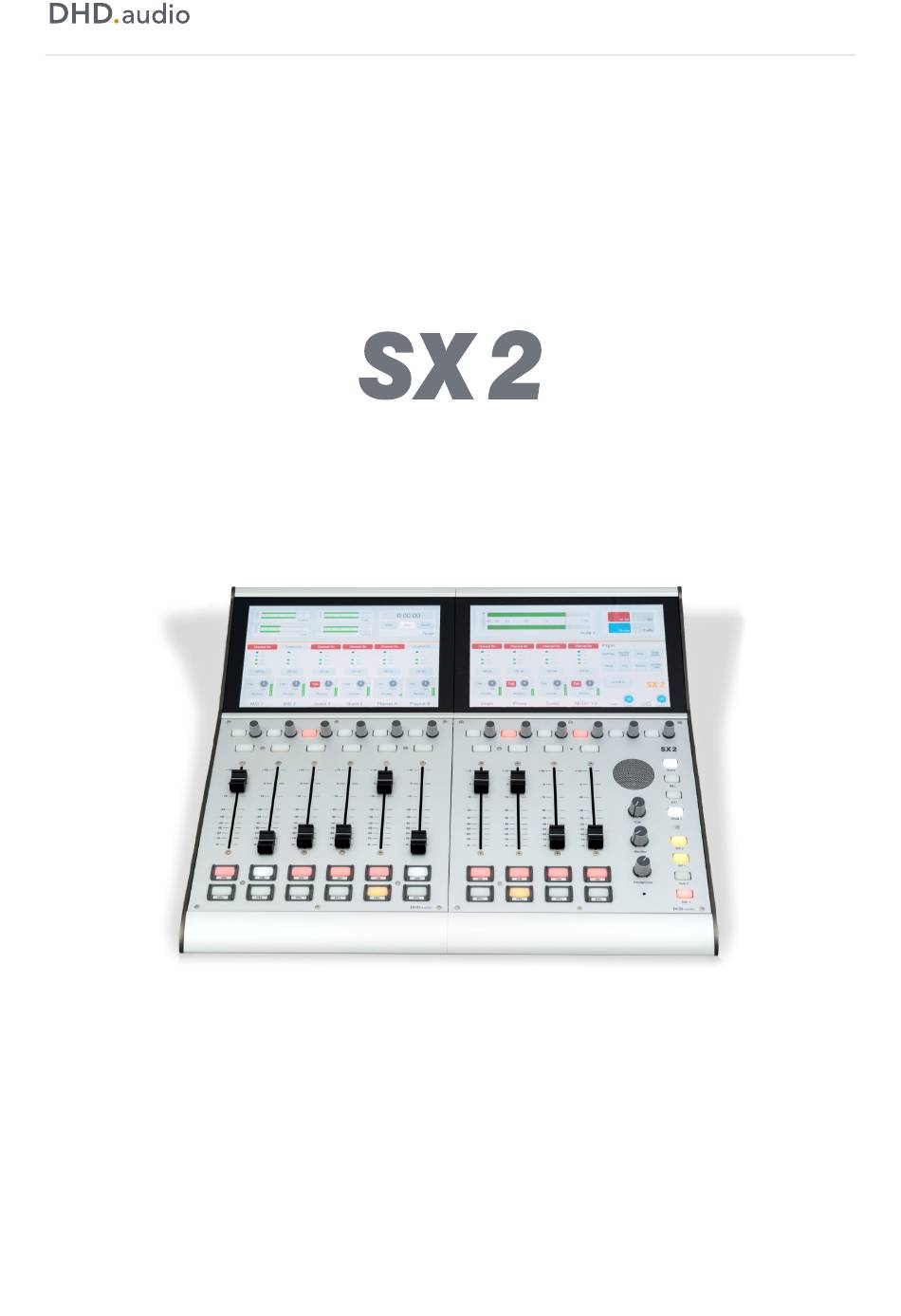

- Page 1 Support Mixing Console Bundle Information © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019...
-
Page 2: Table Of Contents
Support SX2 Mixing Console Bundle Information Table of Contents Package Contents ..........................3 52-1989A - SX2-Bundle .......................4 52-1998A - SX2-Bundle .......................5 52-1999A - SX2-Bundle .......................6 Control Module Dimensions ......................7 Chaining of Control Modules ......................10 Cabling of SX2 Bundles ........................14 52-1989A - cabling overview .....................15 52-1998A - cabling overview .....................16... -
Page 3: Package Contents
Support SX2 Mixing Console Bundle Information Package Contents Page 3 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. -
Page 4: 52-1989A - Sx2-Bundle
Support SX2 Mixing Console Bundle Information 52-1989A - SX2-Bundle Package Contents part nr. name qty. 52-5614A SX2 Central Module 52-5620A SX2 Fader Module 52-7424A XC2 Core 52-1335A XS Multi I/O Box 52-7235A XC Mic/Headphone Module 52-7080A Dante IP Audio Interface (built in... -
Page 5: 52-1998A - Sx2-Bundle
Support SX2 Mixing Console Bundle Information 52-1998A - SX2-Bundle Package Contents part nr. name qty. 52-5614A SX2 Central Module 52-5620A SX2 Fader Module 52-1830A XS2 I/O Core 52-1335A XS Multi I/O Box 52-7492A XC 19“ Adapterpanel flat 52-7493A XC blank panel... -
Page 6: 52-1999A - Sx2-Bundle
Support SX2 Mixing Console Bundle Information 52-1999A - SX2-Bundle Package Contents part nr. name qty. 52-5614A SX2 Central Module 52-5620A SX2 Fader Module 52-7424A XC2 Core 52-1335A XS Multi I/O Box 52-7492A XC 19“ Adapterpanel flat 52-7493A XC blank panel... -
Page 7: Control Module Dimensions
Support SX2 Mixing Console Bundle Information Control Module Dimensions Page 7 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. - Page 8 DHD audio GmbH Tel.: +49 (0)341 5897020 name: Haferkornstraße 5 Fax: +49 (0)341 5897022 04129 Leipzig E-Mail: dhd@dhd-audio.de Germany web: www.dhd.audio 52-5614 Dimension date name SX2 Central module 25.09.18 drawn 222 mm file name: Index A 52-5614_dimension.dwg modification date...
- Page 9 1:1 (for DIN A2 size) DHD audio GmbH Tel.: +49 (0)341 5897020 name: Haferkornstraße 5 Fax: +49 (0)341 5897022 04129 Leipzig E-Mail: dhd@dhd-audio.de Germany web: www.dhd.audio 52-5620/5820 Dimension date name SX2/RX2 Fader module 25.09.18 drawn 222 mm file name: Index A 52-5620-5820_dimension.dwg modification date...
-
Page 10: Chaining Of Control Modules
Support SX2 Mixing Console Bundle Information Chaining of Control Modules Page 10 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. - Page 11 Haferkornstraße 5 Fax: +49 (0)341 5897022 3. Screw the 3 connecting plates (parts of chaining kit) to one of the housings. 04129 Leipzig SX2 and RX2 mixing consoles E-Mail: dhd@dhd-audio.de Germany Internet: www.dhd-audio.com 4. Push the housings together, inserting the centering pins into the aluminium Name: Mie.
- Page 12 3. Screw the 3 connecting plates (parts of chaining kit) to one of the housings. Haferkornstraße 5 Fax: +49 (0)341 5897022 04129 Leipzig E-Mail: dhd@dhd-audio.de SX2 and RX2 mixing consoles 4. Push the housings together, inserting the centering pins into the aluminium Germany Internet: www.dhd-audio.com profiles of the second module.
- Page 13 Chaining of two or more modules DHD audio GmbH Tel.: +49 (0)341 5897020 Haferkornstraße 5 Fax: +49 (0)341 5897022 04129 Leipzig E-Mail: dhd@dhd-audio.de SX2 and RX2 mixing consoles Germany Internet: www.dhd-audio.com Name: Mie. Page: Example 52-5614 and 52-5620 Date: 21.03.2019 File: 52-5614_52-5620_chaining_3.*...
-
Page 14: Cabling Of Sx2 Bundles
Support SX2 Mixing Console Bundle Information Cabling of SX2 Bundles Page 14 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. -
Page 15: 52-1989A - Cabling Overview
SX2 Mixing Console Bundle Information Support 52-1989A - cabling overview Dante Audio over IP 64x64 channel interface Configuration note: 52-7080A Make sure, that 52-1335 is selected at APC 8 and 52-7235A at APC 7 and 'Use Dante Module 52-7080' checkbox is checked DHD Network, TCP/IP at the Hardware page of the SX2config software.v... -
Page 16: 52-1998A - Cabling Overview
SX2 Mixing Console Bundle Information Support 52-1998A - cabling overview Configuration note: Make sure, that 52-1335 is selected at APC 4 at the Hardware DHD Network, TCP/IP page of the SX2config software. external control option, APC 1 maintenance (configuration) 52-5620A Fader Module 52-5614A Central Module &... -
Page 17: 52-1999A - Cabling Overview
SX2 Mixing Console Bundle Information Support 52-1999A - cabling overview Configuration note: Make sure, that 52-1335 is selected at APC 8 and APC 7 at the Hardware page of the SX2config software. DHD Network, TCP/IP external control option, maintenance (configuration) -
Page 18: Pin Assignments
Support SX2 Mixing Console Bundle Information Pin Assignments Page 18 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. -
Page 19: 52-5614 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-5614 Pin Assignment D-Sub 9 - connector SubD-9 connector female Pin Type Label GPI 1 + GPI 1 + GPI1 GPI 1 - GPI 1 - GPO 1 A GPO 1 A GPO 1 B... -
Page 20: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment D-Sub 15 - connector 1 GPO 1 GPI 1 GPO 2 GPI 2 GPO 3 GPI 3 GPO 4 GPI 4 GPO 5 + or - ACI_VLO + or - GPI 5 ACI 1 5..30V... -
Page 21: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment D-Sub 15 - connector 2 GPO 6 GPI 6 GPO 7 GPI 7 GPO 8 GPI 8 GPO 9 GPI 9 GPO 10 GPI 10 + or - ACI_VLO + or - ACI 2 5..30V... -
Page 22: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment D-Sub 15 - connector 3 Label Type AES3/EBU in 1+ Type Label Din1 AES3/EBU in 1- SHIELD AES3/EBU in 2+ Din2 AES3/EBU in 2- AES3/EBU in 3+ SHIELD Din3 AES3/EBU in 3-... -
Page 23: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment D-Sub 15 - connector 4 Label Type LINE in 1+ Type Label Ain1 LINE in 1- SHIELD LINE in 2+ Ain2 LINE in 2- LINE in 3+ SHIELD Ain3 LINE in 3-... -
Page 24: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment D-Sub 15 - connector 5 Label Type LINE out 1+ Type Label Aout1 LINE out 1- SHIELD LINE out 2+ LINE out 2- Aout2 LINE out 3+ SHIELD Aout3 LINE out 3-... -
Page 25: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment D-Sub 15 - connector 6 Label Type LINE in 5+ Type Label Ain5 LINE in 5- SHIELD LINE in 6+ Ain6 LINE in 6- LINE in 7+ SHIELD Ain7 LINE in 7-... -
Page 26: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment D-Sub 15 - connector 7 Label Type LINE out 5+ Type Label Aout5 LINE out 5- SHIELD LINE out 6+ Aout6 LINE out 6- LINE out 7+ SHIELD Aout7 LINE out 7-... -
Page 27: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment S/PDIF Label Type Type Label S/PDIF S/PDIF SHIELD SHIELD Page 27 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. -
Page 28: 52-1335 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1335 Pin Assignment USB Audio The USB audio ports are fully functional digital stereo inputs and outputs. Connected to a PC, each USB audio port is recognised as an USB audio device, which can be used for playback and recording in every audio software. -
Page 29: 52-7235 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-7235 Pin Assignment D-Sub 9 - connector 1 SubD-9 connector female Pin Type Label GPI 1 + GPI 1 + GPI1 GPI 1 - GPI 1 - GPO 1 A GPO 1 A GPO 1 B... -
Page 30: 52-7235 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-7235 Pin Assignment D-Sub 9 - connector 2 SubD-9 connector female Pin Type Label GPI 2 + GPI 2 + GPI2 GPI 2 - GPI 2 - GPO 3 A GPO 3 A GPO 3 B... -
Page 31: 52-7235 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-7235 Pin Assignment D-Sub 9 - connector 3 SubD-9 connector female Pin Type Label GPI 3 + GPI 3 + GPI3 GPI 3 - GPI 3 - GPO 5 A GPO 5 A GPO 5 B... -
Page 32: 52-7235 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-7235 Pin Assignment D-Sub 9 - connector 4 SubD-9 connector female Pin Type Label GPI 4 + GPI 4 + GPI4 GPI 4 - GPI 4 - GPO 7 A GPO 7 A GPO 7 B... -
Page 33: 52-1830 Connectors
SX2 Mixing Console Bundle Information Support 52-1830 Connectors Front View USB In/Out Headphones 1 L/R Mic/Line In 1 2/2 Ch. Interface, int. powered (works with common smart phones without additional USB hub and PCs) Rear View DSUB-2 Digital AES3 In 2... -
Page 34: 52-1830 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1830 Pin Assignment D-Sub 15 - upper connector Label Type AES3/EBU in 2+ Type Label Din2 AES3/EBU in 2- SHIELD AES3/EBU in 3+ AES3/EBU in 3- Din3 AES3/EBU out 2+ SHIELD Dout2 AES3/EBU out 2-... -
Page 35: 52-1830 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1830 Pin Assignment D-Sub 15 - lower connector Label Type Type Label LINE out 5+ Aout5 LINE out 5- LINE out 6+ SHIELD Aout6 LINE out 6- SHIELD 5..30V GPO 1 GPO_COM_1-2 GPO 3... -
Page 36: 52-1830 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1830 Pin Assignment Headphone connector 1/4" stereo jack Type XLR Pin Sleeve HP_COM_RETURN HP 1 L Ring HP 1 R Page 36 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. -
Page 37: 52-1830 Pin Assignment
Support SX2 Mixing Console Bundle Information 52-1830 Pin Assignment USB Audio The USB audio port at the front panel is a fully functional digital stereo input and output. Connected to a PC or Mac, each USB audio port is recognised as an USB audio device, which can be used for playback and recording in every audio software. -
Page 38: Serial Connectors
Support SX2 Mixing Console Bundle Information Serial Connectors Page 38 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. -
Page 39: 52/Xs2 Core Serial Connectors
Support SX2 Mixing Console Bundle Information 52/XS2 Core Serial Connectors 52-1830 Core The 52/XS2 Cores (52-1801 and 52-1804) provide one serial port. The Serial port on the rear of the core is a RS232 port and can not be changed to RS422. -
Page 40: 52/Xc2 Core Serial Connectors
Support SX2 Mixing Console Bundle Information 52/XC2 Core Serial Connectors 52-7424 Core 52-7424 XC2 Core - side view with one male DSub-9 serial RS232 port You can find the pin assignment for the female RS232 port on the core in the following drawing: Pin assignment of the RS232 port on the core With that pin assignment a standard extension cable (uncrossed) can be directly connected to a PC. - Page 41 Support SX2 Mixing Console Bundle Information For more information visit support.dhd.audio Page 41 © 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019 Specifications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice.
