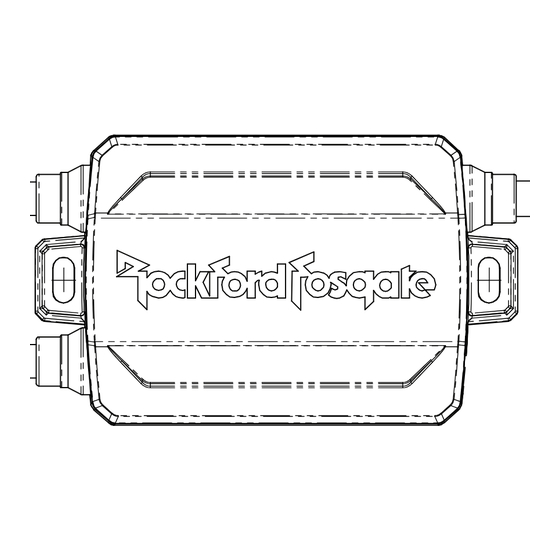

Summary of Contents for Rockford Fosgate PMX-RGB
- Page 1 112719 1230-72888-01-A Printed In China...
- Page 2 130 dB. Faites preuve de bon sens et pratiquez une écoute sans risques To add the finishing touch to your new Rockford Fosgate image, order your Rockford accessories, which include everything from T-shirts to PRACTIQUE EL SONIDO SEGURO hats.
- Page 3 CONTENTS Contents Specs • (1) PMX- RGB Color Optix™ Controller • Element Ready™ - IPX7 • (1) Power Connector • Operating Voltage - 9-24VDC • (2) Bolts • Current Draw - Up to 2 Amps • (2) Washers • (2) Nuts 38.25”...
- Page 4 Wiring Output Harness PMX-RGB Module Fused Power Harness 2 Amp Fuse Power Input Harness Black - Ground Input Red - 12 Volt + Input...
- Page 5 Wiring Wiring The (8) outputs can control a single speaker or multiple speakers with up to 2 Amps of current total across all outputs. Rockford offers multiple cable extensions as well as a “Y” adaptor, you can find the part numbers and descriptions below.
- Page 6 APP SETUP RF Connect Suppression de périphériques de l’application. Before opening app, be sure that the PMX-RGB is powered 1. Appuyez sur l’icône du périphérique jusqu’à ce qu’une fenêtre contextuelle apparaisse. Choisissez de supprimer ou d’annuler. 1. Download the Rockford Fosgate RF Connect app RF Connect 2.
- Page 7 RF Connect RF Connect Vergewissern Sie sich vor dem Öffnen der App, dass der PMX- Prima di aprire l’app, assicurarsi che PMX-RGB sia acceso RGB eingeschaltet ist 1. Scarica l’app Rockford Fosgate RF Connect 1. Laden Sie die Rockford Fosgate RF Connect-App herunter 2.
- Page 8 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.
