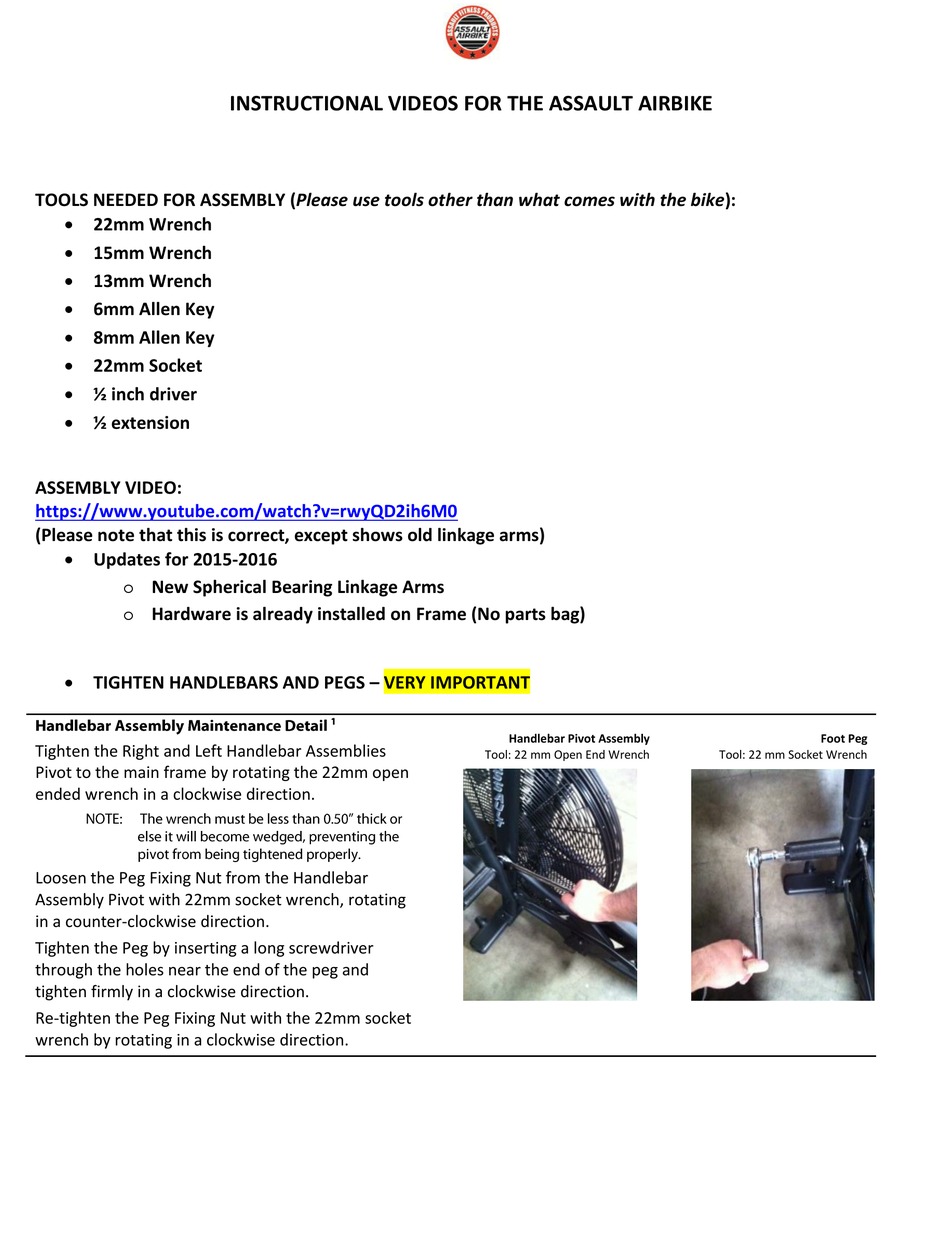

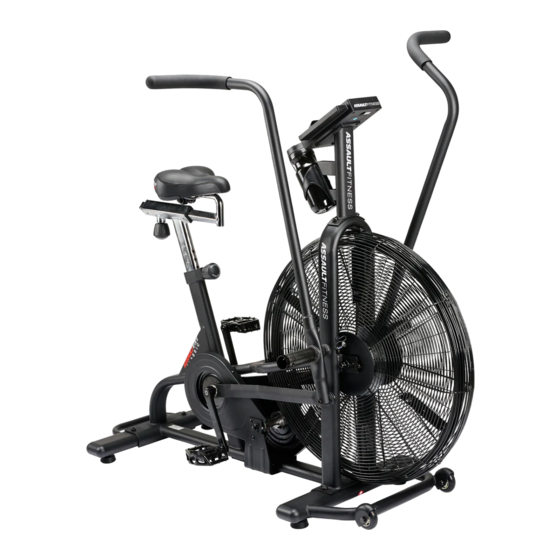

Assault Fitness Products Assault Airbike Assembly Instructions

Any questions, please contact Garrett Reder at 760-481-5555.
TOOLS NEEDED FOR ASSEMBLY (Please use tools other than what comes with the bike):
 22mm Wrench
 15mm Wrench
 13mm Wrench
 6mm Allen Key
 8mm Allen Key
 22mm Socket
 ½ inch driver
 ½ extension
ASSEMBLY VIDEO:
https://www.youtube.com/watch?v=rwyQD2ih6M0
(Please note that this is correct, except shows old linkage arms)
 Updates for 2015-2016
o New Spherical Bearing Linkage Arms
o Hardware is already installed on Frame (No parts bag)
 TIGHTEN HANDLEBARS AND PEGS – VERY IMPORTANT
Tighten the Right and Left Handlebar Assemblies
Pivot to the main frame by rotating the 22mm open
ended wrench in a clockwise direction.
Loosen the Peg Fixing Nut from the Handlebar
Assembly Pivot with 22mm socket wrench, rotating
in a counter-clockwise direction.
Tighten the Peg by inserting a long screwdriver
through the holes near the end of the peg and
tighten firmly in a clockwise direction.
Re-tighten the Peg Fixing Nut with the 22mm socket
wrench by rotating in a clockwise direction.
LifeCore Fitness Inc. | 5803 Newton Dr. Suite B. | Carlsbad, CA 92008
Phone: 760-599-4555 Toll Free: 888-815-5559 Fax: 760-599-4554
INSTRUCTIONAL VIDEOS FOR THE ASSAULT AIRBIKE
Handlebar Pivot Assembly
Tool: 22 mm Open End Wrench
Foot Peg
Tool: 22 mm Socket Wrench
