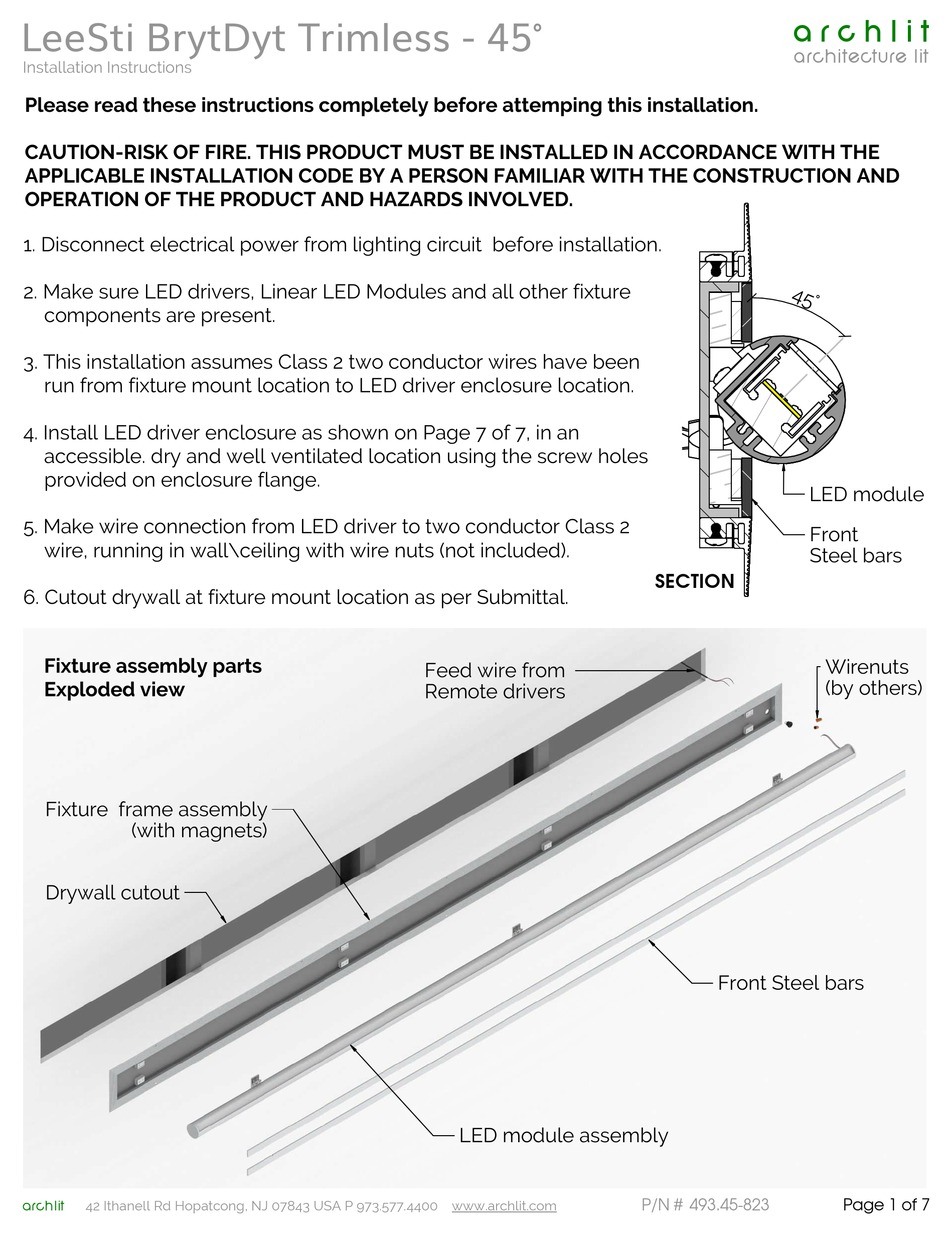

LeeSti BrytDyt Trimless - 45
Installation Instructions
Please read these instructions completely before attemping this installation.
CAUTION-RISK OF FIRE. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND HAZARDS INVOLVED.
1. Disconnect electrical power from lighting circuit before installation.
2. Make sure LED drivers, Linear LED Modules and all other fixture
components are present.
3. This installation assumes Class 2 two conductor wires have been
run from fixture mount location to LED driver enclosure location.
4. Install LED driver enclosure as shown on Page 7 of 7, in an
accessible. dry and well ventilated location using the screw holes
provided on enclosure flange.
5. Make wire connection from LED driver to two conductor Class 2
wire, running in wall\ceiling with wire nuts (not included).
6. Cutout drywall at fixture mount location as per Submittal.
Fixture assembly parts
Exploded view
Fixture frame assembly
(with magnets)
Drywall cutout
archlit 42 Ithanell Rd Hopatcong, NJ 07843 USA P 973.577.4400 www.archlit.com
v
Feed wire from
Remote drivers
LED module assembly
a r c h l i t
architecture lit
LED module
Front
Steel bars
SECTION
Front Steel bars
P/N # 493.45-823
Wirenuts
(by others)
Page 1 of 7
