Rock-N-Roller Multi-Cart Series Owner's Manual

RocknRoller Multi-Cart: Owner's Manual
Congratulations on your purchase of RocknRoller Multi-Cart, the most highly acclaimed and innovative carts or dollies ever. Although extremely easy to use,
Multi-Cart's patented and ingenious design operates on a different principle than typical carts and dollies. To obtain maximum performance from your Multi-Cart,
we recommend reading the owner's manual thoroughly. U.S. Patent # 5, 228,716; 5,476,282 & Pats. Pend.
LIMITED WARRANTY:
Multi-Carts/RocknRollers carry a one year limited warranty against defective material or workmanship on basic frame and
components. Casters and wheels carry a 60 day warranty against defects. As with any equipment, normal maintenance is required. Caution should be used
when moving any load with Multi-Carts or any other dolly.
R2 (Micro)
RnR's smallest model
expands from 26"-39" in
length with 25"/20"
(front/rear) foldable sides.
6"x1.50" rear wheels and
4"x1.0" front swivel casters
w/o brakes. Load capacity:
350 lbs./24 cu. ft. Weight: 17
lbs.
Each RocknRoller Multi-Cart shipping box should contain a frame and the following parts:
Model R2
(2) 6"x1.50" (150mmx37mm) wheels
(2) 4.0"x1.0" (100mmx25mm) stem casters
(2) ½" flat washers
(2) ½"-13 nylon lock nut OR (nut + lock washer)
(4) 1" (25mm) square plastic endplugs
(12) 3/4" (20mm) square plastic endplugs
1/8" x 1" cotter pins
(2) 16mm flat washer
(1) Owner's Manual
Recommended Tools For Assembly
Hammer
Channel Lock pliers
1/2" box end wrench
or socket

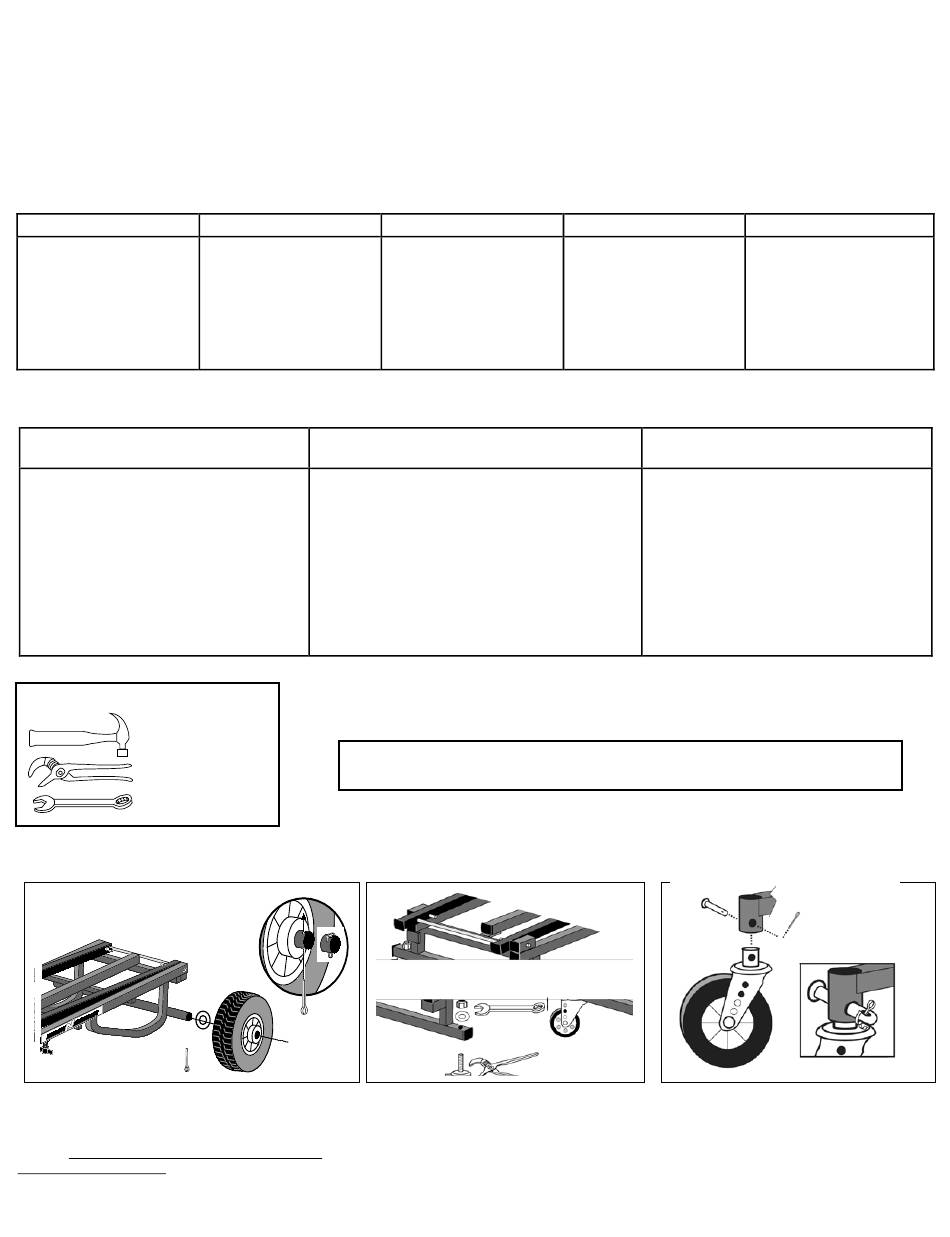

1. Installing Rear Wheels
Models R2, R6, R8, R10, R12
Gently slide wheel over axel as shown. Do not force wheels
onto axel. It is recommended to lubricate axels with light
grease before installing. Install cotter pins and bend ends
outward. Pneumatic wheels: maintain tire pressure at 25 –
30 p.s.i. Make sure valve stem core is tightened using
Schrader valve cap device. Check tire pressure periodically.
R6 (Mini)
Frame telescopes from 28"-
42.5 in length with 24"
foldable sides. 8"x2.50"
pneumatic rear wheels and
4"x1.0" front swivel casters
w/o brakes. Load capacity:
500 lbs./27 cu. ft. Weight: 25
lbs.
(2) 10"x3.0" (250mmx75mm) pneumatic wheels (R10 )
(2) 8"x2.5" (200mmx63mm) pneumatic wheels (R8/R6 )
(2) 5"x1.25" (125mmx32mm) stem casters (R10/R8)
(2) 4.0"x1.0" (100mmx25mm) stem casters (R6)
(2) ½"-13 lock nuts OR (nut + lock washer)
(2) ½" flat washers
(5) 1" (25mm) square plastic endplugs
(13) 3/4" (20mm) square plastic endplugs
(2) 1/8"x 1 1/4" cotter pins
(2) 20mm flat washers
(1) Owner's Manual
Be careful to not pinch or strike fingers during assembly. Be careful of metal burrs inside tubing.
Models R2, R6,
R8, R10
Attach front swivel casters as shown. While
tightening lock nuts, grip bearing cap with
channel lock pliers or pipe wrench to prevent
threaded stem from turning. Tighten locks nuts
firmly but not excessively tight.
Check lock nut tightness on casters stems
periodically.
Cart Models
R8 (Mid)
Identical to R10 except with
8"x2.50" pneumatic rear
wheels resulting in 20%
smaller storage footprint than
R10. Load capacity: 500
lbs./32 cu. ft. Weight: 29 lbs.
Models R6, R8, R10
Assembly Instructions
2. Installing Front Swivel Casters
R10 (Max)
Frame telescopes 34"-52" in
length with 32" foldable sides
to stack loads high. 10"x3.0"
pneumatic rear wheels.
5"x1.25" front swivel casters,
one w/brake. Load capacity:
500 lbs./32 cu. ft. Weight: 31
lbs.
Model R12
(2) 10"x3.0" (250mmx75mm) pneumatic wheels
(2) 8"x2.5" (200mmx63mm) pneumatic casters
(5) 1" (25mm) square plastic endplugs
(13) 3/4" (20mm) square plastic endplugs
(4) 1/8"x 1 1/4" cotter pins
(2) 20mm flat washers
(1) Owner's Manual
CAUTION:
Carefully insert caster stem into receptor tube
insuring that the caster stem holes line up with
the receptor pin holes. The stem should fit
very snugly in receptor tube. (If stem is
difficult to insert into tube: Occasionally, a
little excess paint or metal shavings get in the
receptor tube. If so, take a fine grain
sandpaper and ream it out a little. Then
reinsert the caster stem). Insert clevis pins.
Page 1
R12 (All-Terrain)
Frame telescopes 34"-52" in
length with 32" foldable sides
to stack loads high. 10"x3.0"
pneumatic rear wheels and
8"x2.50" pneumatic swivel
casters w/o brakes. Load
capacity: 500 lbs./32 cu. ft.
Weight: 36 lbs.
Model R12
