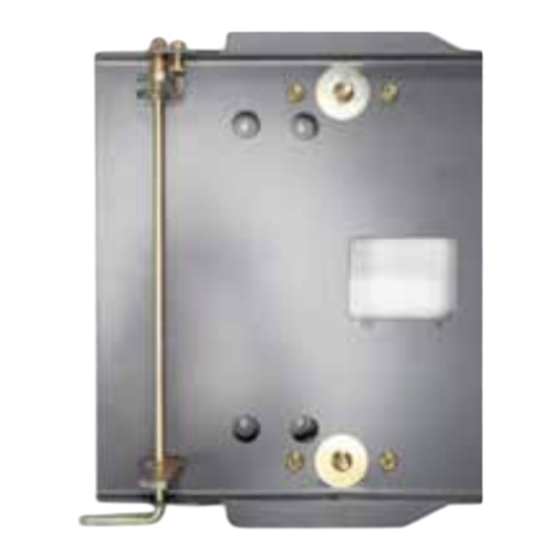

- Page 2 360 FLOATING SEAT - KIT PARTS Figure 1 Figure 2 Seat Latch Floating Seat Base Plate Figure 3 Universal Floating Seat Top Plate Figures 4 & 5 Floating Seat Hardware PAGE 1 3 60 F l o a ti ng Sea t...
- Page 3 Step Install the three floating seat dampers as shown using the six 5/16” flange bolts and serrated nuts onto the lower seat plate. Step Install the upper seat plate to the lower seat plate using the three 3/8” carriage bolts through the upper seat plate, dampers, large 3/8”...
- Page 4 Step Unplug the seat safety switch and remove any zip ties holding the wire harness to the seat plate. Remove 5/16” nuts holding seat onto seat plate by using a 1/2” socket. Step Remove the original seat plate from the GT Track bracket by using a 1/4” Allen wrench and a 9/16” wrench. Step Remove the seat plate stop from the old seat plate and install onto the new 360 seat plate.
- Page 5 Step Install the seat in the appropriate location with the four original 5/16” nylon nuts and tighten securely. Fits RZ-HD, All Hugger & Full Suspension *Original Image for Reference Fits RZ-HD, All Hugger & Full Suspension Fits Old Style RT & SRT Step Plug seat safety switch wire to seat switch under the seat and zip tie wires as they were previously.
