mineralPRO 700 Series Installation, Operation & Maintenance Manual

Remineralized reverse osmosis system

Advertisement

Quick Links

Remineralized Reverse Osmosis System
Installation, Operation & Maintenance Manual
Aug. 2016
Non-AG
mineralpro.com
MineralPRO Mfg.
PO Box 1499 Parksville B.C. V9P-2H4, Canada
T 250.586-6667
F 250.586-6670

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for mineralPRO 700 Series

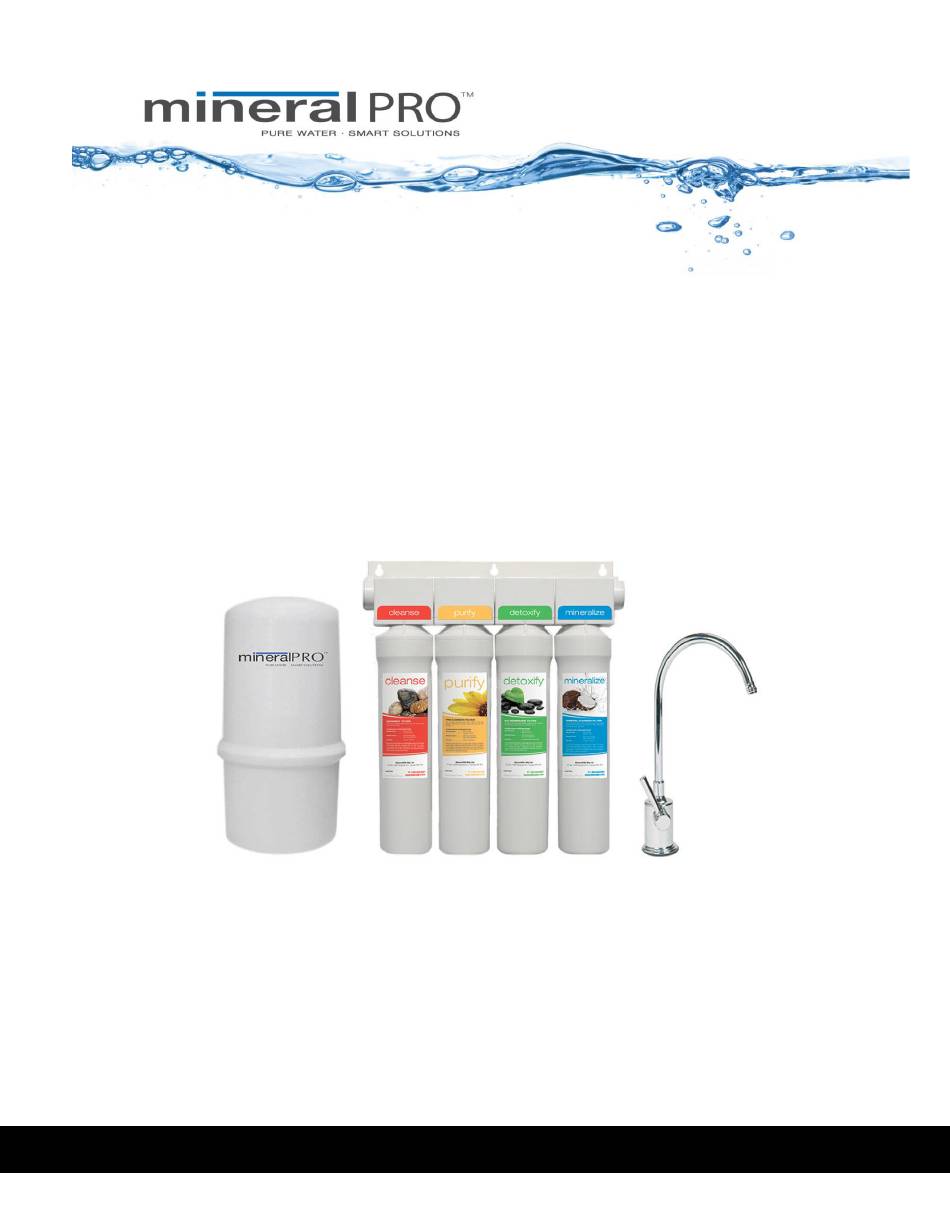

  • Page 1 Remineralized Reverse Osmosis System Installation, Operation & Maintenance Manual Aug. 2016 Non-AG mineralpro.com MineralPRO Mfg. PO Box 1499 Parksville B.C. V9P-2H4, Canada T 250.586-6667 F 250.586-6670...
  • Page 2 Though today MineralPRO is an international manufacturer of water filtration products with dealers and customers all around the world, we remain a family run business with over 150 years of experience in water treatment and take great pride in the quality and integrity of our products and our service to our customers.
  • Page 3 System Overview Stage 1 – Sediment filter (Red), recommended change 6 months or 1500 gallons. The first stage of your RO system is a five micron sediment filter that traps sediment and other particulate matter like dirt, silt and rust which affect the taste and appearance of your water. Stage 2 –...
  • Page 4: Table Of Contents

    Table of Contents Operational Parameters: ............................3 Contents of M PRO ............................4 INERAL Tools Recommended For Installation ........................4 Step 1 – Determine Location for the Faucet ......................5 Step 2 – Drill a Hole for the Faucet in a Stainless Steel Sink ................5 Step 3 –...
  • Page 5: Operational Parameters

    Operational Parameters: Operating Temperatures: Maximum 100°F (37.8°C) Minimum 40°F (4.4°C) Operating Pressure: Maximum 85 psi (6.0 kg/cm2) Minimum 40 psi (2.80 kg/cm2) pH Parameters: Maximum 11 Minimum 2 Iron: Maximum 0.2 ppm TDS (Total Dissolved Solids) < 1800 ppm Turbidity <...
  • Page 6: Step 1 - Determine Location For The Faucet

    Step 1 – Determine Location for the Faucet Note: Some sinks are predrilled or may have knockouts with 1 ½" or 1 ¼" diameter holes that can be used for your RO faucet. Determine the desired location for the faucet on your sink and check below the sink and countertop to ensure clearance of any obstructions.
  • Page 7: Step 3 - Drill A Hole For The Faucet In A Porcelain, Enamel, Ceramic On Metal Or Cast Iron

    2(f) - Drill countertop if necessary. Inspect hole and determine if more drilling is required to drill through any countertop that may be present under the sink. Use the appropriate drill bit suitable for counter material. Clean-up when drilling is completed. Step 3 –...
  • Page 8: Step 4 - Faucet Installation

    Step 4 – Faucet Installation 4(a) - Place the escutcheon chrome plate and the black rubber washer on the faucet shank (parts found in faucet box). 4(b) - Insert the faucet shank through the hole in the sink and let it rest on the sink top. 4(c) - From the underside of the sink slide on the location washer, lock washer and locking nut onto the shank.
  • Page 9: Step 5 - Water Valve (Angle-Valve) Installation

    Step 5 – Water Angle Valve Installation Caution: Water supply line to the system MUST be from the cold water supply line only. Hot water will severely damage your system. Step 6 – M PRO Module Mounting INERAL 6(a) - Determine best location for the RO module to be mounted to allow for future system maintenance.
  • Page 10: Step 8 - Tank Valve Installation

    Caution: If you have a garbage disposal, do not install the drain line near it. Installation of the drain line must be either above the disposal, or if a second sink drain is available, install it above the cross bar on the second sink. Installation of the drain line near a garbage disposal may cause the drain line to plug.
  • Page 11: Steps 9 Through 13 (Tube Connections)

    8(b) - Thread the plastic valve onto the tank fitting. Do not over tighten or the valve could crack. Steps 9 through 12 (Tube Connections) Quick Reference Tube Connections Tube Color Tube Size Tube Connection White Angle-Valve to M PRO (IN) ¼...
  • Page 12: Step 10 - White ¼" Tube Connection

    Step 10 – White ¼" Tube Connection (Angle-Valve <---> M PRO) INERAL 10(a) - Locate ¼ " white tube labeled "in" from M PRO. INERAL 10(b) - Run to side outlet on angle valve. Cut if needed and insert into valve outlet. Step 11 –...
  • Page 13: Step 13 - Install Cartridges

    Your RO tank must be allowed to fill up in order for the ice maker system to work properly. (If you are installing an ice maker kit from MineralPRO, tee off of the white line between M PRO system and faucet).
  • Page 14: Maintenance Instructions

    Maintenance Instructions Cartridge Replacement Instructions Cartridge replacement is made easy with the MineralPRO’s Quick Change system. The cartridge heads contain built in check valves and shutoff valves so that the cartridges can be changed without shutting off the water supply or the storage tank. The cartridge head is also hinged to allow easy access to the cartridges.
  • Page 15: Cartridge Replacement Schedule

    Step 11 Close the faucet and allow tank to fill up. Step 12 Record the date and information of the cartridge change on the system service record. Cartridge Replacement Schedule Stage Cartridge Name Replacement Schedule Sediment Filter 6 months Pre-Carbon Filter 6 months RO Membrane 2 years...
  • Page 16 TO DISCONNECT in collet and remove tube To disconnect, ensure the system is depressurized, push the collet square against the fitting. With the collet held in this position the tube can be removed. Fill a small glass or cup with water, add a few spoonfuls of bleach to the water and mix well. Using a plastic syringe, draw the water/bleach mixture into the syringe, hold the tube up and squirt mixture into the tube going into the tank.
  • Page 17: Tank Air Pressure

    Tank Air Pressure The storage tank air pressure should be checked yearly to ensure proper operation. Step 1 Turn off the incoming water supply at the Angle-Valve. Step 2 Open the faucet, allow the tank to empty, and then close the faucet. Step 3 Check the pressure in the tank using a tire pressure gauge on the air valve.
  • Page 18: Manifold Assembly - Back View Diagram

    - 17 -...
  • Page 19: Troubleshooting

    1. Low/Slow Production Low water pressure Assure a minimum of 40 psi incoming water pressure. MineralPRO sells a booster pump if home water pressure is low. Make sure water supply is turned on and Adapta-Valve is all the way open.
  • Page 20: Service Record

    Service Record Date of Install: ________________ Installed by: _________________ Serial No. ______________________ 1st Stage 2nd Stage 3rd Stage 4th Stage Date Sediment Pre-Carbon RO Membrane Carbon/Mineral (6 months) (6 months) (2 years) (1 year) NOTES: - 19 -...
  • Page 21: Limited Warranty

    OTHER CONDITIONS: If MineralPRO chooses to replace the equipment, it may be replaced with reconditioned equipment. Parts used in repairing or replacing the equipment will be warranted for 90 days from the date the equipment is returned to you or for the remainder of the original warranty period, whichever is longer.
