Phason

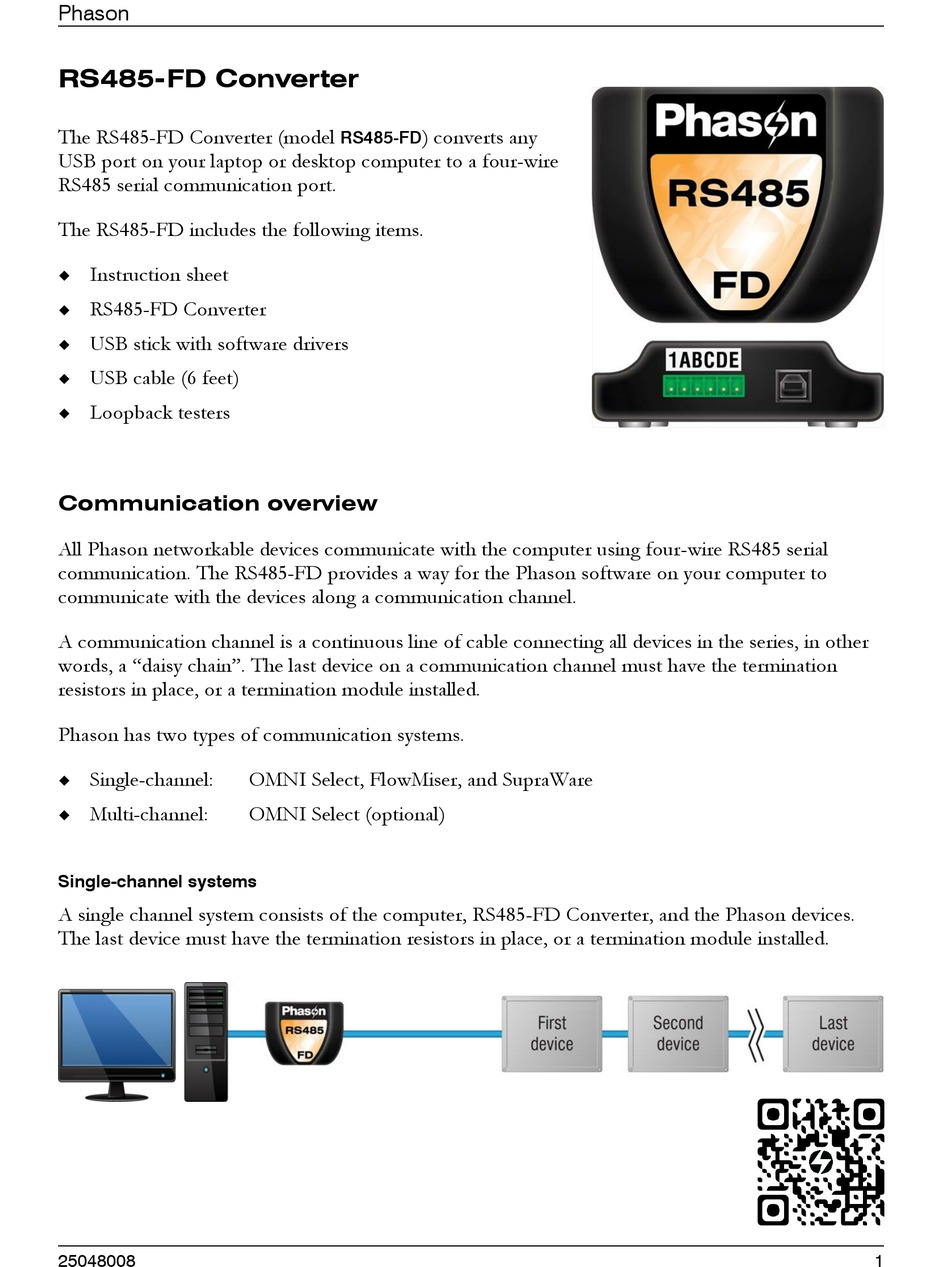

RS485-FD Converter
The RS485-FD Converter (model
USB port on your laptop or desktop computer to a four-wire
RS485 serial communication port.
The RS485-FD includes the following items.
Instruction sheet
RS485-FD Converter
USB stick with software drivers
USB cable (6 feet)
Communication overview
All Phason networkable devices communicate with the computer using four-wire RS485 serial
communication. The RS485-FD provides a way for the Phason software on your computer to
communicate with the devices along a communication channel.
A communication channel is a continuous line of cable connecting all devices in the series, in other
words, a "daisy chain". The last device on a communication channel must have the termination
resistors in place, or a termination module installed.
Phason has two types of communication systems.
Single-channel:
Multi-channel:
Single-channel systems
A single channel system consists of the computer, RS485-FD Converter, and the Phason devices.
The last device must have the termination resistors in place, or a termination module installed.
25048008
) converts any
RS485-FD
OMNI Select, FlowMiser, and SupraWare
OMNI Select (optional)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Phason RS485-FD
- Page 1 Communication overview All Phason networkable devices communicate with the computer using four-wire RS485 serial communication. The RS485-FD provides a way for the Phason software on your computer to communicate with the devices along a communication channel. A communication channel is a continuous line of cable connecting all devices in the series, in other words, a “daisy chain”.
- Page 2 2. Connecting the RS485-FD to the computer 3. Installing the software drivers on the computer Communication cable requirements The following types of cable are acceptable. Phason does not recommend other types of wire. Unshielded twisted pair (UTP), category 5 (CAT5) ...
- Page 3 E green E green E green * Used only in OMNI Select systems with the Phason Communication Hub (PCH). For information about connecting a PCH see the installation guide for that specific product. Common mistakes in communication wiring – the communication cable must be twisted Not using the correct type of communication cable ...
- Page 4 When installing shielded cable, you must connect the shielding to the building ground at one end only. Phason recommends connecting the cable to the building ground near the computer. When connecting the devices along the communication channel (daisy-chain), connect the shielding of the incoming cable to the shielding of the outgoing cable.
- Page 5 USB port If this is the first time you have connected the RS485-FD to the computer, your operating system will tell you that it has detected new hardware and ask to install the drivers.
- Page 6 Phason Installing the software drivers The USB stick that came with the RS485-FD includes software drivers for Windows 7 and higher. The first time you connect the RS485-FD, your operating system will ask you for drivers. Drivers tell the computer how to operate the RS485-FD.
- Page 7 A B C D connector must line up as shown in the diagram. Optional communication line protection Phason's Data Surge Suppressor (model ) protects four-wire, dual-pair communication lines from temporary high-voltage conditions caused by electrical interference, power surges, and lightning strikes.
- Page 8 Phason Inc. 2 Terracon Place Winnipeg, Manitoba, Canada E-mail: support@phason.ca Phone: 204-233-1400 R2J 4G7 Web site: www.phason.ca Fax: 204-233-3252...
