1-800-447-2838
The CoverLink Wireless Control system controls access to pool cover operation. The CoverLink Wireless Control
uses a Personal Identification Number (PIN) in place of a Key. Entering a valid PIN into the Control Pad allows
access to the cover and uncover operation for the pool cover.
COVERLINK WIRELESS CONTROL FEATURES

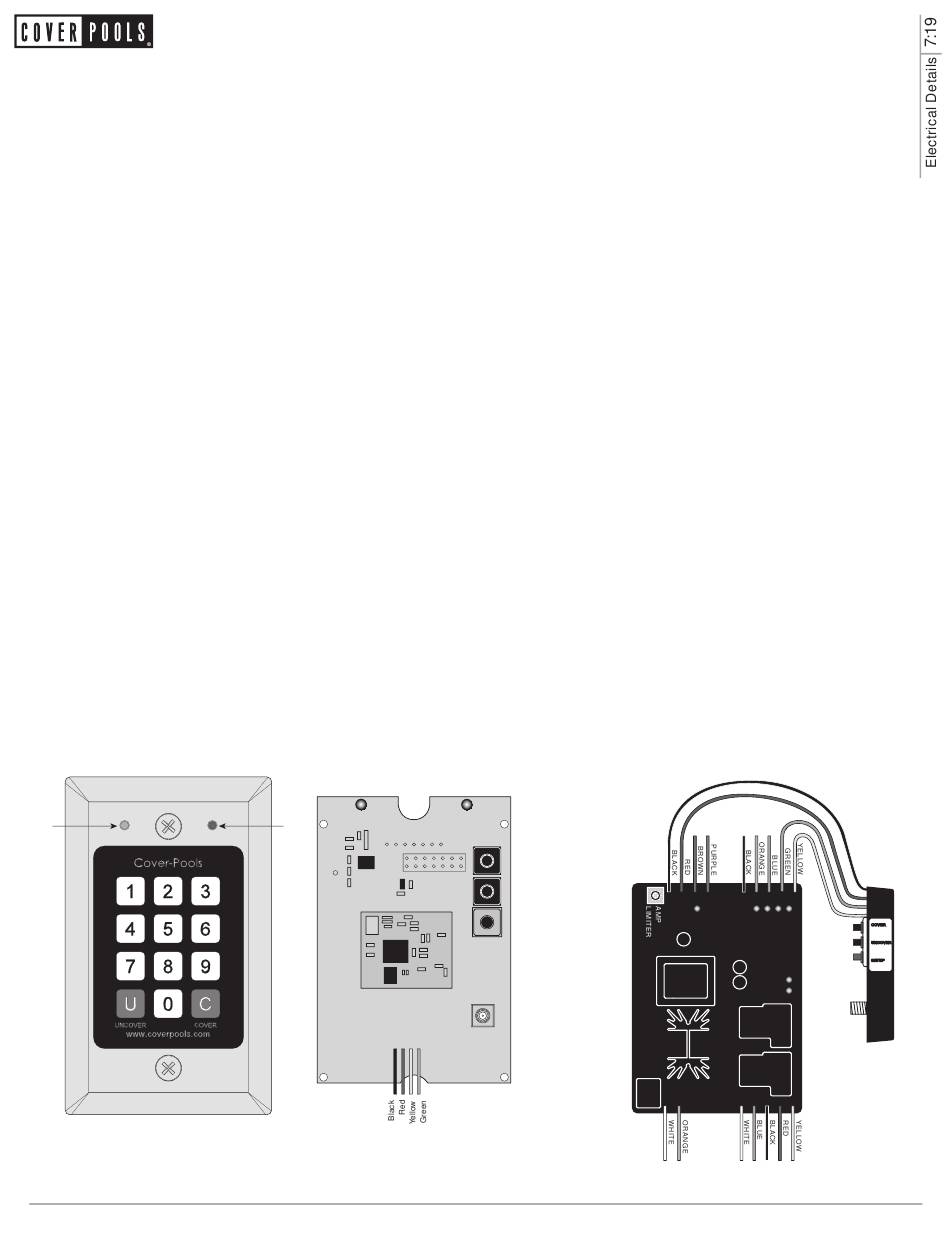

CoverLink Control Pad and CoverLink Receiver
The CoverLink Control system is factory programmed and ready for use.
THE CONTROL PAD MUST BE MOUNTED IN FULL VIEW OF THE POOL COVER.
Control Pad features:
•
Up to 3 separate Control Pads can operate the same pool cover.
Up to 4 unique 4 digit PINs can control access to the pool cover.
•
Control Pads can be setup in different locations around the pool.
•
A Master PIN that is stored in memory location 1 (Factory Default Master PIN: 1583).
•
Additional PINs can be stored in memory locations 2, 3 and 4.
•
(The pool owner should keep a record of PIN to memory location, for reference).
A unique signal that is sent from the Control Pad and stored by the Receiver when linked.
•
Each Control Pad must be linked to the Receiver and set to:
•
»
Receiver features:
3 control buttons:
•
»
Uncover
»
Cover
»
Setup
Typically the Receiver and Auto Shutoff board are located in an enclosure by the pool cover
•
electric motor.
CoverLink Control Pad
Green
LED
Coverlink™ Wireless Control
Operation and Programming
The same channel number and the same network ID number
32 usable Channels:
•
»
CoverLink Receiver
Red LED
Red
LED
Instructions
•
00 - 31
Green LED
Cover
UnCover
Setup
Antenna Wire
Connection
1 of 7
1 of 7
100 Network ID numbers:
00 - 99
»
Auto Shutoff to CoverLink Receiver
(LOW VOLTAGE WIRES)
AUTO SHUTOFF
AMP LIMIT
(HIGH VOLTAGE WIRES)
600568 Rel-0006
600568 Rel-0006
Cover
Uncover
Setup
Green
LED's
©Cover-Pools Inc.
Advertisement
Table of Contents
Summary of Contents for Cover Pools Coverlink Wireless Control
- Page 1 1-800-447-2838 Operation and Programming The CoverLink Wireless Control system controls access to pool cover operation. The CoverLink Wireless Control uses a Personal Identification Number (PIN) in place of a Key. Entering a valid PIN into the Control Pad allows access to the cover and uncover operation for the pool cover.
- Page 2 1. NORMAL OPERATION 1.1 Normal use: Control Pad PIN entry controls access to the cover and uncover operation for the pool cover. After PIN entry, press & hold 'C' or 'U' within 20 seconds or system will time-out and PIN re-entry is required. 1.1.1 Enter 4 digit PIN: 1583 (or valid PIN) Red LED will flash as each button is pressed.
- Page 3 3. DELETE PIN 3.1. Delete PIN (except master): To erase one PIN at a time from the Receiver follow this process. Buttons must be pressed within 20 seconds of each other or Programming access will time-out. 3.1.1. Enter '1583' (or current Master PIN) a.
- Page 4 Prior to programming the CoverLink System complete the following steps at the Autoshut Off Board and Coverlink Receiver: Uncover and cover the pool completely by pushing the buttons on the CoverLink Receiver located in the Autoshut Off Box as shown on page 1 in illustration CoverLink Receiver. If the operation of the cover is sluggish or stopping adjust the "amp limiter located on the Autoshut Off Board as described in document #600356 WIRING AUTOSHUTOFF AMP LIMIT BRD-ACCB-AMP LMT LED FUNC.
- Page 5 Coverlink™ Wireless Control Troubleshoot Guide TROUBLESHOOT gUIDE PROBLEM SOLUTION Remove Control Pad faceplate. LEDs on Control Pad do not light when Remove batteries from battery holder. buttons are pressed. Clean battery contacts. Install new batteries in battery holder. Reinstall Control Pad faceplate. Did not fix problem.
- Page 6 Coverlink™ Wireless Control Troubleshoot Guide Qualified service personnel only Verify that the Auto-shutoff board is working properly prior to troubleshooting the CoverLink system. PROBLEM SOLUTION Auto-shutoff Verification Cover system does not operate or Step 1. Check for secure wiring connections at the Circuit Breaker, operates intermittently.
- Page 7 Coverlink™ Wireless Control Troubleshoot Guide Qualified service personnel only PROBLEM SOLUTION Troubleshoot CoverLink Step 1. Reboot the receiver: Turn the system power off to the receiver and auto-shutoff board, leave it off for 30 seconds, then turn the system power The CoverLink system does not back on.
