Summary of Contents for ShoreStation ShoreScreen CS270-102-7B

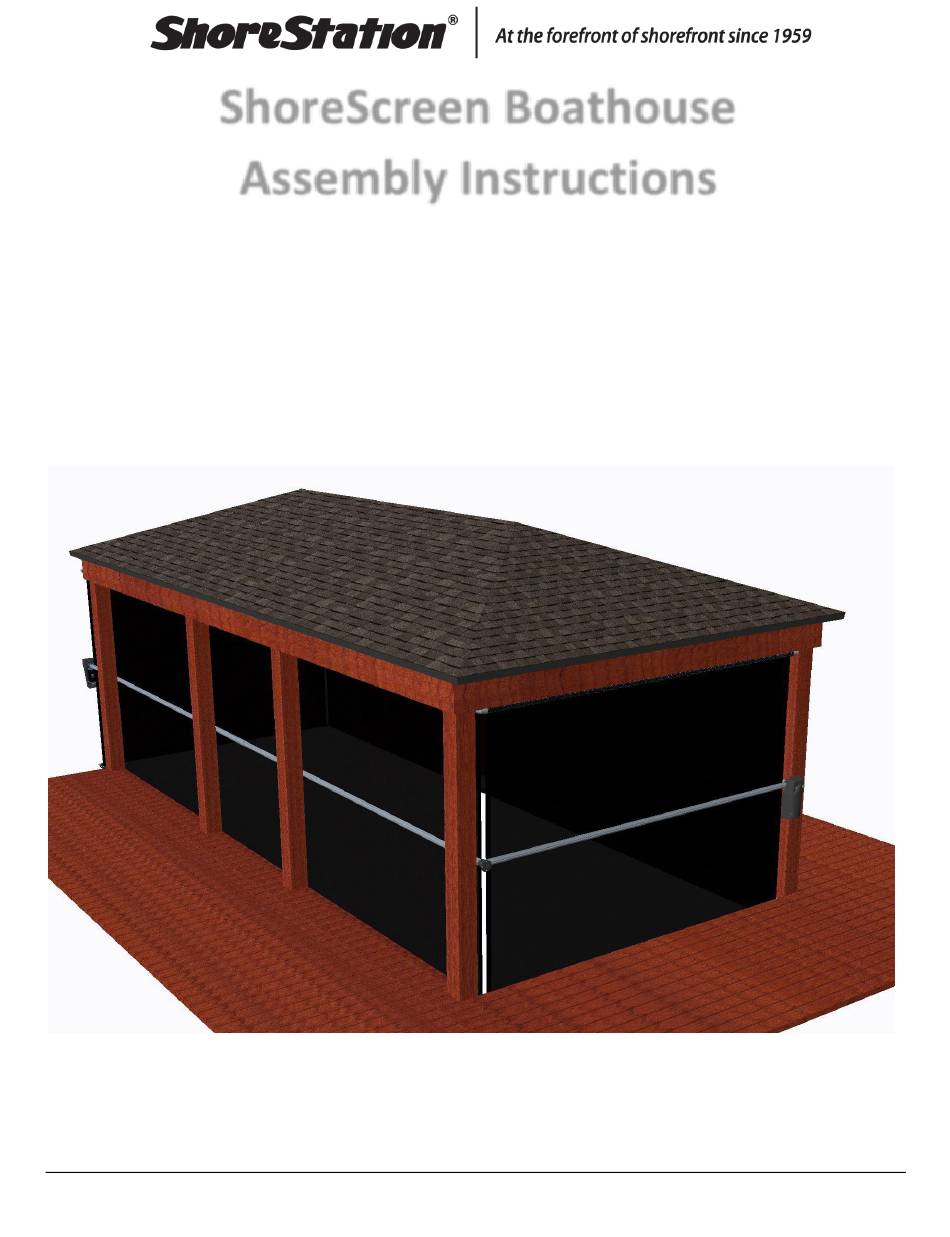

- Page 1 ShoreScreen Boathouse Assembly Instructions Retractable Canopy Side Curtain CS270-102-7B CS270-114-7B CS294-102-7B CS294-114-7B CS294-126-7B CS318-114-7B CS318-126-7B CS342-114-7B CS342-126-7B CS390-126-7B CS414-138-7B CS462-138-7B Document Number: 0004593 Rev: 1 Page 1...
-
Page 2: Introduction
The assembly process explained in this document should be performed by a qualified ShoreStation technician who understands the proper techniques and applications of the equipment used during the assembly process. -
Page 3: Table Of Contents
The system should only be run if the operator has clear vision of the lift equipment and its surrounding location. Do not modify the equipment unless you have received direct written approval from the manufacturer (ShoreStation). Document Number: 0004593... -
Page 4: Preparation
Preparation Assembling the curtain takes at least two people and will require lifting and attaching components to the boathouse, but should not affect the integrity of the structure. Tools Required: SAE and Metric Hex Keys (Allen Wrenches) SAE Sockets and Wrenches ... - Page 5 3 – Connect Tube Splices Use a #3 square bit to drill the self-tap screws through the side tubes and splice as shown. There is a bundle of side tubes and a bundle of end tubes, be sure to use the side tubes. Long tubes Tube splice 4 –...
- Page 6 Make sure the plastic keder strip is facing up and is toward the outside of the boathouse as shown below. Inside of boathouse Outside of boathouse Curtain Keder strip 6 – Slide Tubes into Curtain Slide the connected side tubes into the bottom of the side curtain and the end tubes into the bottom of the end curtains as shown.
- Page 7 8 – Slide on the Roll Tubes Slide the side roll tubes onto the keder strip on the side curtains. 9 – Connect the Roll Tubes Use the 1-1/4” machine screws to join the side roll tubes as shown. 10 – Connect the End Curtains to the Side Curtains Slide the corner splices into the top on both sides of the end curtain tubes.
- Page 8 Then, slide the top corner splices into the side curtain top tubes. You may have to pull out the pin and pull down on the side curtain tube as you insert the corner splice. (Push pin back into curtain clamp) 11 –...
- Page 9 13 – Install Idler Corners Slide the idler corner shafts into the roll tubes of the side curtain and end curtain. Line up the holes, insert the 1-1/4” machine screws, and tighten (as shown). Do the same on the opposite corner. Side curtain curtain...
- Page 10 Slide the corner splice into the lower tube of the side curtain and end curtain on all corners. Adjust as needed, match the corner above, and self-tap the screws through the curtain as shown. 15 – Splice Cover Snap on the plastic splice cover to the roll tube. 16 –...
- Page 11 17 – Control Box with Lockout The toggle switch with key switch and 35’ cord unit to the post on the dock side of the boathouse. The cord will be routed thru the boathouse roof. 18 – Electrical Connection Callouts Document Number: 0004593 Rev: 1 Page 11...
- Page 12 Toggle switch Backwind extension connect harness (only for models previous of 8-29-2016) Upper limit Power connect switch connect from toggle box 19 – Motor Connection Callouts Motor- Direct the extension harnesses down the boathouse roof toward the motor corners and secure them along the way.
- Page 13 20 – Motor Connection Callouts Make sure all the curtains are centered. In the idler corners only, self-tap a screw through the Keder strip and into the roll tube (as shown), but stop when it hits the idler shaft. Self-tap screws 21 –...
-
Page 14: Pairing The Shorescreen Wireless Controls With Your Boat Lift
NOTE: The ShoreScreen wireless controls are compatible with ShoreStation FlexPower Hydraulic and FlexPower Electric (EDS) control system. The controls will not work with other brands or older ShoreStation control systems. If your boat lift’s remotes do not look similar the remotes provided, then the systems are not compatible. -
Page 15: Pairing Existing Flexpower Controls
Pairing Existing FlexPower Controls This process pairs the controls that came with your ShoreStation FlexPower Hydraulic or Electric boat lift. In this case, we will unlock the Mode 2 of your boat lift’s wireless controllers and initiate the pairing process on the ShoreScreen’s controller (Figure 3). - Page 16 5 seconds. If this happens, you will need to repeat this step. Unlock Mode #2 ShoreStation FlexPower control systems reserve Mode #2 for the ShoreScreen Power Curtain operation. With the remote in the Mode Unlock State, move through the modes by pressing ON or OFF to enable or disable the indicated mode.
-
Page 17: Troubleshooting
Repeat the pairing steps with the ShoreScreen controller and ensure boat lift and the you are in Mode #2 when pairing the remote transmitter. ShoreScreen. If the problems stated above do not describe the issues you are experiencing, contact ShoreStation at (800) 859- 3028. Document Number: 0004593 Rev: 1...
